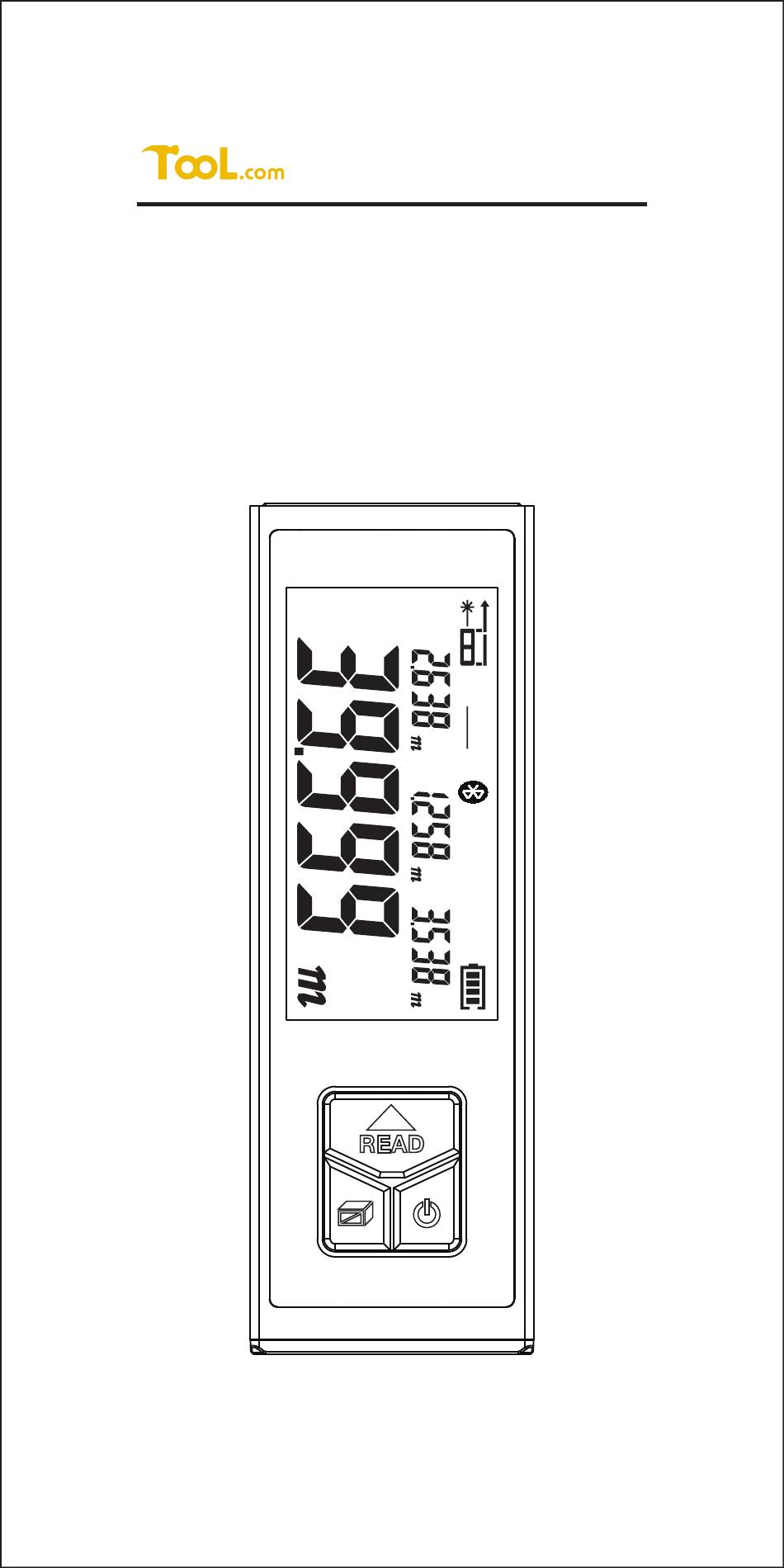

- Page 1 Bluetooth Laser Distance Meter User Manual...
-
Page 2: Safety Regulation
Product Execution: Safety Regulation Before using the instrument for the first time, please read the safety terms and operating instructions carefully. Please read all operating instructions and safety regulations in this manual carefully before using the instrument. Failure to use the instrument in accordance with the guidelines in this manual may result in damage to the instrument, affect the accuracy of the measurements, or cause personal injury to the user or a... -
Page 3: Li-Ion Battery

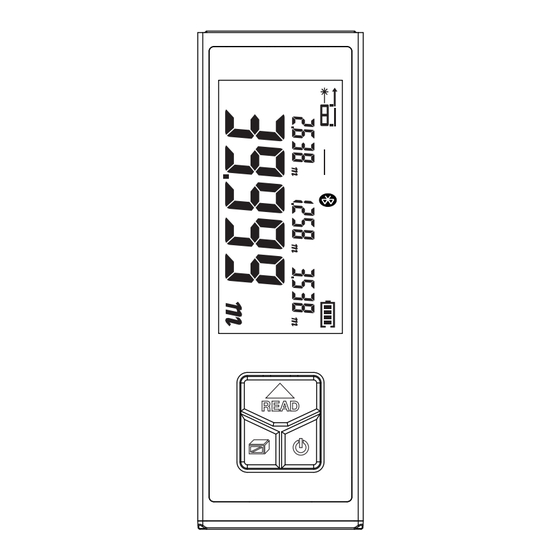

Product Function Indication main display area maximum values laser indication measurement reference bluetooth area/volume/triangle minimum value battery indicator power on/ measurement keys power off/clear key area/volume/triangle mode keys Li-ion Battery Built-in 3.7V 850mAh lithium battery power supply, non-removable. The instrument comes with a charging circuit with clear undervoltage indication and charging indication. - Page 4 Battery Maintenance When not in use for a long time, fully charge the product first and recharge it every six months to avoid battery discharge damage. Starting the Instrument, Function Setting Starting Up and Shutting Down the Instrument button，for more than 2 seconds, In the off state, long press start the instrument and enter the standby mode.
- Page 5 Backlight On/Off The backlight of this instrument is automatically switched on and off. When the instrument is keyed into any key, the backlight will be continuously turned on for 15 seconds, and after 15 seconds the instrument will automatically turn off the backlight without operation to save energy.
- Page 6 At this point, the user can use the instrument's error according to the key adjust this value, the adjustment range is -9~9mm. e.g.: the actual distance is 3.780m. If the measured value of this machine is 3.778m, which is 2mm smaller than the actual value, you can enter the calibration mode, Use the key to adjust the calibration value by 2 mm from...
- Page 7 Distance Measurement\Area\Volume \Collinear Indirect Measurement Single Measurement Press the READ key in the standby mode, the instrument laser is emitted and the measurement point is locked. Press the READ key again to measure the single distance data, and the measurement result is shown in the main display area.
- Page 8 Volume Measurement Short press the key twice, the system enters the volume measurement state, the instrument enters the volume state, a cube will flash on the screen. Follow the prompts to complete the following actions. Press READ for the first edge measurement (length). Press the READ key to measure the second edge (width).
- Page 9 The instrument will automatically calculate the total area of the wall. Area sum = height * (width 1 + width 2) and so on, press the READ measurement key to measure the width n of the wall n; Area sum = height x (width 1 + width 2 + ..+ width n). During the measurement, you can also type the power key to clear this measurement and re-measure.
- Page 10 Measures the two right-angled sides of a right triangle, and indirectly measures the length of the hypotenuse. Press key five times, the screen display: the right-angle edge flashes, according to the screen prompts. Press the READ key to measure the length of a dotted line right-angled edge (a).
- Page 11 Bluetooth Function (only models with Bluetooth) The Bluetooth function is factory set to be turned on by default, and is always on, and cannot be turned off. There is a “ ” prompt on the screen. We provide professional APP to facilitate the data interaction between the rangefinder and smart terminals such as cell phones.
-
Page 12: Technical Parameters
Technical Parameters Model SW-B40/50/60 SW-BT40/50/60 Measurement Range 40m/50m/60m 40m/50m/60m Measurement Accuracy ±(2mm+d*one ten thousandth)* Minimum Display Units 0.001m Continuous Measurement √ √ Area Volume Measurement Indirect Measurement of √ Hook and Loop lf-calibration Function √ Max/Min √ Sound On/Off √... - Page 13 Instrument Daily Maintenance It is prohibited to store the instrument in a high temperature and high humidity environment for a long time. When the instrument is not used for a long time, please place the instrument in the randomized instrument cover and store it in a cool and dry place.
- Page 14 Packing List When purchasing the instrument, please check carefully whether all accessories of the instrument are complete according to the following list? Quantities Projects Name Unit Note Host desktop built-in non- Li-ion Battery piece removable USB Type-C Cable strip Manual book unit...
