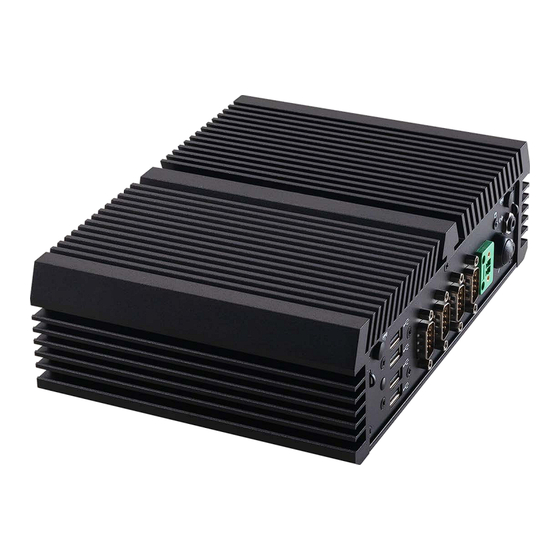

MSI MS-C906 User Manual

Industrial data machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MS-C906
Industrial Data Machine
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-C906 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MSI MS-C906

Summary of Contents for MSI MS-C906

  • Page 1 MS-C906 Industrial Data Machine User Guide...

  • Page 2: Table Of Contents

    Contents Safety Information ......................4 Regulatory Notices ....................... 5 Specifications ....................... 8 System Overview ......................11 ME Overview........................ 15 System Dimensions ....................15 Motherboard Overview ....................16 Motherboard Jumpers ....................17 Getting Started ......................19 Safety Precautions ....................19 Removing System Cover .................... 20 Installing Memory Module ..................
  • Page 3 Main ..........................33 Advanced ........................34 Boot..........................41 Security ........................42 Chipset ......................... 56 Power .......................... 57 Save & Exit ........................59 GPIO WDT SMBus Programming ................60 Abstract ......................... 60 General Purpose IO ....................61 Watchdog Timer ....................63 SMBus Access .......................

  • Page 4: Safety Information

    Safety Information ∙ The components included in this package are prone to damage from electrostatic discharge (ESD). Please adhere to the following instructions to ensure successful computer assembly. ∙ Ensure that all components are securely connected. Loose connections may cause the computer to not recognize a component or fail to start.

  • Page 5: Regulatory Notices

    Regulatory Notices CE Conformity Hereby, Micro-Star International CO., LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive. FCC-B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 6 Chemical Substances Information In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at: https://csr.msi.com/global/index Battery Information Please take special precautions if this product comes with a battery.
  • Page 7 MSI products. Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners. No warranty as to accuracy or completeness is expressed or implied.

  • Page 8: Specifications

    Specifications Model MS-C906 ∙ 13th Gen Intel® Core™ Rapter Lake-P U-Series Mobile Processors (TDP up to 15W) ∙ Embedded SKUs - i5-1345UE Processor - i3-1315UE (Non-vPro®) ∙ Industrial SKUs - i5-1345URE - i3-1315URE (Non-vPro®) Within processor Chipset ∙ 6 x Openings reserved for antennas...
  • Page 9 Model MS-C906 ∙ 2 x Openings reserved for antennas ∙ 1 x Line-Out jack ∙ 1 x Microphone jack ∙ 4 x RS232/ 422/ 485 Serial ports (COM1~4) - 0V/ 5V/ 12V, 0.5A each port Front Panel I/O (Power selection by Jumper, default: 5V) ∙...
  • Page 10 Model MS-C906 ∙ Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2) OS Support ∙ Windows 11 IoT Enterprise (64-bit, 23H2, pre-scan) ∙ Linux (support by request) Regulatory FCC Class B / CE / RCM / BSMI / VCCI / UKCA / IC / RoHS Compliant /...

  • Page 11: System Overview

    System Overview Front Panel I/O Rear Panel I/O System Overview...
  • Page 12 Wi-Fi Antenna Connector (Openings reserved for antennas) These connectors allow you to connect sn external antenna for wireless communication. User may find two on the front side and 4 on the rear side of the system. USB 2.0 Port This connector is provided for USB peripheral devices. (Speed up to 480 Mbps) ⚠...
  • Page 13 Extend Switch Connector This connector is provided for remote power button control. Power Button/ LED Press the button to turn the system on or off. LED Status Description ACPI S4/ S5/ Deep S5, Power Off ACPI S3 Blinking ACPI S0 Green Mic-In Jack This connector is provided for microphones.
  • Page 14 HDMI™ Connector Supports as specified in HDMI™ 2.0b. 4096x2304 @60Hz DC Power Jack Power supplied through this jack supplies power to the system. Phoenix DC Power Connector The system is designed with a Phoenix connector that carries DC input. ⚠ Important Your power source can either be connected to the Power Jack or the Phoenix DC Power Connector.

  • Page 15: Me Overview

    ME Overview System Dimensions 215.00 65.60 167.20 155.00 ME Overview...

  • Page 16: Motherboard Overview

    Motherboard Overview Rear I/O Panel JCL_CMOS1 SATA1 JAUD1 JME_DIS1 SATAPWR1 JCOMP1 JBAT1 SYSFAN1 JCOM1_2 JINVT1 JCOM3_4 DIMM1 JCOMP3 JBF1 JGPIO1 JLVDS1_EDP1 JATX1 JPWR1 JVDD1 M2_E1 JUSB1 JFP1 M2_M1 JUSB2 M2_B1 USIM1 Motherboard Overview...

  • Page 17: Motherboard Jumpers

    Motherboard Jumpers ⚠ Important Avoid adjusting jumpers when the system is on; it will damage the motherboard. JCL_CMOS1 JME_DIS1 JCOMP1 JCOMP3 JBF1 JATX1 JVDD1 Jumper Name Default Setting Description CMOS Clear Jumper JCL_CMOS1 1-2: Normal (Default) 2-3: Clear CMOS ME Jumper JME_DIS1 1-2: Normal (Default) 2-3: ME disable...
  • Page 18 SMbus Power Select Jumper JBF1 1-2: Normal (Default) 2-3: Flash JCOM1_2 Power Select Jumper JCOMP1 1-2: VCC5 (Default) 2-3: +12V JCOM3_4 Power Select Jumper JCOMP3 1-2: VCC5 (Default) 2-3: +12V Motherboard Jumpers...

  • Page 19: Getting Started

    Getting Started ⚠ Important All information is subject to change without prior notice. ∙ ∙ The system photos are provided for demonstration of system assembly only. The components of your system may differ based on the model you have purchased. Necessary Tools Screwdriver Pliers...

  • Page 20: Removing System Cover

    Removing System Cover ⚠ Important Before you remove or install any components, make sure the system is not turned on or connected to the AC power. 1. Place the system on a flat and steady surface. Locate and remove the screw on the back side.

  • Page 21: Installing Memory Module

    Installing Memory Module 1. Locate the SO-DIMM slot. Align the notch on the DIMM with the key on the slot and insert the DIMM into the slot. 2. Push the DIMM gently downwards until the slot levers click and lock the DIMM in place.

  • Page 22: Installing M.2 Ssd (M-Key)

    Installing M.2 SSD (M-Key) M2_M1 1. Loosen the M.2 screw from the motherboard. 2. Insert your M.2 SSD into the M.2 slot at a 30-degree angle. 30° 3. Secure the M.2 SSD in place with the supplied M.2 screw. Installing M.2 SSD (M-Key)

  • Page 23: Installing M.2 Wi-Fi Card (E-Key)

    Installing M.2 Wi-Fi Card (E-Key) M2_E1 1. Loosen the M.2 screw from the motherboard. 2. Insert your M.2 Wi-Fi card into the M.2 slot at a 30-degree angle. 3. Secure the M.2 Wi-Fi card in place with the supplied M.2 screw.

  • Page 24: Installing M.2 Expansion Card (B-Key)

    Installing M.2 Expansion Card (B-Key) M2_B1 1. Loosen the M.2 screw from the motherboard. 2. Insert your M.2 SSD into the M.2 slot at a 30-degree angle. 30° 3. Secure the M.2 SSD in place with the supplied M.2 screw. ⚠...

  • Page 25: Installing 2.5" Hdd/ Ssd (9.5Mm)

    Installing 2.5” HDD/ SSD (9.5mm) 1. Flip over the system cover and locate the HDD/SSD bracket. Remove the protective film to uncover the thermal pad. 2. To install, first insert the HDD/SSD into the bracket with screw holes aligned. Then tighten the screws to fix the HDD/SSD to the bracket. ⚠...
  • Page 26 3. Align the SATA data & power connector and connect to the HDD/SSD. 4. Connect the SATA signal & power connector to the motherboard to complete the installation. Follow the above procedures in reverse order to replace the HDD/SSD if needed. ∙...

  • Page 27: Installing Wall Mount Brackets

    Installing Wall Mount Brackets 1. Flip over the system and locate the bracket screw holes. 2. Place the brackets and rubber pads along the sides with screw holes aligned. 3. Fasten the screws to fix the brackets. Installing Wall Mount Brackets...

  • Page 28: Installing Din Rail Clips

    Installing Din Rail Clips 1. Attach the DIN rail clips to the wall mount brackets with the hooks aligned. 2. Insert screws through the wall mount brackets into the DIN rail clips and tighten until secure. Installing Din Rail Clips...

  • Page 29: Installing Vesa Mount Plate (Optional)

    Installing VESA Mount Plate (Optional) 1. Fasten the VESA mount plate to the monitor with the supplied screws. 2. Mount the system onto the VESA mount plate. 3. Tighten the thumbscrew at the bottom of the VESA mount plate to secure the system.

  • Page 30: Bios Setup

    BIOS Setup This chapter provides information on the BIOS Setup program and allows users to configure the system for optimal use. Users may need to run the Setup program when: ∙ An error message appears on the screen at system startup and requests users to run SETUP.
  • Page 31 Control Keys ← → Select Screen ↑ ↓ Select Item Enter Select Change Value Exit General Help Previous Values Optimized Defaults Save & Reset* Screenshot capture Scroll help area upwards <K> <M> Scroll help area downwards * When you press <F10>, a confirmation window appears and it provides the modification information.

  • Page 32: The Menu Bar

    The Menu Bar ▶ Main Use this menu for basic system configurations, such as time, date, etc. ▶ Advanced Use this menu to set up the items of special enhanced features. ▶ Boot Use this menu to specify the priority of boot devices. ▶...

  • Page 33: Main

    Main ▶ System Date This setting allows you to set the system date. Use <Tab> key to switch between date elements. Format: <Day> <Month> <Date> <Year>. ▶ System Time This setting allows you to set the system time. Use <Tab> key to switch between time elements.

  • Page 34: Advanced

    Advanced ▶ Full Screen Logo Display This BIOS feature determines if the BIOS should hide the normal POST messages with the motherboard or system manufacturer’s full-screen logo. [Enabled] BIOS will display the full-screen logo during the boot-up sequence, hiding normal POST messages. [Disabled] BIOS will display the normal POST messages, instead of the full- screen logo.
  • Page 35 ▶ CPU Configuration ▶ Intel Virtualization Technology Enables or disables Intel Virtualization technology. [Enabled] Enables Intel Virtualization technology and allows a platform to run multiple operating systems in independent partitions. The system can function as multiple systems virtually. [Disabled] Disables this function. ▶...
  • Page 36 ▶ Intel(R) SpeedStep(TM) Enhanced Intel SpeedStep® Technology enables the OS to control and activate performance states (P-States) of the processor. [Enabled] When enabled, Intel SpeedStep® technology is activated. This technology allows the processor to manage its power consumption via performance state (P-State) transitions. [Disabled] Disables this function.
  • Page 37 ▶ Super IO Configuration ▶ Serial Port 1/ 2/ 3/ 4 This setting enables or disables the specified serial port. » Change Settings This setting is used to change the address & IRQ settings of the specified serial port. » Mode Select Select an operation mode for Serial Port 1/ 2/ 3/ 4.
  • Page 38 ▶ H/W Monitor (PC Health Status) These items display the current status of all monitored hardware devices/ components such as voltages, temperatures and all fans’ speeds. ▶ Thermal Shutdown This setting determines the behavior of the system when the CPU temperature reaches a predefined threshold.
  • Page 39 ▶ PCI/PCIE Device Configuration ▶ Audio Controller This setting enables or disables the detection of the onboard audio controller. ▶ Network Stack Configuration This menu provides Network Stack settings for users to enable network boot (PXE) from BIOS. ▶ Network Stack This menu provides Network Stack settings for users to enable network boot (PXE) from BIOS.
  • Page 40 ▶ GPIO Group Configuration ▶ GPO0 ~ GPO7 These settings control the operation mode of the specified GPIO. ▶ PCIE ASPM settings This menu provide settings for PCIe ASPM (Active State Power Management) level for different installed devices. ▶ M2_B1/ M2_E1/ M2_M1 Sets PCI Express ASPM (Active State Power Management) state for power saving.

  • Page 41: Boot

    Boot ▶ Boot Option #1-2 This setting allows users to set the sequence of boot devices where BIOS attempts to load the disk operating system. Boot...

  • Page 42: Security

    Security ▶ Administrator Password Administrator Password controls access to the BIOS Setup utility. ▶ User Password User Password controls access to the system at boot and to the BIOS Setup utility. Security...
  • Page 43 ▶ PCH-FW Configuration This menu allows you to configure settings related to the PCH firmware. Firmware Information These settings show the ME Firmware Version ME Firmware Status 1 firmware information of ME Firmware Mode ME Firmware Status 2 the Intel ME (Management Engine).
  • Page 44 ▶ Firmware Update Configuration This menu will display when ME State is enabled. » ME FW Image Re-Flash Enables or disables the ME Firmware Image Re-flashing. » Local FW Update Enables or disables the capability to perform a firmware update of the ME locally. ▶...
  • Page 45 ▶ ME Debug Configuration This menu allows you to configure debug-related options for the Intel® Management Engine (ME). This menu will display when ME State is enabled. » HECI Timeouts This setting enables/ disables the HECI (Host Embedded Controller Interface) send/ receive timeouts.
  • Page 46 ▶ Anti-Rollback SVN Configuration » Automatic HW-Enforced Anti-Rollback SVN Setting this item enables will automatically activate the hardware-enforced anti- rollback protection based on the Secure Version Number (SVN). Once enabled, the hardware will enforce that only firmware updates with an SVN equal to or higher than the current SVN can be installed.
  • Page 47 ▶ AMT Configuration Intel® Active Management Technology (Intel® AMT) is hardware-based technology for remotely managing and securing PCs out-of-band (OOB). ▶ USB Provisioning of AMT Enables or disables the ability to provision AMT using a USB device. ▶ Activate Remote Assistance Process Enables or disables remote assistance sessions to be initiated on systems with AMT support.
  • Page 48 ▶ ASF Configuration » PET Progress Enables or disable the this item to receive PET Events. » WatchDog Enables or disable the watchdog timer. » OS Timer This item displays OS Timer. » BIOS Timer This item displays BIOS Timer. »...
  • Page 49 ▶ One Click Recovery (OCR) Configuration » OCR Https Boot Enables or disables the use of HTTPS (Hypertext Transfer Protocol Secure) for the OCR boot process. When enabled, the OCR process will utilize HTTPS for enhanced security during the process of booting up the system. »...
  • Page 50 ▶ Trusted Computing ▶ Security Device Support This item enables or disables BIOS support for security device. When set to [Disable], the OS will not show security device. ▶ SHA256/ SHA384 PCR Bank These settings enables or disables the SHA256 PCR Bank and SHA384 PCR Bank. ▶...
  • Page 51 ▶ Serial Port Console Redirection ▶ Console Redirection Console Redirection operates in host systems that do not have a monitor and keyboard attached. This setting enables or disables the operation of console redirection. When set to [Enabled], BIOS redirects and sends all contents that should be displayed on the screen to the serial COM port for display on the terminal screen.
  • Page 52 ▶ Console Redirection Settings (COM1) » Terminal Type To operate the system’s console redirection, you need a terminal supporting ANSI terminal protocol and a RS-232 null modem cable connected between the host system and terminal(s). You can select emulation for the terminal from this setting. [ANSI] Extended ASCII character set.
  • Page 53 ▶ Secure Boot ▶ Secure Boot Secure Boot function can be enabled only when the Platform Key (PK) is enrolled and running accordingly. ▶ Secure Boot Mode Selects the secure boot mode. This item appears when Secure Boot is enabled. [Standard] The system will automatically load the secure keys from BIOS.
  • Page 54 ▶ Key Management Press Enter key to enter the sub-menu. Manage the secure boot keys. This item appears when “Secure Boot Mode” sets to [Custom]. » Platform Key (PK): The Platform Key (PK) can protect the firmware from any un-authenticated changes.
  • Page 55 » Append Key Loads an additional db from storage devices to your system. » Delete Key Deletes the db from your system. » Forbidden Signatures (dbx): Forbidden Signatures (dbx) lists the forbidden signatures that are not trusted and cannot be loaded. »...

  • Page 56: Chipset

    Chipset ▶ DVMT Total Gfx Mem This setting specifies the total graphics memory size for Dynamic Video Memory Technology (DVMT). Chipset...

  • Page 57: Power

    Power ▶ Restore AC Power Loss This setting specifies whether your system will reboot after a power failure or interrupt occurs. Available settings are: [Power Off] Leaves the computer in the power off state. [Power On] Leaves the computer in the power on state. [Last State] Restores the system to the previous status before power failure or interrupt occurred.
  • Page 58 ▶ LAN/ PCIE PME Enables or disables the system to be awakened from the power saving modes when activity or input signal of Intel LAN device and onboard PCIE PME is detected. ▶ RTC When [Enabled], your can set the date and time at which the RTC (real-time clock) alarm awakens the system from suspend mode.

  • Page 59: Save & Exit

    Save & Exit ▶ Save Changes and Reset Save changes to CMOS and reset the system. ▶ Discard Changes and Exit Abandon all changes and exit the Setup Utility. ▶ Discard Changes Abandon all changes. ▶ Load Optimized Defaults Use this menu to load the default values set by the motherboard manufacturer specifically for optimal performance of the motherboard.

  • Page 60: Gpio Wdt Smbus Programming

    GPIO WDT SMBus Programming This chapter provides WDT (Watch Dog Timer), GPIO (General Purpose Input/ Output) and SMBus Access programming guide. Abstract In this section, code examples based on C programming language provided for customer interest. Inportb, Outportb, Inportl and Outportl are basic functions used for access IO ports and defined as following.

  • Page 61: General Purpose Io

    3. Write the value back to GPO port. Example: Set N_GPO0 output “high” val =SMBus_ReadByte (0x6E, 0x11); // Read value from N_GPO0 port through SMBus. MSI Industrial Platform Computing val = val | (1<<4); // Set N_GPO0address (bit 4) to 1 (output “high”). SMBus_WriteByte (0x6E, 0x11, val);...
  • Page 62 Example: Set N_GPO1 output “low” val = SMBus_ReadByte (0x6E, 0x11); // Read value from N_GPO1 port through SMBus.. // Set N_GPO1 address (bit 5) to 0 (output “low”). val = val & (~(1<<5)); SMBus_WriteByte (0x6E, 0x11, val); // Write back to N_GPO1 port through SMBus. Read input value from GPI: 1.

  • Page 63: Watchdog Timer

    // Write back WDT setting Set WDT Time Outportb (WDT_BASE + 0x06, Time); // Write WDT time, value 1 to 255. MSI Industrial Platform Computing Enable WDT val = Inportb (WDT_BASE + 0x0A); // Read current WDT_PME setting val = val | 0x01;...

  • Page 64: Smbus Access

    The base address of SMBus must know before access. The relevant bus and device information are as following. #define IO_SC 0xCF8 #define IO_DA 0xCFC #define PCIBASEADDRESS 0x80000000 MSI Industrial Platform Computing #define PCI_BUS_NUM #define PCI_DEV_NUM #define PCI_FUN_NUM Get SMBus Base Address int SMBUS_BASE; int DATA_ADDR = PCIBASEADDRESS + (PCI_BUS_NUM<<16) + (PCI_DEV_NUM<<11) + (PCI_FUN_NUM<<8);...
