Brunner Anliker XXL Operating Manual

Vegetable cutter
Hide thumbs Also See for XXL:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Manual
Vegetable Cutter
ANLIKER XXL
Translation of the German Original

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XXL and is the answer not in the manual?

Questions and answers

Related Manuals for Brunner Anliker XXL

Summary of Contents for Brunner Anliker XXL

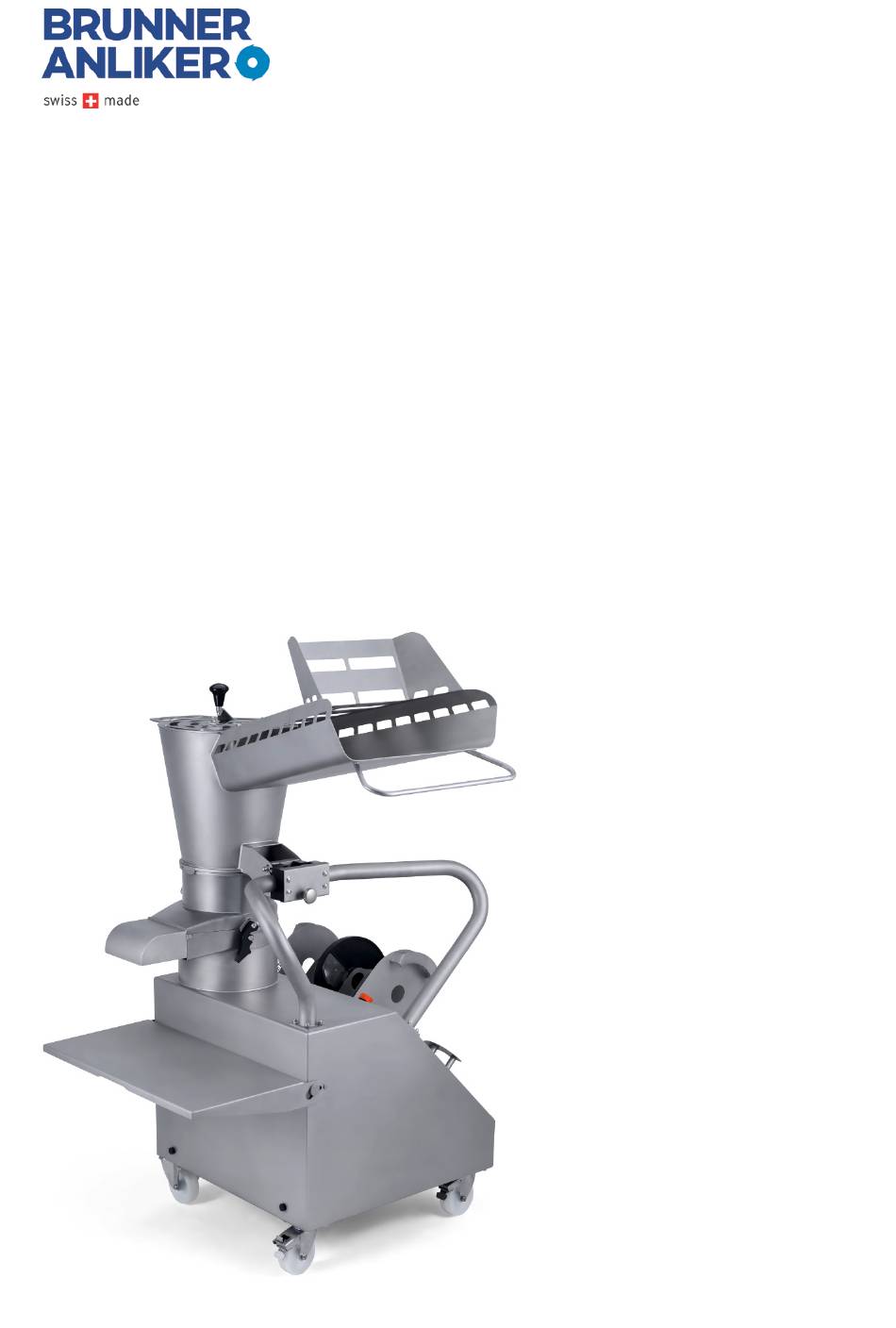

  • Page 1 Operating Manual Vegetable Cutter ANLIKER XXL Translation of the German Original...

  • Page 2: Table Of Contents

    Installation of the attachment piece ..................18 Correct insertion of the cutting discs, grating discs and dicing inserts ........20 5.1.1 Preparation of the ANLIKER XXL for food processing ............... 20 5.1.2 Insertion of ejector or ejector disc ....................20 5.1.3 Inserting the cutting or grating disc ....................
  • Page 3 Spare Parts ........................30 Disposal ..........................30 Device transfer to third parties .................... 31 Technical Specifications ...................... 31 Warranty .......................... 31 Dimensional drawing of the ANLIKER XXL vegetable cutter ............. 32 CE Conformity Declaration ....................33 Generated: Reviewed: Revised: Status: 300 released...
  • Page 4 Fig. 29: Wall-mounted cutting disc holder ....................27 Fig. 30: Hooking up the cutting disc holder on the fastening elements on the machine......27 Fig. 31: Dimensional drawing of the ANLIKER XXL ..................32 Fig. 32: CE Conformity Declaration ....................... 33...

  • Page 5: Anliker Xxl Introduction

    1.1.2 Target group and mandatory reading The operating manual addresses all users of the ANLIKER XXL vegetable cutter. Mandatory reading All users are to read section 2 “Safety”, page 7, before they start working with the ANLIKER XXL vegetable cutter. Generated:...

  • Page 6: Warnings And Instructions For Usee

    We use abbreviations and easy to recognize symbols at the page margins only for measuring units and the above mentioned warning and usage symbols. (Examples: see “Warnings and instructions for use”, page 6). In this manual, the ANLIKER XXL vegetable cutter will also be referred to as “device”. Manufacturer address Brunner-Anliker AG Brunnergässli 1 - 5...

  • Page 7: Device Identification

    ANLIKER XXL vegetable cutter. Intended use The intended use of the ANLIKER XXL vegetable cutter is the cutting and slicing of different types of vegetables in the catering and food processing industry. With the various cutting discs, the vegetables can be cut into different shapes and sizes.

  • Page 8: General Safety Guidelines

    Such jobs need to be executed by persons qualified accordingly. • All those working with the ANLIKER XXL vegetable cutter must have been instructed on its use, read and understood the manufacturer’s operating manual. See also “User requirements”, page 8.

  • Page 9: Structure

    This chapter informs on the structure and accessories of the device. Structure of the basic unit The GSM ANLIKER XXL consists of a basic unit which rests on wheels, and a detachable top. Depending on the top, the device can be used for different jobs.

  • Page 10: Basic Unit With Funnel

    Basic unit with funnel Funnel and tray are attached to the support rail. The tray feeds the products directly into the machine where they are processed immediately. Fig. 3: Funnel attachment Item Item 1 Funnel lock 5 Fixed wheels 2 Funnel with tray 6 Folding table - here: table folded down 3 Protective grille 7 caster wheels with brake...

  • Page 11: Equipment

    The customer can configure the device with different cutting discs, grating discs and dicing inserts. The basic unit always comes with funnel attachment, operating manual, cleaning brush and micro- fuses. Fig. 4: ANLIKER XXL Fig. 5: Accessories kit? Fig. 6: Ejector Fig.

  • Page 12: Accessories

    Accessories The ANLIKER XXL can be equipped with an optional PRO attachment piece. Supplementary accessories plus a large variety of cutting and grating discs as well as disc holders can be ordered from your sales partner or directly at our webshop.

  • Page 13: Materials

    The ANLIKER XXL vegetable cutter has two fixed wheels and two caster wheels with brakes. Engage the caster wheel brake catches before carrying out any jobs on or with the device and release them only if the vegetable cutter needs to be moved.

  • Page 14: Weight Of The Anliker Xxl Vegetable Cutter

    Weight of the ANLIKER XXL vegetable cutter The vegetable cutter weighs 100 kg. NOTE Note • Check the consignment for completeness. Compare the contents with the delivery note. If components are missing, please contact your supplier. • Notify our after-sales service, the forwarder and the insurance agent immediately if the device is consigned damaged due to insufficient packaging or inadequate transport.

  • Page 15: Transport Of The Anliker Xxl Vegetable Cutter

    Transport of the ANLIKER XXL vegetable cutter The ANLIKER XXL stands on wheels and can so be easily transported from one place to another. Remember to open the caster wheel brakes to relocate the vegetable cutter. At its new place of use, secure stability by snapping in the brake catches.

  • Page 16: Start-Up

    HAZARD HAZARD! • Do not change or modify the ANLIKER XXL vegetable cutter or add any equipment which might impair the safety or function of the device Otherwise the device no longer complies with the CE standards. •...

  • Page 17: Storage

    Storage If the ANLIKER XXL vegetable cutter is not used for a longer period of time, observe the following conditions to keep it fully functional: • The storage place must be dry and clean. • The ANLIKER XXL vegetable cutter must not be exposed to extreme cold or heat.

  • Page 18: Installation Of The Attachment Piece

    Any already mounted attachment piece needs to be removed before a new one can be installed. Separate the device from the power supply. ANLIKER XXL attachment piece with hinge: push down the locking pin, insert the hinge until the pin moves out and locks in place.

  • Page 19: Fig. 14: Locking The Attachment Piece

    Close the attachment piece and lock with the locking lever. Fig. 14: Locking the attachment piece Fit the funnel into the holder rail and onto the attachment piece. Fig. 15: Mounting the funnel Fasten and lock the funnel on the holder rail Fig.

  • Page 20: Correct Insertion Of The Cutting Discs, Grating Discs And Dicing Inserts

    Correct insertion of the cutting discs, grating discs and dicing inserts 5.1.1 Preparation of the ANLIKER XXL for food processing Open the lock and swing the funnel open, open the locking lever and swing out the attachment piece. Fig. 19: Tilted funnel and attachment piece 5.1.2 Insertion of ejector or ejector disc...

  • Page 21: Closing The Attachment Piece

    Ensure locking! Fig. 22: Inserted screw blade 5.1.5 Closing the funnel Swing the funnel back in place and lock. Ensure its perfect fit. The ANLIKER XXL is now ready for operation. Fig. 23: Locked funnel Generated: Reviewed: Revised: Status: 300 released...

  • Page 22: Cutting Vegetables

    Cutting vegetables Place a suitable container (gastronorm container 1/1) on the folded down table fold up the table and collect the cut products directly in large food carts or basins.. Fig. 24: Food container on folded down table Switch on the device Fill the vegetables into the funnel Fig.

  • Page 23: Accessories Handling (Multifeeder)

    Accessories handling (Multifeeder) This insert (Multifeeder) allows the continuous infeed and cutting of long products, e.g. cucumbers. 5.3.1 Preparations for Multifeeder use First swing back the funnel, remove the screw blade and insert the required cutting disc. Then insert the Multifeeder. Fig.

  • Page 24: System Care „Cleaning Concept

    For cleaning, the user may dismantle the device only to the extent described in this section. Attachment piece and plunger can be removed without the use of tools. Cleaning the ANLIKER XXL vegetable cutter The outside of the device may be hosed down (splashwater). High-pressure cleaners must NOT be used.

  • Page 25: Cleaning The Cutting Discs, Grating Discs And Dicing Inserts (W)

    Cleaning the cutting discs, grating discs and dicing inserts (W) Use the nylon brush included in the consignment to clean the cutting discs, the grating discs and the dicing inserts (dicing knives and dicer grid) under running water. Never clean the dicer grid with metal objects or by tapping it on the edge of a table. Best clean the grid by putting it in a combi steam oven at 90 degrees for about 10 minutes.
  • Page 26 Ensure that the device is switched off with the ON/OFF switch prior to any • maintenance job. • Disconnect from the power supply! • The ANLIKER XXL vegetable cutter must not be cleaned with a stream-jet or high-pressure washer. • The use of abrasive cleaning agents is strictly prohibited. CAUTION CAUTION •...

  • Page 27: Mounting The Cutting Disc Holder

    The portable cutting disc holder can be taken along to the place of use. It can be mounted vertically or horizontally to a stable wall. Fig. 29: Wall-mounted cutting disc holder The ANLIKER XXL is equipped with two hooks located below the EMERGENCY OFF button for easy attachment of the cutting disc holder.

  • Page 28: Troubleshooting

    8 Troubleshooting The following section describes possible malfunctions which might occur during operation, and their elimination. Elimination of malfunctions The machine is built to endure and therefore not very susceptible to malfunctions. Action in case of malfunctions: First measure in case of malfunctions: Switch off the device! In case of unpleasant smells, unplug the mains plug.

  • Page 29: The Device Can No Longer Be Switched Off

    WARNING WARNING • High risk of injury for the customer/guest. • The operator is responsible if such malfunctions occur. 8.1.7 The device can no longer be switched off. Push the EMERGENCY OFF button! Please contact a technician. 8.1.8 The device makes buzzing noises and runs irregularly The capacitor is defective.

  • Page 30: Appendix

    9 Appendix Spare Parts Spare parts must meet the technical requirements specified by the manufacturer. This compliance is guaranteed for original spare parts. Use original spare parts only. Our warranty is void if third-party parts or parts which have not been approved in writing are used. NOTE Note •...

  • Page 31: Device Transfer To Third Parties

    (refer to page 24) or by the manufacturer plant itself The warranty period for the ANLIKER XXL vegetable cutter is two years (or six months according to the “Machine in continuous operation” section in our General Terms and Conditions”).

  • Page 32: Dimensional Drawing Of The Anliker Xxl Vegetable Cutter

    Dimensional drawing of the ANLIKER XXL vegetable cutter Fig. 31: Dimensional drawing of the ANLIKER XXL Generated: Reviewed: Revised: Status: 300 released Page 32 of 33 Ralph Moretti Document number: Index 04 July 2019...

  • Page 33: Ce Conformity Declaration

    CE Conformity Declaration Fig. 32: CE Conformity Declaration Generated: Reviewed: Revised: Status: 300 released Page 33 of 33 Ralph Moretti Document number: Index 04 July 2019...
