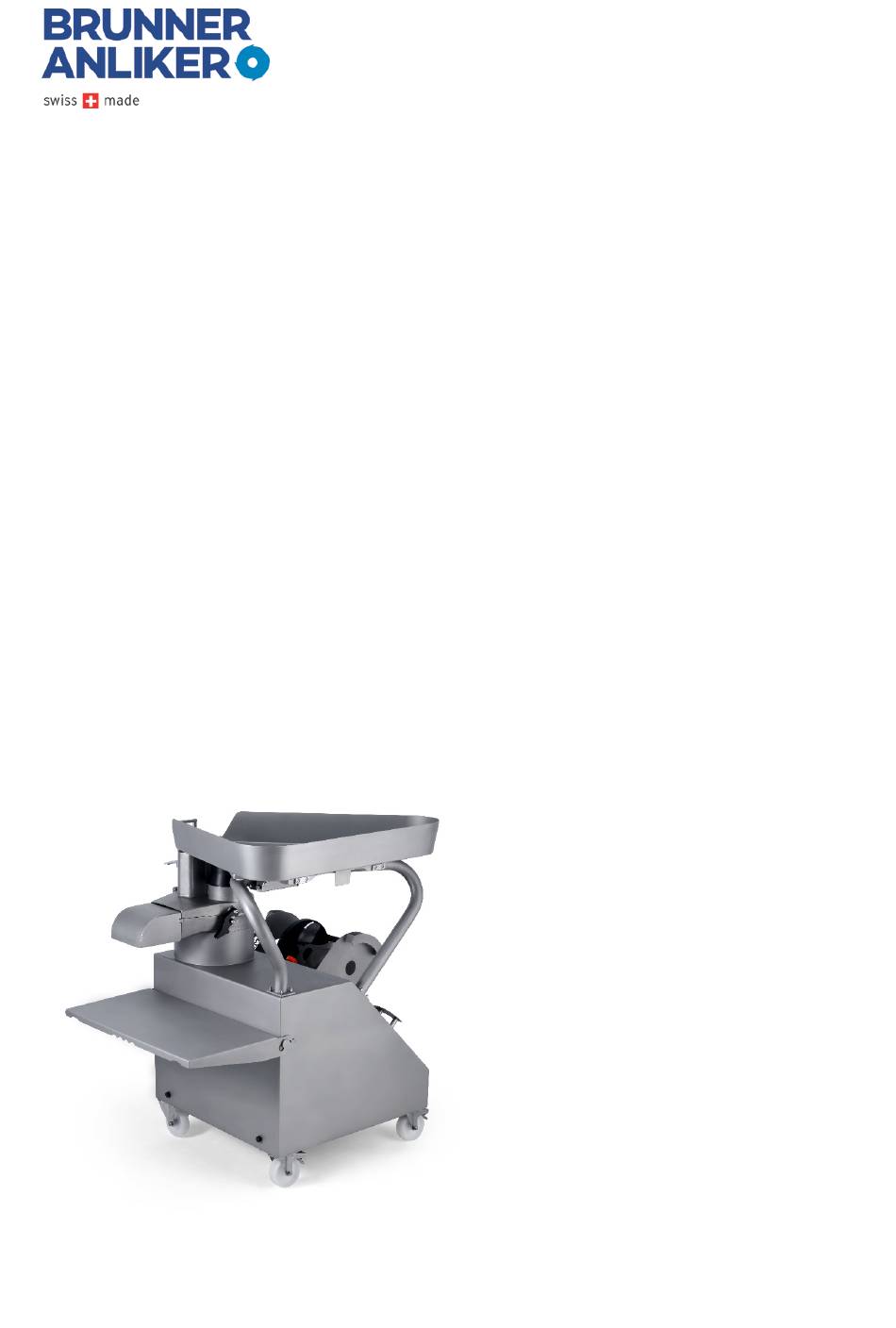

- Page 1 Operating Manual Vegetable Cutter ANLIKER XXL PRO Translation of the German Original...
-
Page 2: Table Of Contents
..........................21 Correct insertion of the cutting discs, grating discs and dicing inserts ..........23 5.3.1 Preparing the ANLIKER XXL PRO vegetable cutter ................23 5.3.2 Insertion of ejector or ejector disc ....................23 5.3.3 Insertion of cutting or grating disc ....................23 5.3.4 Close the attachment ........................ - Page 3 Spare parts ............................33 Disposal ............................. 33 Device transfer to third parties ......................34 Technical Specifications ........................34 Warranty ............................34 Dimensional drawing ANLIKER XXL PRO vegetable cutter ..............35 CE Conformity Declaration ........................ 36 Generated: Reviewed: Revised: Status: 300 released...
- Page 4 Fig. 35: Cutting disc holder ........................... 30 Fig. 36: Wall-mounted cutting disc holder ....................30 Fig. 37: Hooking up the cutting disc holder ....................30 Fig. 38: Dimensional drawing ANLIKER XXL PRO ................... 35 Fig. 39: CE Conformity Declaration ....................... 36 List of tables Table 1: Nameplate ............................7...
-
Page 5: Anliker Xxl Pro Introduction
1.1.2 Target group and mandatory reading The operating manual addresses all users of the ANLIKER XXL PRO vegetable cutter. Mandatory reading All users are to read section 2 “Safety”, page 7, before they start working with the ANLIKER XXL PRO vegetable cutter. Generated:... -
Page 6: Warnings And Instructions For Usee
We use abbreviations and easy to recognize symbols at the page margins only for measuring units and the above mentioned warning and usage symbols. (Examples: see “Warnings and instructions for use”, page 6). In this manual, the ANLIKER XXL PRO vegetable cutter will also be referred to as the “device”. Manufacturer address Brunner-Anliker AG Brunnergässli 1 - 5... -
Page 7: Device Identification
ANLIKER XXL PRO vegetable cutter. Intended use The intended use of the ANLIKER XXL PRO vegetable cutter is the cutting and slicing of different types of vegetables in the catering and food processing industry. With the various cutting discs, the vege- tables can be cut into different shapes and sizes. -
Page 8: General Safety Guidelines
Such jobs need to be executed by persons qualified accord- ingly. • All those working with the ANLIKER XXL PRO vegetable cutter must have been instructed on its use, read and understood the manufacturer’s operating manual. See also “User requirements”, page 8. -
Page 9: Structure
This chapter informs on the structure and accessories of the device. Structure of the basic unit The ANLIKER XXL PRO consists of a basic unit which rests on wheels, and a detachable top. Depend- ing on the top, the device can be used for different jobs/cuts. -
Page 10: Installation With Pro Attachment
Configuration with PRO attachment The PRO tray is mounted to the holder rail of the basic unit. From the tray, the foods can be feed into the filler spout or the round turning filler neck opening. Fig. 3: PRO tray Item Item 1 Filler spout... -
Page 11: Equipment
The customer can configure the device with different cutting discs, grating discs and dicing inserts. The basic unit always comes with tray attachment, operating manual, cleaning brush and micro- fuses. Fig. 5: ANLIKER XXL PRO Fig. 6: Accessories kit? Fig. 7: Ejector Fig. -
Page 12: Accessories
Accessories The ANLIKER XXL PRO can be equipped with an optional XXL (funnel) attachment. Supplementary accessories plus a large variety of cutting and grating discs as well as disc holders can be ordered from your sales partner or directly at our webshop. Please contact your distributor or visit our web- site for more information. -
Page 13: Materials
All housing parts and top are made of chromium steel. Control elements for activation and deactivation ANLIKER XXL PRO vegetable cutter operating concept: 1. Connect the device to the power outlet (“Electrical / electronic configuration”, page 16) and ensure that the EMERGENCY OFF pushbutton is unlocked. -
Page 14: Structure Of The Anliker L Vegetable Cutter
The ANLIKER XXL PRO vegetable cutter should not be lifted and transported by hand. If, however, manual lifting and transporting is inevitable, always work in two and lift the device at its holder rail. - Page 15 • Notify our after-sales service, the forwarder and the insurance agent immedi- ately if the device is consigned damaged due to insufficient packaging or inade- quate transport. CAUTION CAUTION! • Heavy load! The heavy weight might damage the musculoskeletal system. Generated: Reviewed: Revised:...
-
Page 16: Transporting The Anliker Xxl Pro Vegetable Cutter
Transporting the ANLIKER XXL PRO vegetable cutter The ANLIKER XXL PRO stands on wheels and can so be easily transported from one place to another. Re- member to open the caster wheel brakes to relocate the vegetable cutter. At its new place of use, secure stability by snapping in the brake catches. -
Page 17: Start-Up
HAZARD HAZARD! • Do not change or modify the ANLIKER XXL PRO vegetable cutter or add any equipment which might impair the safety or function of the device. Otherwise the device no longer complies with the CE standards. •... -
Page 18: Storage
Storage If the ANLIKER XXL PRO vegetable cutter is not used for a longer period of time, observe the following conditions to keep it fully functional: • The storage place must be dry and clean. • The ANLIKER XXL PRO vegetable cutter must not be exposed to extreme cold or heat. -
Page 19: Installation Of The Attachment
5 Installation of the attachment The ANLIKER XXL PRO vegetable cutter can be used for a myriad of jobs. Observe the following steps when inserting cutting discs, grating discs and dicing inserts: WARNING Cut injury due to sharp cutting faces •... -
Page 20: Fig. 17: Locking The Newly Attached Piece
Close the top and lock with the locking lever. Make sure the top locks correctly. Fig. 17: Locking the newly attached piece Insert the plunger int the hinge opening (the hinge must not get stuck!). Fig. 18: Insert the plunger rod After complete and correct insertion of the plunger rod, it can be fixed in place with the lock. -
Page 21: Mount The Tray
Mounting the tray Open the tray lock and place the tray on the holder rail. The holder rail features a hinge ring for lock placement. Fig. 20: Tray placement Fig. 21: Hinge ring The supports must lie on the holder rail when the tray is placed on the filler spout. -
Page 22: Fig. 24: Locking The Tray In Place
Now the locking lever can be closed and locked in place. Fig. 24: Locking the tray in place Generated: Reviewed: Revised: Status: 300 released Page 22 of 36 Ralph Moretti Document number: Index 20 Nov 2019... -
Page 23: Correct Insertion Of The Cutting Discs, Grating Discs And Dicing Inserts
Correct insertion of the cutting discs, grating discs and dicing inserts 5.3.1 Preparing the ANLIKER XXL PRO vegetable cutter Swing the tray open, open the locking lever and swing the top to the side. Fig. 25: Tray swung open Fig. 26: Top swung aside 5.3.2 Insertion of ejector or ejector disc... -
Page 24: Close The Attachment
WARNING WARNING The knives and tips of the grating disc perforations are extremely sharp and now • lie open. • Danger of cuts and skin abrasions! NOTE Note • The discs fit the drive shaft perfectly. Never push of force them down on the drive shaft with an excess of pressure. -
Page 25: Cutting Vegetables
Cutting vegetables Place a suitable container (food container 1/1) on the folded down table if the table is folded up, the cut goods can be delivered directly into large processing trolleys or bowls. Fig. 30: Food container on the folded down table NOTE Note •... -
Page 26: Use Of The Turning Plunger
Use of the turning plunger Fig. 32: Operation with turning filler neck For turning plunger use, the filler neck flap must be opened first: swing the tray open, open the turning plunger flap and swing it out until it is fixed in place by the magnet. Fig. -
Page 27: System Care „Cleaning Concept
NOT be used. Removing the top Remove the attachment in reverse order to “Installation of the attachment” XXL PRO on page 19. The first step is to separate the device from the power supply. Open the lock on the funnel holder and remove the funnel. -
Page 28: Cleaning The Cutting Discs, Grating Discs And Dicing Inserts (W)
Cleaning the cutting discs, grating discs and dicing inserts (W) Use the nylon brush included in the consignment to clean the cutting discs, the grating discs and the dicing inserts (dicing knives and dicer grid) under running water. Never clean the dicer grid with metal objects or by tapping it on the edge of a table. Best clean the grid by putting it in a combi steam oven at 90 degrees for about 10 minutes. - Page 29 Ensure that the device is switched off with the ON/OFF switch prior to any maintenance job. Disconnect from the mains! • • The ANLIKER XXL PRO vegetable cutter must not be cleaned with a stream-jet or high-pressure washers. The use of aggressive cleaning agents is strictly prohibited. • CAUTION CAUTION •...
-
Page 30: Mounting The Cutting Disc Holder
Mounting the cutting disc holder The cutting disc holder can accommodate up to six different cutting discs. Its simple fastening principle allows it to be installed right where it is needed Fig. 35: Cutting disc holder The portable cutting disc holder can easily be taken along to the place of use. -
Page 31: Troubleshooting
8 Troubleshooting The following chapter describes possible disturbances which might occur during operation, and their elimination. Elimination of malfunctions The machine is built to endure and therefore not very susceptible to malfunctions. Action in case of malfunctions: First measure in case of malfunctions: Switch off the device! In case of unpleasant smells, unplug the mains plug. -
Page 32: The Device Can No Longer Be Switched Off
WARNING • High risk of injury for the customer/guest. • The operator is responsible if such malfunctions occur. 8.1.7 The device can no longer be switched off. Push the EMERGENCY OFF button! Please contact a technician. 8.1.8 The device makes buzzing noises and runs irregularly The capacitor is defective. -
Page 33: Annex
9 Annex Spare parts Spare parts must meet the technical requirements specified by the manufacturer. This compliance is guaranteed for original spare parts. Use original spare parts only. Our warranty is void if third-party parts or parts which have not been approved in writing are used. NOTE Note •... -
Page 34: Device Transfer To Third Parties
Device transfer to third parties All liabilities by Brunner-Anliker AG cease if the ANLIKER XXL PRO vegetable cutter is sold and trans- ferred to a third party. Technical Specifications Machine type ANLIKER XXL PRO vegetable cutter Electrical connection 3 x 400 V, 50 Hz / 1 x 115 V, 60 Hz Electric motor 0.75 kW / 1.1 kW... -
Page 35: Dimensional Drawing Anliker Xxl Pro Vegetable Cutter
Dimensional drawing ANLIKER XXL PRO vegetable cutter Fig. 38: Dimensional drawing ANLIKER XXL PRO Generated: Reviewed: Revised: Status: 300 released Page 35 of 36 Ralph Moretti Document number: Index 20 Nov 2019... -
Page 36: Ce Conformity Declaration
CE Conformity Declaration Fig. 39: CE Conformity Declaration Generated: Reviewed: Revised: Status: 300 released Page 36 of 36 Ralph Moretti Document number: Index 20 Nov 2019...
