Brunner Anliker XXL Operating Manual

Vegetable cutter
Hide thumbs Also See for XXL:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Manual
Vegetable Cutter
ANLIKER XXL
Translation of the German Original

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XXL and is the answer not in the manual?

Questions and answers

Related Manuals for Brunner Anliker XXL

Summary of Contents for Brunner Anliker XXL

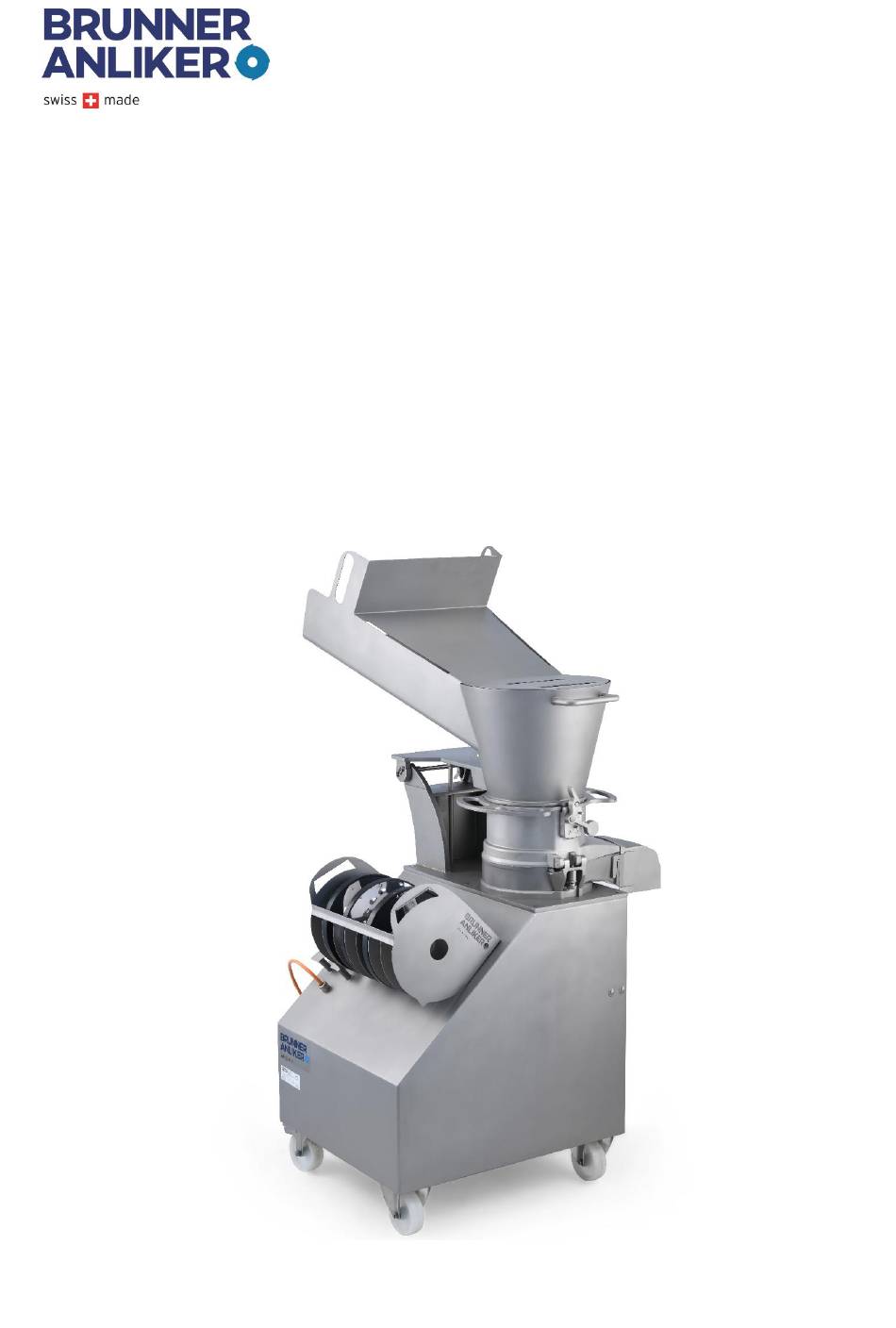

  • Page 1 Operating Manual Vegetable Cutter ANLIKER XXL Translation of the German Original...

  • Page 2: Table Of Contents

    Installation of the attachment .................... 19 Correct insertion of the cutting discs, grating discs and dicing inserts ..........21 5.1.1 Preparation of the ANLIKER XXL for food processing ............... 21 5.1.2 Inserting the ejector or ejector disc ....................21 5.1.3 Insertion of cutting or grating disc ....................22 5.1.4 Close the attachment ........................
  • Page 3 System care „cleaning concept“..................28 Cleaning the ANLIKER XXL vegetable cutter..................28 Removing the top ..........................28 Cleaning the cutting discs, grating discs and dicing inserts (W) ............29 6.3.1 Cleaning the dicer grid ........................29 6.3.2 Residues in the dicer grid ......................... 29 6.3.3 Manual cleaning of the dicer grid .....................
  • Page 4 Fig. 3: Funnel attachment Fig. 4: ANLIKER XXL Fig. 5: Accessories kit Fig. 6: Ejector Fig. 7: Standard screw blade Fig. 8: ANLIKER XXL PRO attachment piece Fig. 9 Ejector disc Fig. 10 Neutral blade Fig. 11: Various cutting discs, grating discs, Fig.

  • Page 5: Anliker Xxl - Introduction

    1.1.2 Target group and mandatory reading The operating manual addresses all users of the ANLIKER XXL vegetable cutter. Mandatory reading All users are to read section 2 “Safety”, page 7, before they start working with the ANLIKER XXL veg- etable cutter. Generated:...

  • Page 6: Warnings And Instructions For Usee

    We use abbreviations and easy to recognize symbols at the page margins only for measuring units and the above mentioned warning and usage symbols. (Examples: see “Warnings and instructions for use”, page 6). In this manual, the ANLIKER XXL vegetable cutter will also be referred to as the “device”. Manufacturer address Brunner-Anliker AG Brunnergässli 1 - 5...

  • Page 7: Device Identification

    ANLIKER XXL vegetable cutter. Intended use The intended use of the ANLIKER XXL vegetable cutter is the cutting and slicing of different types of vegetables in the catering and food processing industry. With the various cutting discs, the vegeta- bles can be cut into different shapes and sizes.

  • Page 8: General Safety Guidelines

    Such jobs need to be executed by persons qualified accordingly. • All those working with the ANLIKER XXL vegetable cutter must have been instructed on its use, read and understood the manufacturer’s operating manual. See also “User requirements”, page •...

  • Page 9: Structure

    Structure This chapter informs on the structure and accessories of the device. Structure of the basic unit The ANLIKER XX consists of a basic unit which rests on wheels, and a detachable top. Depending on the top, the device can be used for different jobs. The basic unit houses the drive with power supply and the control elements.

  • Page 10: Basic Unit With Funnel

    Basic unit with funnel Funnel and tray are attached to the holder piece of the basic unit. The tray feeds the products di- rectly into the machine where they are processed immediately. Fig. 3: Funnel attachment Item Item 1 Filler spout - tray 6 Funnel 2 Holder piece with inserted funnel 7 Screw blades...

  • Page 11: Equipment

    Equipment The customer can configure the device with different cutting discs, grating discs and dicing inserts. The basic unit always comes with funnel attachment, operating manual and cleaning brush. Fig. 4: ANLIKER XXL Fig. 5: Accessories kit Fig. 6: Ejector Fig.

  • Page 12: Accessories

    Accessories The ANLIKER XXL can be equipped with an optional PRO attachment. Supplementary accessories plus a large variety of cutting and grating discs as well as disc holders can be ordered from your sales partner or directly at our webshop. Please contact your distributor or visit our website for more information.

  • Page 13: Materials

    All housing parts and top are made of chromium steel. Control elements for activation and deactivation ANLIKER XXL vegetable cutter operating concept: 1. Connect the device to the power outlet (“Electrical / electronic configuration”, page 16) and ensure that the EMERGENCY OFF pushbutton is unlocked (item 3 on page 9)..

  • Page 14: Structure Of The Anliker L Vegetable Cutter

    The ANLIKER XXL vegetable cutter should not be lifted and transported by hand. If, however, man- ual lifting and transporting is inevitable, always work in two and lift the device at its holder rail.

  • Page 15: Weight Of The Anliker Xxl Vegetable Cutter

    Weight of the ANLIKER XXL vegetable cutter The vegetable cutter weighs 100 kg. NOTE Note • Check the consignment for completeness. Compare the contents with the deliv- ery note. If components are missing, please contact your supplier. • Notify our after-sales service, the forwarder and the insurance agent immedi- ately if the device is consigned damaged due to insufficient packaging or inade- quate transport.

  • Page 16: Assembly And Installation

    Fig. 15: Power cable Electrical / electronic configuration The ANLIKER XXL vegetable cutter comes with an approx. 4-meter power cable which can be plugged into a 230-Volt socket (monophase connection). To avoid tripping hazards, do not route the cable across passageways.

  • Page 17: Start-Up

    • Ensure that there are no foreign bodies in the vegetable cutter’s filler spouts! HAZARD HAZARD! • Do not change or modify the ANLIKER XXL vegetable cutter or add any equip- ment which might impair the safety or function of the device Otherwise the device no longer complies with the CE standards. •...

  • Page 18: Storage

    Storage If the ANLIKER XXL vegetable cutter is not used for a longer period of time, observe the following conditions to keep it fully functional: • The storage place must be dry and clean. • The ANLIKER XXL vegetable cutter must not be exposed to extreme cold or heat.

  • Page 19: Installation Of The Attachment

    Any already mounted attachments need to be removed before a new one can be installed. Separate the device from the power supply. ANLIKER XXL attachment piece with hinge: push down the locking pin, insert the hinge until the pin moves out and locks in place.

  • Page 20: Fig. 18 Inserting The Screw Blade

    Insert the screw blade Pay attention to the two guide bolts when inserting the blade Fig. 18 Inserting the screw blade Mounting the funnel Insert the funnel into the holder piece. Make sure it fits correctly Fig. 19: Mounting the funnel Fig.

  • Page 21: Correct Insertion Of The Cutting Discs, Grating Discs And Dicing Inserts

    Fig. 24: Locked funnel Correct insertion of the cutting discs, grating discs and dicing inserts 5.1.1 Preparation of the ANLIKER XXL for food processing Open the latch and swing the funnel to the side. Open the locking lever and swing out the attachment piece.

  • Page 22: Insertion Of Cutting Or Grating Disc

    Ensure locking! Fig. 28: Inserted screw blade 5.1.5 Closing the funnel Swing the funnel back in place and lock. Ensure its perfect fit. The ANLIKER XXL is now ready for operation. Fig. 29: Locked funnel Generated: Reviewed: Revised:...

  • Page 23: Inserting The Dicer Grid

    5.1.6 Inserting the dicer grid The pin on the upper part must lock in the indent in the dicer grid. Fig. 30: Dicer grid indent Fig. 31:Upper part pin The dicer grid is in the correct position when the pin on the upper part locks in the dicer grid in- dent.

  • Page 24: Cutting Vegetables

    Cutting vegetables Put a suitable container (food container 1/1) or a large trolley container or tray under the processed food outlet. Switch on the device. Fill vegetables into the funnel. Fig. 33: Filling with vegetables If vegetables get stuck in the funnel, take the handle of the screw blade and move the device back and forth (slight rocking move- ments) by hand.

  • Page 25: Fig. 35: Cover Mounted Onto The Outlet

    Fig. 35: Cover mounted onto the outlet HAZARD HAZARD! • Do not reach into the outlet when the device is running! • Danger of cutting - or crushing hands and fingers • The machine may only be operated with the outlet cover safely in place. Generated: Reviewed: Revised:...

  • Page 26: Using The Accessories (Multifeeder Insert)

    Using the accessories (Multifeeder insert) The Multifeeder insert allows continuous filling and cutting of long products such as cucumbers. 5.3.1 Preparing the device for the Multifeeder First swing out the funnel, remove. The screw blade must be removed as well. Then install the required cutting disc. Then insert the Multifeeder.

  • Page 27: Using The Accessories (Neutral Blade)

    Using the accessories (neutral blade) The neutral blade is used for comfortable cutting of cabbage. 5.4.1 Preparing the device for the use of the neutral blade First place and lock the ring of the neutral blade. Fig. 37: Ring for the neutral blade Fasten the plunger to the holder piece, observe the IN / OUT di- rection.

  • Page 28: System Care „Cleaning Concept

    Removing the top Remove the attachment in reverse order to “Installation of the XXL attachment piece” on page 19. The first step is to separate the device from the power supply.

  • Page 29: Cleaning The Cutting Discs, Grating Discs And Dicing Inserts (W)

    Cleaning the cutting discs, grating discs and dicing inserts (W) Use the nylon brush included in the consignment to clean the cutting discs, the grating discs and the dicing inserts (dicing knives and dicer grid) under running water. Never clean the dicer grid with metal objects or by tapping it on the edge of a table. Best clean the grid by putting it in a combi steam oven at 90 degrees for about 10 minutes.
  • Page 30 Ensure that the device is switched off with the ON/OFF switch prior to any maintenance job. • Disconnect from the mains! • The ANLIKER XXL vegetable cutter must not be cleaned with a stream-jet or high-pressure washers. • The use of aggressive cleaning agents is strictly prohibited. CAUTION CAUTION •...

  • Page 31: Mounting The Cutting Disc Holder

    Mounting the cutting disc holder The cutting disc holder can accommodate up to seven different cutting discs. Its simple fastening principle allows it to be installed right were it is needed. Fig. 40: Cutting disc holder The disc holder can be easily taken off and moved to its new site of opera- tion.

  • Page 32: Troubleshooting

    8 Troubleshooting The following chapter describes possible disturbances which might occur during operation, and their elimination. Elimination of malfunctions The machine is built to endure and therefore not very susceptible to malfunctions.. Action in case of malfunctions: First measure in case of malfunctions: Switch off the device! In case of unpleasant smells, unplug the mains plug.

  • Page 33: Cutter Bar Broken

    8.1.6 Cutter bar broken The cutter bars can break by impacts from other objects or by incorrect handling. IMPORTANT. Always search for the knife or its parts when broken. WARNING WARNING • High risk of injury for the customer/guest. • The operator is responsible if such malfunctions occur.

  • Page 34: Annex

    9 Annex Spare parts Spare parts must meet the technical requirements specified by the manufacturer. This compliance is guaranteed for original spare parts. Use original spare parts only. Our warranty is void if third-party parts or parts which have not been approved in writing are used. NOTE Note •...

  • Page 35: Device Transfer To Third Parties

    Device transfer to third parties All liabilities by Brunner-Anliker AG cease if the ANLIKER XXL vegetable cutter is sold and transferred to a third party. Technical Specifications Machine type ANLIKER XXL vegetable cutter Electrical connection 230 V 50/60Hz Electric motor 0.75 kW /...

  • Page 36: Documents

    Documents 9.6.1 Dimensional drawing ANLIKER XXL Fig. 44: Dimensional drawing ANLIKER XXL Generated: Reviewed: Revised: Status: 300 released Page 36 of 39 Ralph Moretti Document number: Index 28 July 2021 235.01550...

  • Page 37: Ce Conformity Declaration

    9.6.2 CE Conformity Declaration Fig. 45: CE Conformity Declaration Generated: Reviewed: Revised: Status: 300 released Page 37 of 39 Ralph Moretti Document number: Index 28 July 2021 235.01550...

  • Page 38: Ce Conformity Declaration For Accessories

    9.6.3 CE Conformity Declaration for accessories Fig. 46: Conformity Declaration for accessories Generated: Reviewed: Revised: Status: 300 released Page 38 of 39 Ralph Moretti Document number: Index 28 July 2021 235.01550...

  • Page 39: Generated: Reviewed: Revised: Status: 300 Released

    9.6.4 Supplement 1935/2004 Fig. 47: Supplement 1935/2004 Generated: Reviewed: Revised: Status: 300 released Page 39 of 39 Ralph Moretti Document number: Index 28 July 2021 235.01550...
