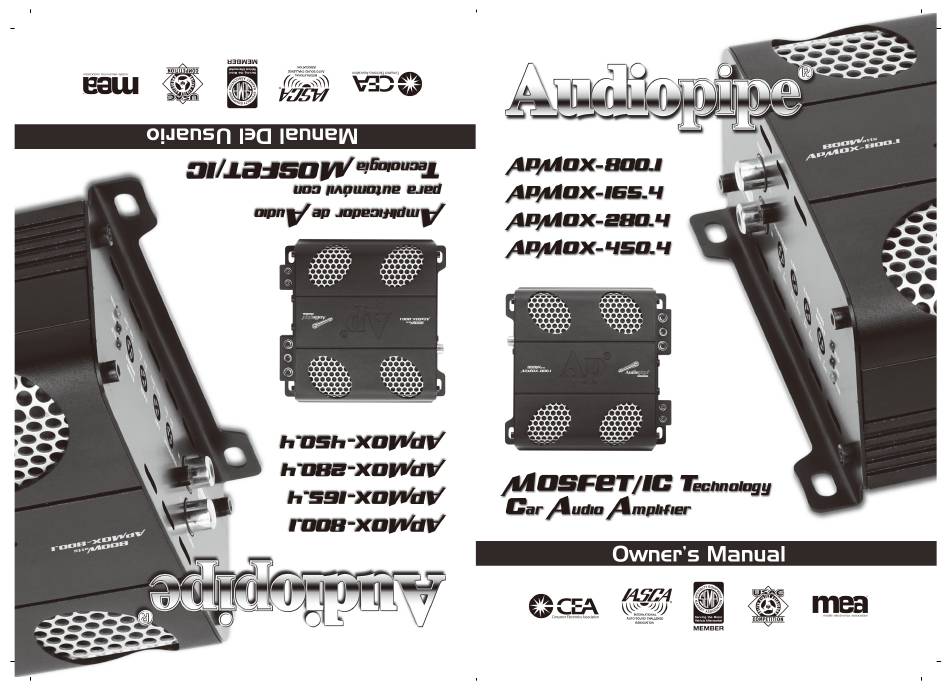

Summary of Contents for Audiopipe APMOX-800.1
-
Page 2: Limited Warranty
LIMITED WARRANTY Audiopipe warrants this product to be free of defects in material of workmanship for One year from the date of purchase. Audiopipe warranty applies exclusively to the original purchaser and is not transferable. The Amplifier must be purchased from an Authorized Audiopipe dealer. - Page 3 HI-INPUT Connect factory systems head unit. RCA audio input These RCA audio inputs connect with your radio RCA outputs. Please use high quality RCA cables. Keep these cables as short as possible. To avoid electrical disturbances from your car electronics, route RCA cables away from other current carrying cables in the car.
- Page 4 Rotate counter clockwise to lower the higher low frequencies from 50 to 500Hz. Gain Used to reach maximum amplifier power by matching the output voltage of with a wide variety of the head units. Bass Boost Increase sound level in lower frequencies by 12dB. Power / Protect / Clip indicator Power indicator: Used to indicate the unit is on and you can resume normal operation.
- Page 5 Speaker connection Never connect the speaker cables with the chassis ground. This may destroy your amplifier. Check that your speakers are connected correctly which means plus to plus and minus to minus. We recommend speaker cable from 2.25 mm to up. The connection ways are shown in the attachment.
- Page 6 APMOX-800.1...
- Page 7 APMOX-165.4 / APMOX-280.4 / APMOX-450.4 4Ω...
- Page 8 Model: APMOX-800.1 APMOX-165.4 APMOX-280.4 APMOX-450.4 • Output Power (RMS)@1% Stereo @ 4 ohms: 1 x 560W 4 x 110W 4 x 200W 4 x 300W Stereo @ 2 ohms: 1 x 800W 4 x 165W 4 x 280W 4 x 450W...
