R320 Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on how to set up
your Ruckus R320 access point. After completing the steps in this guide,
you will be able to place the access point (AP) at your site and provide
network access to wireless clients.
NOTE: Please read these operation instructions carefully before start of
operation.
NOTE: The minimum software revision for the R320 is ZoneDirector
(ZD) 10.2.1 native or later, SmartZone (SZ) 5.1 new AP model or later, or
Unleashed 200.7 or later.

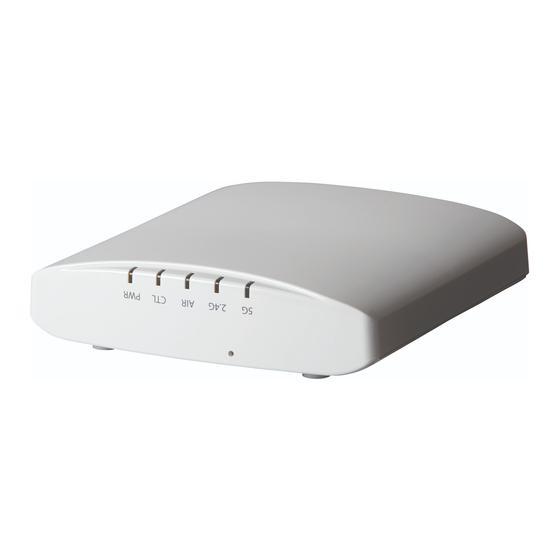

FIGURE 1 R320 Top
Before You Begin
Before deploying Ruckus products, please check for the latest software and
the release documentation.
• Release Notes and other user documentation are available at
support.ruckuswireless.com/documents.
• Software upgrades are available at http://support.ruckuswireless.com/
software.
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
https://
support.ruckuswireless.com.
• Vous trouverez la version française de ce guide à l'adresse suivante
https://support.ruckuswireless.com.
• このガイドの日本語版は
https://support.ruckuswireless.com
ください。
• 이 가이드의 한국어 버전은 웹 사이트
(https://
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
support.ruckuswireless.com.
Copyright © 2024 CommScope, Inc. All rights reserved.
Published March 2024, Part Number 800-71895-001 Rev D
• Puede ver la versión en español (América Latina) de esta guía en
support.ruckuswireless.com.
Package Contents
A complete R320 installation package includes all of the items listed below:
• R320 Access Point
• One wall-mount anchor kit, including two 1" No. 8 steel pan head
Phillips sheet metal screws and wall-mount anchors.
• One external T-bar bracket (two unassembled parts)
• One unit removal pin
• Service Level Agreement/Limited Warranty Statement
• Declaration of Conformity
• Regulatory Statement
• Ruckus AP Getting Started Guide
• AP Cloud Management Insert
• This Quick Setup Guide
CONFIGURING THE AP
Step 1: Collecting the AP MAC Address
• Write down the MAC address (12 alphanumeric digits) from the outside
of the AP.
NOTE: If the AP is to be managed by a Ruckus controller, then follow
the controller user documents to connect the AP to your local network
and configure it for initial operation. In that case, you may not need to
complete the following steps.
Step 2: Collecting Setup Requirements, Hardware, and
Tools
• A computer with Ethernet adapter running Windows 7 or equivalent,
with Firefox or equivalent web browser.
• One Cat 5e (or better) Ethernet cable.
• An AC-to-12VDC power adapter (sold separately)
--OR--
an 802.3af-compliant Power over Ethernet (PoE) switch or PoE injector.
Step 3: Connecting Your Computer to the AP
1. After removing the AP from its package, place it next to your
computer.
http://
2. Using an Ethernet cable, connect your computer's network port to
the POE IN port on the AP.
3. Connect the AC power adapter (sold separately) to the 12VDC AP
port, and plug the AC power adapter into a convenient and protected
AC power source.
Alternatively, connect the POE IN port to a PoE injector or PoE switch
for both power and network connectivity.
でご覧
https://
https://
FIGURE 2 AP Rear Panel
4. After bootup, verify that the PWR LED on the AP is a steady green.
Step 4: Preparing Your Computer for AP Setup
NOTE: The following procedures assume that Windows 7 is the
operating system. Procedures for other operating systems are similar.
1. On your Windows 7 computer, configure your network adapter from
the Local Area Connection settings as follows:
• Start > Control Panel > Network and Sharing Center > Change
Adapter Settings
2. Edit the TCP/IPv4 address settings as follows:
• Local Area Connection > Properties > Internet Protocol Version 4
(TCP/IPv4) > Properties
The Internet Protocol Version 4 (TCP/IPv4) Properties dialog box
appears.
NOTE: Write down all of the currently active settings so you can
restore your computer to its current configuration when this
procedure is completed.
3. Select Use the following IP address (if it is not already selected) and
then make the following entries:
• IP address: 192.168.0.22 (or any available address in the
192.168.0.x network, except 192.168.0.1, which is the default used
by the R320 AP)
• Subnet mask: 255.255.255.0
• Leave the DNS server and Default gateway fields empty.
4. Click OK to save your changes. Your changes are put into effect
immediately.
Step 5: Logging Into the AP Web Interface
As specified in Step 4: Preparing Your Computer for AP Setup
the computer should be connected to your AP through the Ethernet port
and powered on, ready for setup.
1. On your computer, open a Web browser window.
2. In the browser, enter https://192.168.0.1 to connect to the AP.
on page 1,
