CommScope RUCKUS Unleashed R750 Quick Setup Manual

Unleashed R750
Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on how
to set up your RUCKUS Unleashed R750 access point. After
completing the steps in this guide, you will be able to place the
access point (AP) at your site and provide wireless network access
to users.
For detailed information on configuration and administration of
your RUCKUS Unleashed R750 AP, refer to the Unleashed Online
Help, available from https://docs.commscope.com/bundle/
unleashed-200.13-onlinehelp.

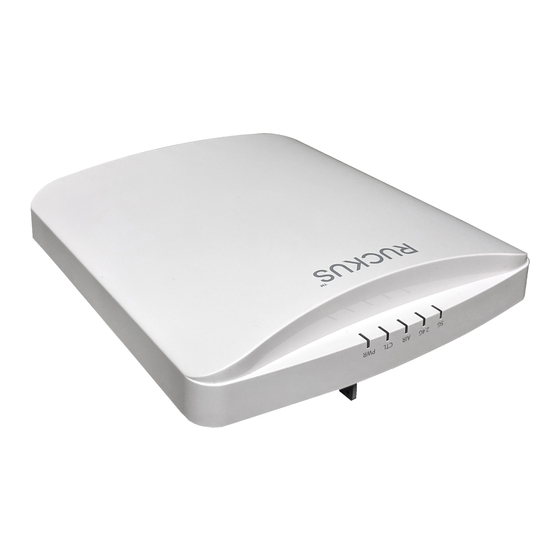

FIGURE 1 Unleashed R750 - Top

Before You Begin

Before deploying Ruckus products, please check for the latest
software and the release documentation.
• Release Notes and other user documentation are available at
http://support.ruckuswireless.com/documents.
• Software upgrades are available at http://
support.ruckuswireless.com/software.
• AP documentation at http://docs.commscope.com/?docs-box.
Copyright © 2022 CommScope, Inc. All rights reserved.
Published October 2022, Part Number 800-72377-001 Rev B
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
docs.commscope.com/?docs-box.
• Vous trouverez la version française de ce guide à l'adresse
suivante http://docs.commscope.com/?docs-box.
• このガイドの日本語版は
http://docs.commscope.com/?
でご覧ください。
docs-box
• 이 가이드의 한국어 버전은 웹 사이트
docs.commscope.com/?docs-box) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
docs.commscope.com/?docs-box
• Puede ver la versión en español (América Latina) de esta guía
en http://docs.commscope.com/?docs-box

Package Contents

A complete Unleashed R750 installation package includes all of
the items listed below:
• Unleashed R750 Access Point
• One wall-mount anchor kit, including two 1" No. 8 steel pan
head Phillips sheet metal screws and wall-mount anchors.
• One external T-bar bracket (two unassembled parts)
• Service Level Agreement/Limited Warranty Statement
• Declaration of Conformity
• Regulatory Statement

Unleashed Network Configuration

Setup Using the Unleashed Mobile App

To perform setup using the Unleashed Mobile App, download the
iOS or Android app from the app store.
1. As soon as the Unleashed AP is powered on and connected to
the local network, it boots up and begins broadcasting a
temporary unencrypted WLAN named "Configure.Me-
[xxxxxx]" from both radios.
2. Using your client's Wi-Fi connection settings, select and
associate to the "Configure.Me-[xxxxxx]" WLAN.
3. Launch the app, and follow the on-screen instructions to
configure your Unleashed network(s).
FIGURE 2 Unleashed Mobile App for iOS and Android
http://
(http://
http://
FIGURE 3 Configuring Unleashed from the Mobile App

Setup Using a Web Browser

1. As soon as the Unleashed AP is powered on and connected to
the local network, it boots up and begins broadcasting a
temporary unencrypted WLAN named "Configure.Me-
[xxxxxx]" from both radios.
2. Using your client's Wi-Fi connection settings, select and
associate to the "Configure.Me-[xxxxxx]" WLAN.
3. Launch a web browser and enter the following into the
browser's URL bar: unleashed.ruckuswireless.com, and press
Enter.
4. You will be redirected to the Setup Wizard. Complete the
steps in the Setup Wizard and click Finish.
Page 1 of 4
