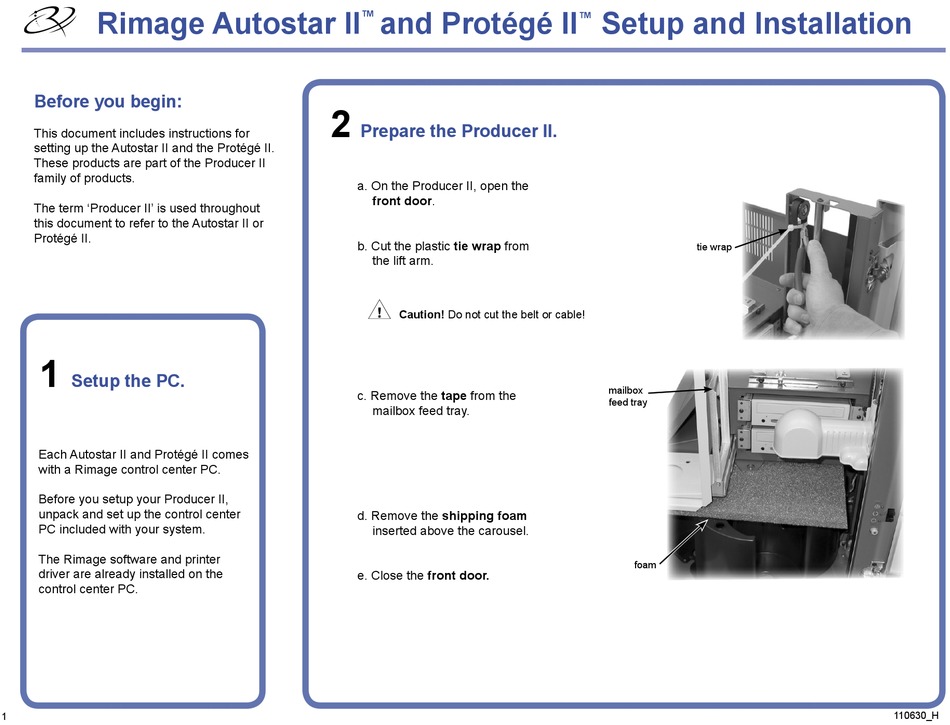

Rimage Autostar II Setup And Installation Manual

Rimage Autostar II

Before you begin:

This document includes instructions for
setting up the Autostar II and the Protégé II.
These products are part of the Producer II
family of products.
The term 'Producer II' is used throughout
this document to refer to the Autostar II or
Protégé II.
1
Setup the PC.
Each Autostar II and Protégé II comes
with a Rimage control center PC.
Before you setup your Producer II,
unpack and set up the control center
PC included with your system.
The Rimage software and printer
driver are already installed on the
control center PC.
1
and Protégé II
™
2
Prepare the Producer II.
a. On the Producer II, open the
front door.
b. Cut the plastic tie wrap from
the lift arm.

Caution! Do not cut the belt or cable!
c. Remove the tape from the
mailbox feed tray.
d. Remove the shipping foam
inserted above the carousel.
e. Close the front door.
Setup and Installation
™
tie wrap
mailbox
feed tray
110630_H
