Climos 200 Eco

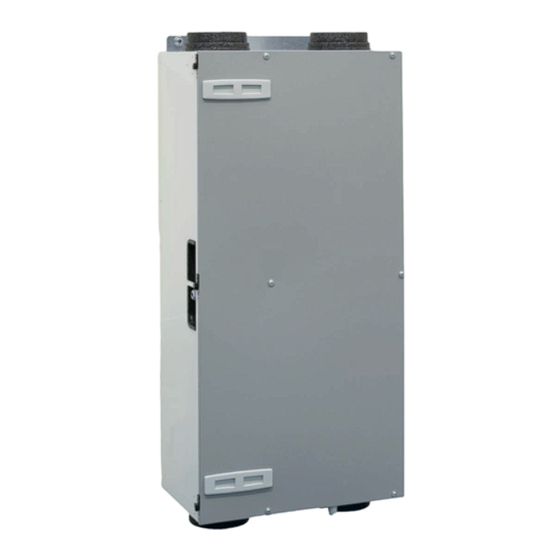

Zehnder Climos 200 Eco
Technical specification for comfort ventilation unit
General
The Climos 200 Eco comfort ventilation unit was
developed for use in demanding residential and
commercial buildings. It guarantees comfort ventilation
paired with user-friendly operation and the highest
energy effi ciency. The various installation options and
different models allow it to be fl exibly incorporated into
building services. The comfort ventilation unit moves a
maximum of 200 m³/h at an external pressure of 150
Pa.

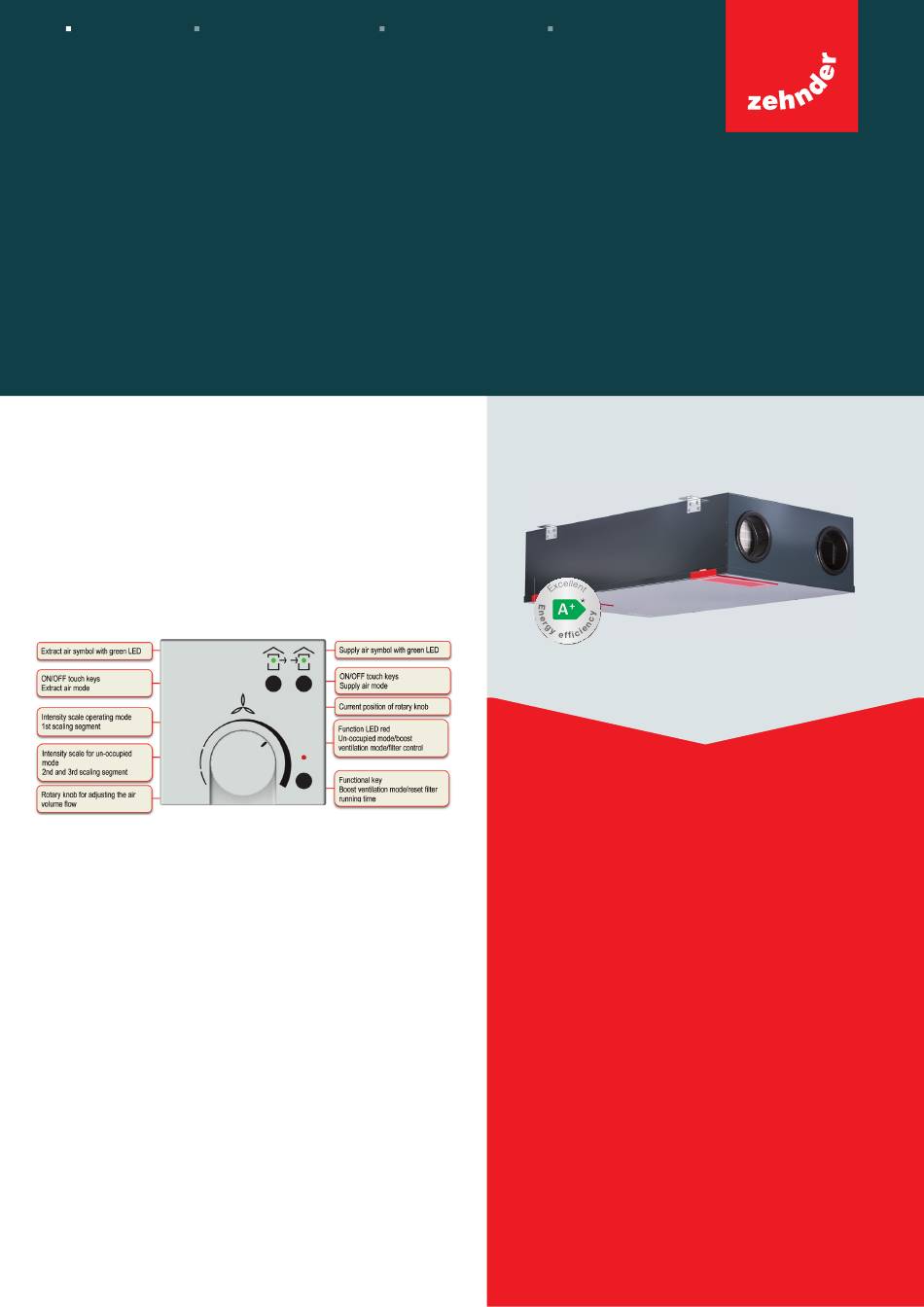

Control panel
Operation
To control the fans, the control panel has a rotary
knob with an infi nitely variable adjustment range (fi rst
scaling segment on the intensity scale) for the air
volume fl ow.
The two ON/OFF keys can be used to set the operating
mode. You can choose between normal mode (both
fans switched on), extract air mode (only the exhaust
air fan switched on) or supply air mode (only the
supply air fan switched on). The green LED above the
respective symbol indicates which mode has been set.
Use the boost ventilation mode/reset fi lter running
time key to trigger the operating function associated
with each one. The operating LED lights up red to
indicate that the un-occupied or boost ventilation
operating modes are possibly active or that the fi lters
should be inspected.
Heating and cooling ceilings
Industrial air cleaning
Top Benefi ts
Flexible installation options due to the compact
fl at design and the fact that there is no need for
a condensate drain
Energy-effi cient operation and maximum climate
comfort, as enthalpy exchanger is included as
standard
Reduces excessively dry air in the winter and
excessively humid air in the summer, and means
that post-heaters or frost-protection functions
are only required with outdoor temperatures of
approx. -6 °C or lower
Maximum energy effi ciency due to EC
centrifugal fans regulated to a constant volume
and with balancing
Simple and user-friendly control with fi lter
replacement indicator
Optionally possible to add IAQ sensor
always the best climate
