d e
A

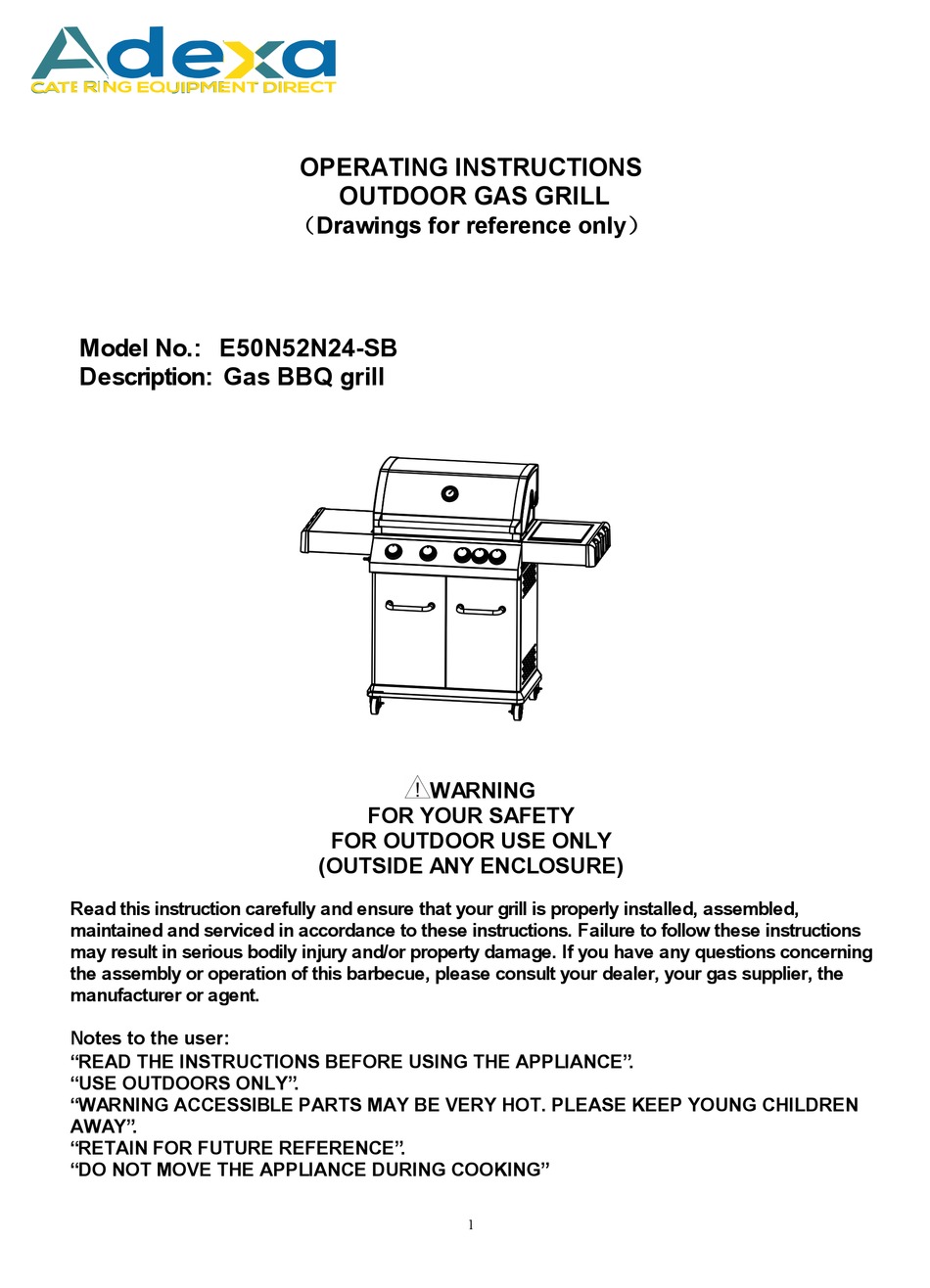

CATE RI NG EQUIPMENT DIRECT
Model No.: E50N52N24-SB
Description:
Read this instruction carefully and ensure that your grill is properly installed, assembled,
maintained and serviced in accordance to these instructions. Failure to follow these instructions
may result in serious bodily injury and/or property damage. If you have any questions concerning
the assembly or operation of this barbecue, please consult your dealer, your gas supplier, the
manufacturer or agent.
Notes to the user:
" READ THE INSTRUCTIONS BEFORE USING THE APPLIANCE".
" USE OUTDOORS ONLY".
" WARNING ACCESSIBLE PARTS MAY BE VERY HOT. PLEASE KEEP YOUNG CHILDREN
AWAY".
" RETAIN FOR FUTURE REFERENCE".
" DO NOT MOVE THE APPLIANCE DURING COOKING"
a
�
>
OPERATING INSTRUCTIONS
OUTDOOR GAS GRILL

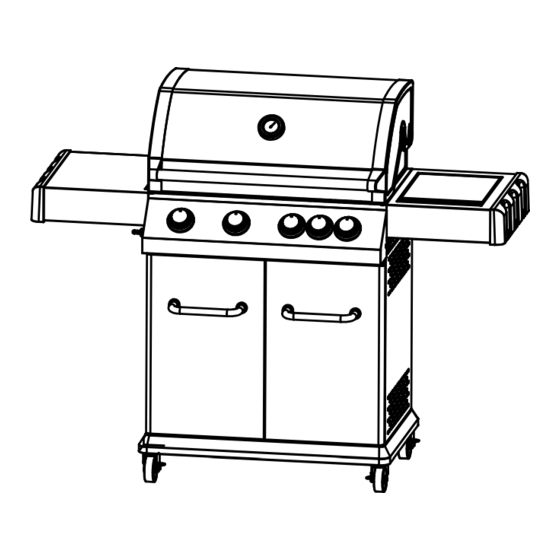

（Drawings for reference only）
Gas BBQ grill
FOR YOUR SAFETY
FOR OUTDOOR USE ONLY
(OUTSIDE ANY ENCLOSURE)
WARNING
1
Advertisement
Related Manuals for Adexa E50N52N24-SB
Summary of Contents for Adexa E50N52N24-SB
- Page 1 � > CATE RI NG EQUIPMENT DIRECT OPERATING INSTRUCTIONS OUTDOOR GAS GRILL （Drawings for reference only） Model No.: E50N52N24-SB Description: Gas BBQ grill WARNING FOR YOUR SAFETY FOR OUTDOOR USE ONLY (OUTSIDE ANY ENCLOSURE) Read this instruction carefully and ensure that your grill is properly installed, assembled, maintained and serviced in accordance to these instructions.
-
Page 2: Use And Characteristics
IMPORTANT: READ ALL INSTRUCTIONS AND OPERATIONS BEFORE OPERATING THIS UNIT. FOLLOW ALL STEPS IN ORDER. NEVER ALLOW CHILDREN TO OPERATE THIS UNIT. Warnings: Only to be used outdoors. Read the instructions before using the appliance. Accessible parts maybe very hot, keep young children away. Do not move the appliance during use. - Page 3 When the wind speed is above 2m/s, don’t use gas grill facing to the wind. The appliance is designed for use outdoors only. Warning! Accessible parts may be very hot. Keep young children away. Read the instructions before using the appliance. Do not move the appliance while in use.
-
Page 4: Mounting Steps
ADEXA DIRECT LIMITED Product name: Outdoor gas Grill Ground Floor, Unit 1, 214 Purley Way, Pin Number: 0063CN7292 Croydon CR0 4XG United Kingdom Serial Number: T:(+44)01483 931040 service@adexa.co.uk www.adexa.co.uk Main Side E50N52N24-SB Burner Burner Country of Gas and Supply Appliance Category... - Page 5 a) Reduce the opening time of the lid. b) Turn the grill off as soon as cooking is completed. c) Preheat the gas grill for 10 to 15 minutes only.(Except for the first use) d) Do not preheat longer then recommended. e) Do not use a higher setting than required.
- Page 6 Figure 1 How to connect a gas bottle a) Turn the orange cap so that the arrow is pointing to the gap in the shroud. b) Remove the orange safety cap by pulling the lanyard out, then out. Do not use tools. Leave the cap hanging.
- Page 7 Warning: Always test gas line for leaks at connector with soap water finishing all connections. How to disconnect a gas bottle a) Except for twin-cylinder installations with a changeover valve, turn off the gas tap if fitted to the appliance. Wait until the burner and pilot light have gone out. For installations with a changeover valve, it is only necessary to switch off the empty cylinder.
- Page 8 Figure 3 WARNING: The Handle Black Area (See Above Picture for Reference) Will Become Hot When the Gas grill In Use, BE CAREFUL! Do Not Touch The Black Area. 6. Safety precautions a) Always test gas line for leaks at connector with soapy water after making connections. b) The top lid must always be open when lighting the burner.
- Page 9 dealer for advice. If the automatic ignition can’t be used, please remove the cooking grill and heat diffuser(hotplate ), and turn the valve anticlockwise to 90°，to light with BBQ lighter in the distance of 5mm to the burner fire hole. Replace the cooking grill and heat diffuser (hotplate), please wear the fireproof and heat resisting gloves.
- Page 10 Maintenance is recommended that every 90 days for your gas grill, but it is absolutely necessary to perform maintenance at least once a year. By doing so, you will extend the life of your gas grill. Your gas grill is easy to clean with minimum effort, just follow these helpful hints for cleaning convenience.
- Page 11 Burner will not light using Gas issues 1. See instructions on control panel and ignitor 1.Trying to light wrong burner section in the Use and Care. 2. Burner not engaged with control valve 2. Make sure valve are positioned inside of 3.
- Page 12 Flashback… Burner and burner tubes are blocked Turn knobs to OFF. clean burner (fire in burner tube(s) and/or burner tubes. See burner cleaning section of use and care manual Flare-up 1. Grease buildup. 1. Clean burners and inside of grill/ 2.
