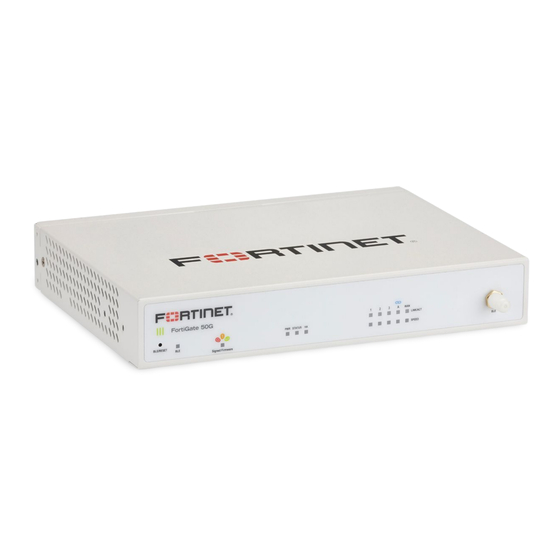

FortiGate 50G DSL
FG-50G-DSL
4/23/2024 6:40:46 PM
4/23/2024 6:40:46 PM

Advertisement

loading
Need help?

Need help?

Do you have a question about the FortiGate 50G DSL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fortinet FortiGate 50G DSL

  • Page 1 QuickStart Guide FortiGate 50G DSL FG-50G-DSL FG-50G-DSL-QSG-20240423.indd 1 FG-50G-DSL-QSG-20240423.indd 1 4/23/2024 6:40:46 PM 4/23/2024 6:40:46 PM...
  • Page 2 FortiGate Cloud Experience simplified cloud provisioning, security analytics, remote access, hosted log retention and reporting at https://fortigate.forticloud.com FortiExplorer Go Rapidly provision, deploy and manage your Fortinet Security Fabric Platform, free on iOS and Android: https://docs.fortinet.com/product/fortiexplorer-go/ FG-50G-DSL-QSG-20240423.indd 2 FG-50G-DSL-QSG-20240423.indd 2 4/23/2024 6:40:46 PM...
  • Page 3: Package Contents

    Package Contents FortiGate 50G DSL FG-50G-DSL 1x FortiGate Device 1x QuickStart Guide 3x AC Adapter Plugs 1x DC Power Adapter (US, EU, UK) 1x Ethernet Cable 1x DSL Cable FG-50G-DSL-QSG-20240423.indd 3 FG-50G-DSL-QSG-20240423.indd 3 4/23/2024 6:40:47 PM 4/23/2024 6:40:47 PM...
  • Page 4 Setup FortiExplorer Go Install Enable Follow the on-screen FortiExplorer Go Bluetooth instructions Port 1 If Static IP: 192.168.1.1/24 Ethernet Cable FG-50G-DSL-QSG-20240423.indd 4 FG-50G-DSL-QSG-20240423.indd 4 4/23/2024 6:40:48 PM 4/23/2024 6:40:48 PM...
  • Page 5 None (available for purchase) Flow Control: None Console Port FortiGate Cloud Login to https://fortigate.forticloud.com using your Fortinet Credentials, then click Add FortiGate and enter the Cloudkey Internet Ethernet Cable WAN port FG-50G-DSL-QSG-20240423.indd 5 FG-50G-DSL-QSG-20240423.indd 5 4/23/2024 6:40:48 PM 4/23/2024 6:40:48 PM...
  • Page 6 Front FG-50G-DSL FortiGate 50G DSL LINK/ACT STATUS xDSL BLE/RESET Signed Firmware BLE / RESET Press to enable BLE; press and hold for system reset Blue: BLE connected Flashing Blue: BLE in discovery Off: BLE not connected Signed Firmware BIOS Security Level Controlled by Signed Firmware Switch, see Admin Guide at https://docs.fortinet.com...
  • Page 7 LINK/ACT LINK/ACT xDSL SPEED LINK/ACT Green: DSL connected Green: Power detected Green: DSL activity Flashing Off: Power not detected Off: DSL not connected STATUS xDSL Green: VDSL connection Green: Operating normally Amber: ADSL connection Green: Booting up Flashing Off: No DSL connection Off: Device is off Green: HA enabled (normal) Amber: HA enabled (failover)
  • Page 8 Rear FG-50G-DSL Signed Firmware Power Input 12V DC, 100-240V AC, 50/60Hz adapter USB 3.0 Port (USB-A) CONSOLE Port (RJ-45) CLI management Signed Firmware Switch FG-50G-DSL-QSG-20240423.indd 8 FG-50G-DSL-QSG-20240423.indd 8 4/23/2024 6:40:48 PM 4/23/2024 6:40:48 PM...
  • Page 9 DSL Port (RJ-11) Ports (5x RJ-45) WAN, A – FortiLink, 3, 2, 1 FG-50G-DSL-QSG-20240423.indd 9 FG-50G-DSL-QSG-20240423.indd 9 4/23/2024 6:40:48 PM 4/23/2024 6:40:48 PM...
  • Page 10: Cautions And Warnings

    Cautions and Warnings Environmental specifications Ambient operating temperature: 0°C to 40°C Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude) Référez à la Fiche Technique de ce produit pour les caractéristiques environnementales (Température de fonctionnement, température de stockage, humidité et l’altitude). Safety Battery –...
  • Page 11: Regulatory Notices

    REN without a decimal point (e.g., 03 is a REN of 0.3). If you experience trouble with this equipment, for repair or warranty information, please refer to Fortinet’s End-User License Agreement which set forth the terms and limitation of Fortinet’s product warranty and contact the following address and phone number for additional information.
  • Page 12 EU or countries that have implemented the EU Directives and/or spectrum regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s authorized partners may not comply with EU Directives and Fortinet makes no assurances for such products.
  • Page 13 Denna produkt överensstämmer med direktiv 2014/53/EU. Note: The full Declaration of Conformity for this product is available in the link below: https://site.fortinet.com/ProductRegulatory/EU UK Conformity Assessed (UKCA) – United Kingdom The product transmits within the frequency ranges and less than or equal to the power listed below:...
  • Page 14 FG-50G-DSL-QSG-20240423.indd 14 FG-50G-DSL-QSG-20240423.indd 14 4/23/2024 6:40:49 PM 4/23/2024 6:40:49 PM...
  • Page 15 FG-50G-DSL-QSG-20240423.indd 15 FG-50G-DSL-QSG-20240423.indd 15 4/23/2024 6:40:49 PM 4/23/2024 6:40:49 PM...
  • Page 16 Copyright © 2024 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered trademarks of Fortinet, Inc., and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners.
