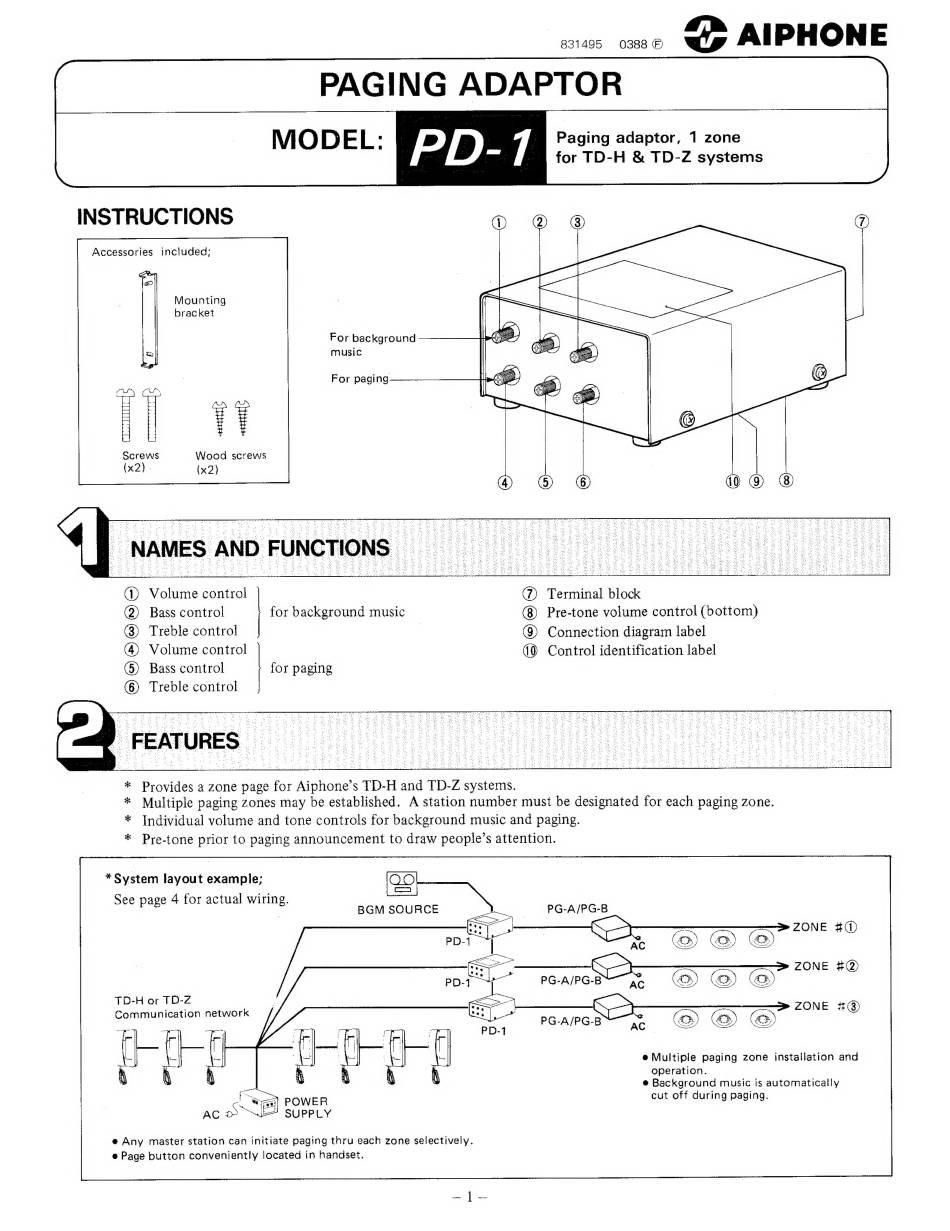

Aiphone PD-1 Quick Start Manual

831495 0388 © D AIPHONE
PAGING ADAPTOR
INSTRUCTIONS
Accessories included;
Mounting
bracket
For background
music
For paging:
Wood screws
(x2)
M Volume control D Terminal block
@ Bass control for background music Pre-tone volume control (bottom)
®© Treble control @) Connection diagram label
4) Volume control Control identification label
(5) Bass control for paging
(6) Treble control
Provides a zone page for Aiphone's TD-H and TD-Z systems.
Multiple paging zones may be established. A station number must be designated for each paging zone.
Individual volume and tone controls for background music and paging.
Pre-tone prior to paging announcement to draw people's attention.
* System layout example; Qo!
See page 4 for actual wiring.
BGM SOURCE a. PG-A/PG-B
* * + <
ZONE #@
ZONE #@
TD-H or TD-Z
Communication network
'
|
= =
= ZONE
#8)
ə Multiple paging zone installation and
operation.
è Background music is automatically
cut off during paging.
z= SUPPLY
è Any master station can initiate paging thru each zone selectively.
e Page button conveniently located in handset.
