Aiphone KCS-IFA Instructions

The KC-IFA is a network video interface adaptor that allows the Aiphone color video door station to be connected
through a video server (not supplied by Aiphone) to any PC connected to a LAN or WAN network. This provides
audio and video identification and access control for a person at the camera location, answered from a PC.

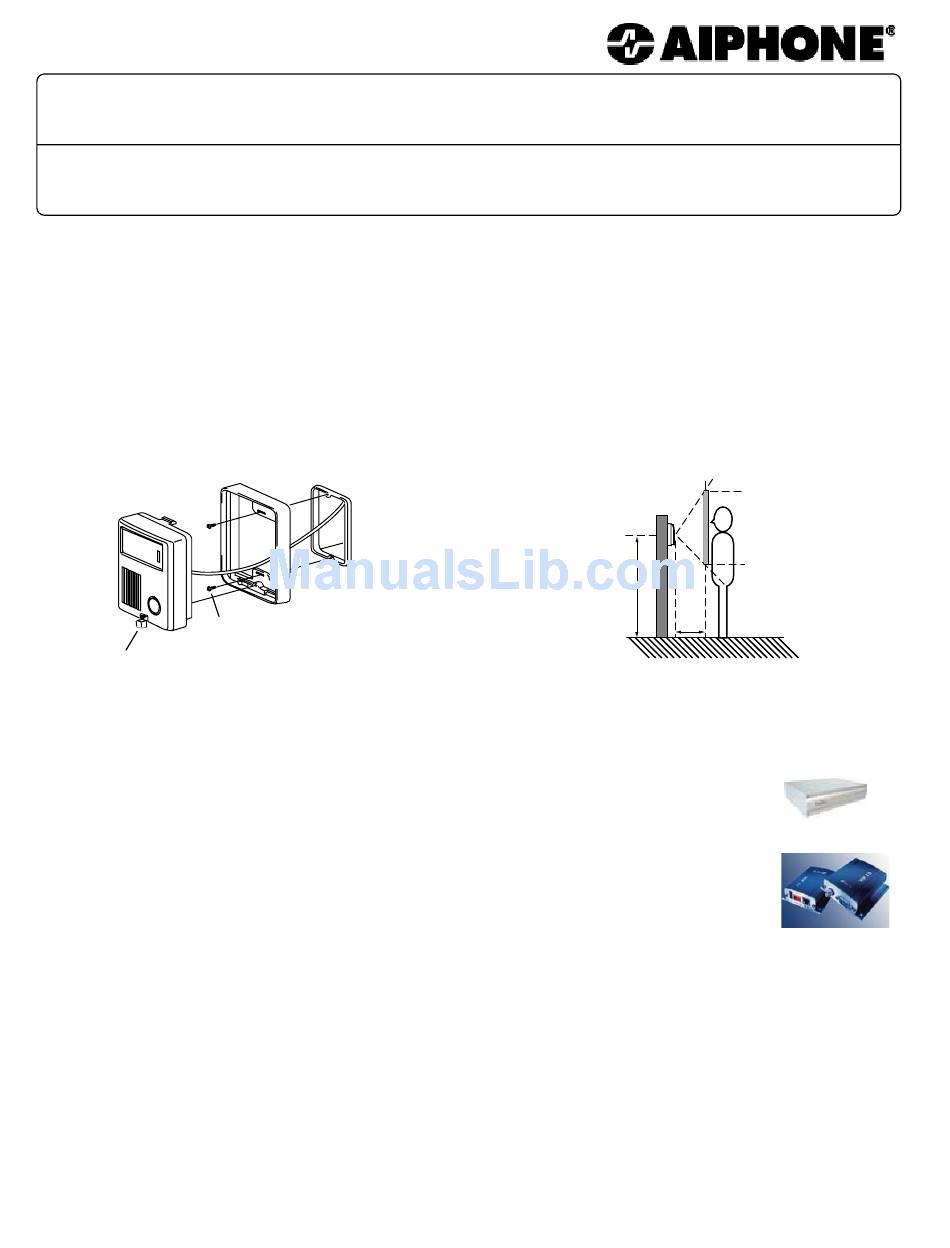

DOOR STATION INSTALLATION:
1. The KC-DAR should be mounted between 48-52" above finished floor, or at optimum height for the application.
(See illustrations below.)
2. Install KC-DAR to 1-gang box or ring, or directly to wall surface with appropirate hardware.
3. Use 2 conductor, 18AWG non-shielded wire from KC-DAR to KC-IFA. (Aiphone #871802)
Back frame
KC-DAR
Screws supplied (2)
Tamperproof
screw & cover
The KCS-IFA System interfaces with a Network Video Server.
Aiphone has evaluated and approved the following manufactures' products for use with the KC-IFA:
BRAND: MODEL:
Inscape Data NVS-410
http://www.inscapedata.com/pdf/nvs410.pdf
VCS VIP 10
http://www.controlware.de/cwp/daten/PDFs/Datenblatt_VIP10.pdf
NOTE: RS232 programmable relay controller can be interfaced with most video servers to control
The Tilt function of the video door station. Contact Technical Support for more information.
TERMINAL DEFINITIONS:
A1/A2: KC-DAR Connection
+/-: DC 24V Input
BNC Connector: Video Output
NO,NC,COM: Call-in Output
OUT/GND: Audio Output
IN/GND: Audio Input
UP: Tilt Control Up ("Lo" active)
DN: Tilt Control Down ("Lo" active)
GND: Tilt Control Ground
KC-IFA
Network Video Interface Adaptor
KCS-IFA Set includes:
KC-IFA, KC-DAR, PS-2420UL
- INSTRUCTIONS -
Single-gang box
83.5mm
(3-5/16")
NOTES:
Two relay outputs (One for door release)
Software Included
One relay output for door release
SPECIFICATIONS:
Power Source:
Consumption
Video Out:
Audio In:
Audio Out:
Call-in Signal:
Tilt Up/Down:
Weight:
Dimensions:
KC-DAR to KC-IFA:
Mounting height
250cm (8'3")
Unit
center
130cm (4'3")
150cm (5')
50cm
(20")
24VDC, 1A
400mA, Max.
NTSC, 1Vp-p
10k Ohm
600 Ohm
N/O – COM – N/C, 24V DC@ 1A
(Present at .5 sec.; adjustable to 30 sec.)
TTL/CMOS low level control
4.3 lbs
1.7"H x 7.9"W x 9"D
2 parallel wires, non-polarized (#871802)
22 AWG = 165', 18 AWG = 330'
NVS-410
VIP10
