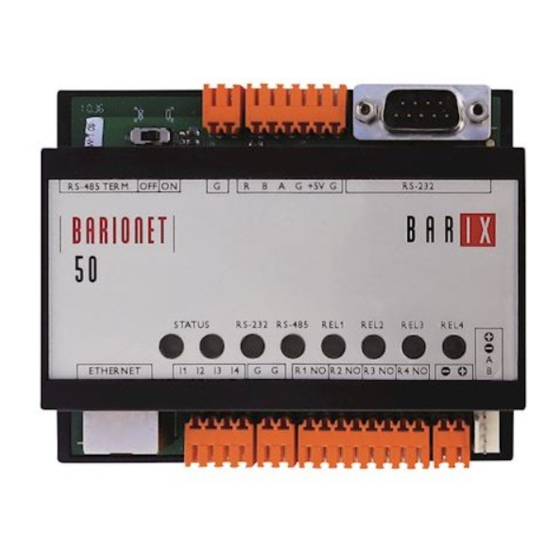

- Page 1 1016 IS-IPRY Input/Output Network Adaptor Programming Manual For use with IX Series & IS-IP Series...
-
Page 2: Package Contents
The IS-IPRY is required when running IX Mobile app on a mobile device. The IS-IPRY will function as the IX Series app server. Up to 8 mobile devices can be employed per server. The IS-IPRY will alert the mobile device if it goes out of wireless network range. - Page 3 IX Series: Uploading SIF.ini File Upload the SIF.ini file to each IX Series station associated with the IS-IPRY adaptor. ! The IX Support Tool or web browser interface can be used to upload the SIF.ini file to each station. Loading via the IX Support Tool is shown in these instructions.
- Page 4 IS-IP Series: Uploading SIF.ini File Upload the SIF.ini file to each IS-IP Series station associated with the IS-IPRY adaptor. ! Note that the IP address for each station will be unique for your network settings. Important: The intercom system must be fully programmed and operational prior to uploading the SIF.ini file.
- Page 5 The Aiphone system type that the relay is being integrated with will need to be selected. Click the AIPHONE tab. Use the drop down by System Type to select the appropriate system. Once selected, click OK. Click Reboot on the next screen to restart the adaptor.
- Page 6 Settings under the Function Settings tree in the IX Support Tool. When the relay action is set for the “Door Release” options, the relay on the IS-IPRY will trigger when the associated station is calling or communicating and its door release contact is triggered.
- Page 7 IX Series: Input Programming The IS-IPRY adaptor has 4 inputs that can be programmed to trigger a call-in from a specific door station or master station to a specific master station or group of master stations. The IS-IPRY inputs can have different calling rules than the default calling rule set during the IX Series programming.
- Page 8 IS-IP Series: Relay Output Programming (cont.) Linked Stations Table: Enter the IP address and TermID for each IS-IP station in the IS configuration. This table is used as a reference for each TermID in the system. After inputting each IP address and TermID, click Apply Settings at the bottom of the page to save the settings to memory.
- Page 9 Input Programming The IS-IPRY adaptor has 4 inputs that can be programmed to trigger a call-in from a specific door station to a specific master station or group of master stations (max. 20). The IS-IPRY inputs can have different calling rules than the default calling rule set under Advanced Station Settings in the IS Host Programming.
-
Page 10: Mobile Server
Important: - An IX-MV master station and an IS-IPRY adaptor are required in the system for the IX Mobile App to work - - The IX Series hardware devices must be programmed and operational prior to adding the IX Mobile device -... - Page 11 Adding a Mobile Device to the IX Support Tool • Open the IX Support Tool and log in to the system being programmed. Expand the Station Information tree and click on Identification. On the next available line, assign a Number*, Name*, and select Master Station as the Type for the mobile app. Repeat steps 1-3 for each instance of IX Mobile app that needs to be added to the system.
-
Page 12: Configuration File
• A pop-up will appear saying “All stations will be set for door release. Continue?” Click OK. Another pop-up will appear saying “Door release settings complete.” Click Repeat the process for each mobile master station added to the system. Click the button to save changes. - Page 13 Default ID: admin Default Password: admin Tap App Server. Enter the IP Address and Port Number for the App Server (IS-IPRY). Refer to page 11 for information on setting up the App Server. Tap Import from File. Select the configuration file that was transferred to this device in Step 3.
- Page 14 Default ID: admin Default Password: admin Tap App Server. Enter the IP Address and Port Number for the App Server (IS-IPRY). Refer to page11 for information on setting up the App Server. Tap Import from File. Select the configuration file that was transferred to this device in Step 5.
- Page 15 Strike Relay 3 Relay 3 Bell Relay 4 Relay 4 Power: Inputs: Use the Aiphone Power supply PS-1215DIN or PS-2420D Connect a normally open (N/O) contact across any input and ground. Input 1 PS-1215DIN Input 2 PS-2420D Input 3 Input 4...
