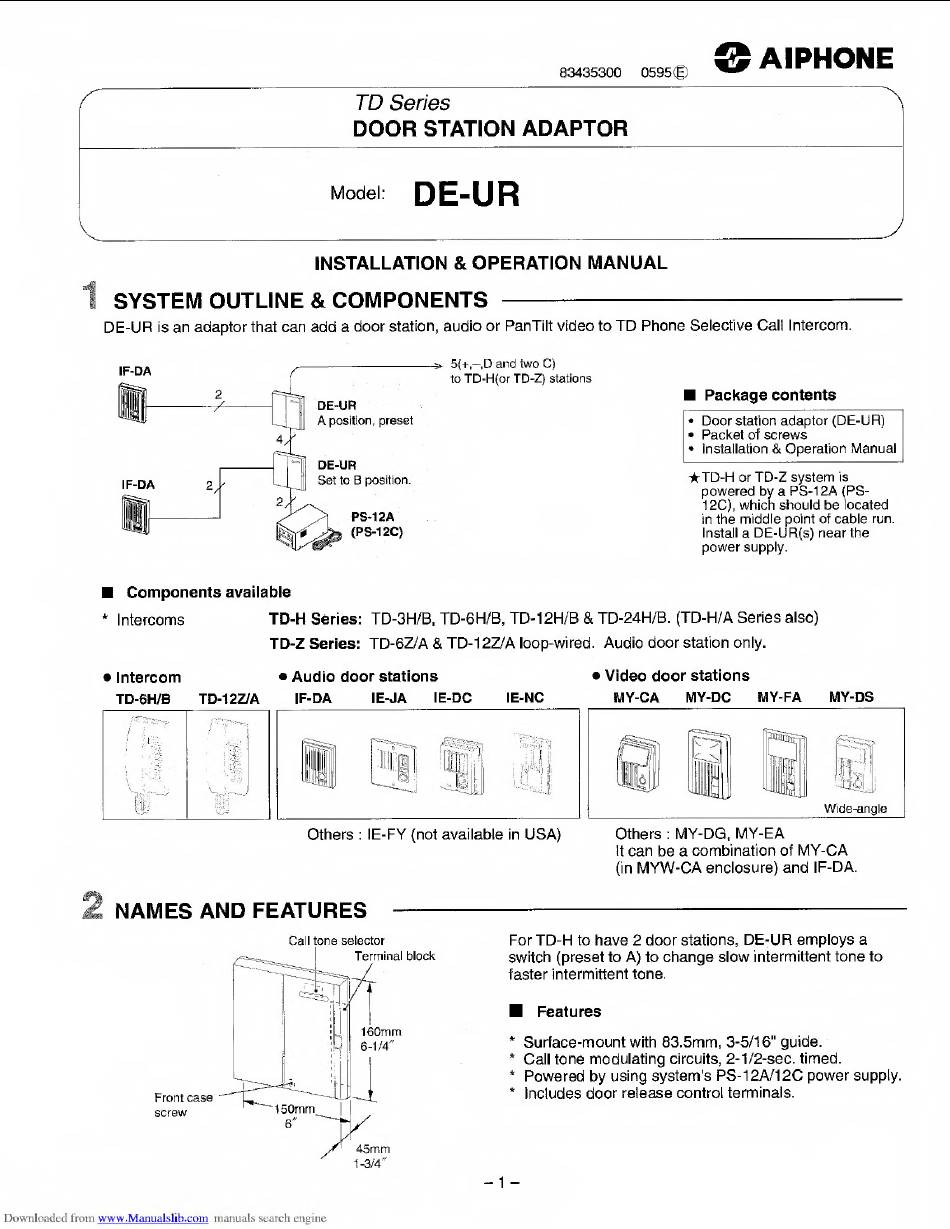

Aiphone TD Series Installation & Operation Manual

83435300 0595©
0 AIPHONE
f
TD Series
DOOR STATION ADAPTOR
Model:
DE"UR
J
INSTALLATION & OPERATION MANUAL
1 SYSTEM OUTLINE & COMPONENTS -
DE-UR is an adaptor that can add a door station, audio or PanTilt video to TD Phone Selective Call Intercom.
■ Package contents
■ Components available

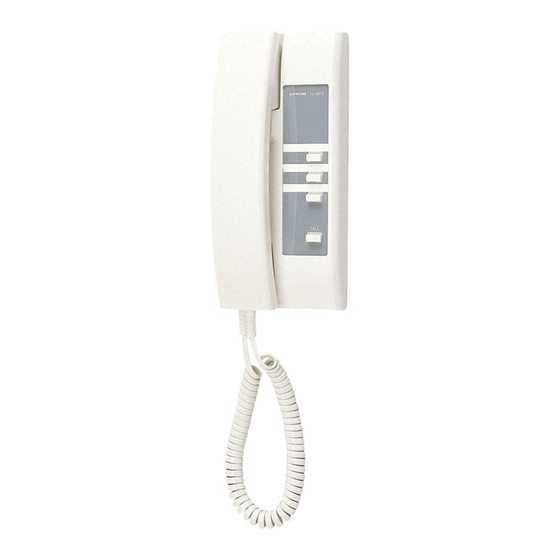

* Intercoms TD-H Series: TD-3H/B, TD-6H/B, TD-12H/B & TD-24H/B. (TD-H/A Series also)
TD-Z Series: TD-6Z/A & TD-12Z/A loop-wired. Audio door station only.
i Intercom • Audio door stations • Video door stations
TD-6H/B TD-12Z/A IF-DA IE-JA IE-DC IE-NC MY-CA MY-DC MY-FA MY-DS
Others : IE-FY (not available in USA) Others : MY-DG, MY-EA
It can be a combination of MY-CA
(in MYW-CA enclosure) and IF-DA.
2
NAMES AND FEATURES
For TD-H to have 2 door stations, DE-UR employs a
switch (preset to A) to change slow intermittent tone to
faster intermittent tone.
■ Features
* Surface-mount with 83.5mm, 3-5/16" guide.
* Call tone modulating circuits, 2-1/2-sec. timed.
* Powered by using system's PS-12A/12C power supply.
* Includes door release control terminals.
