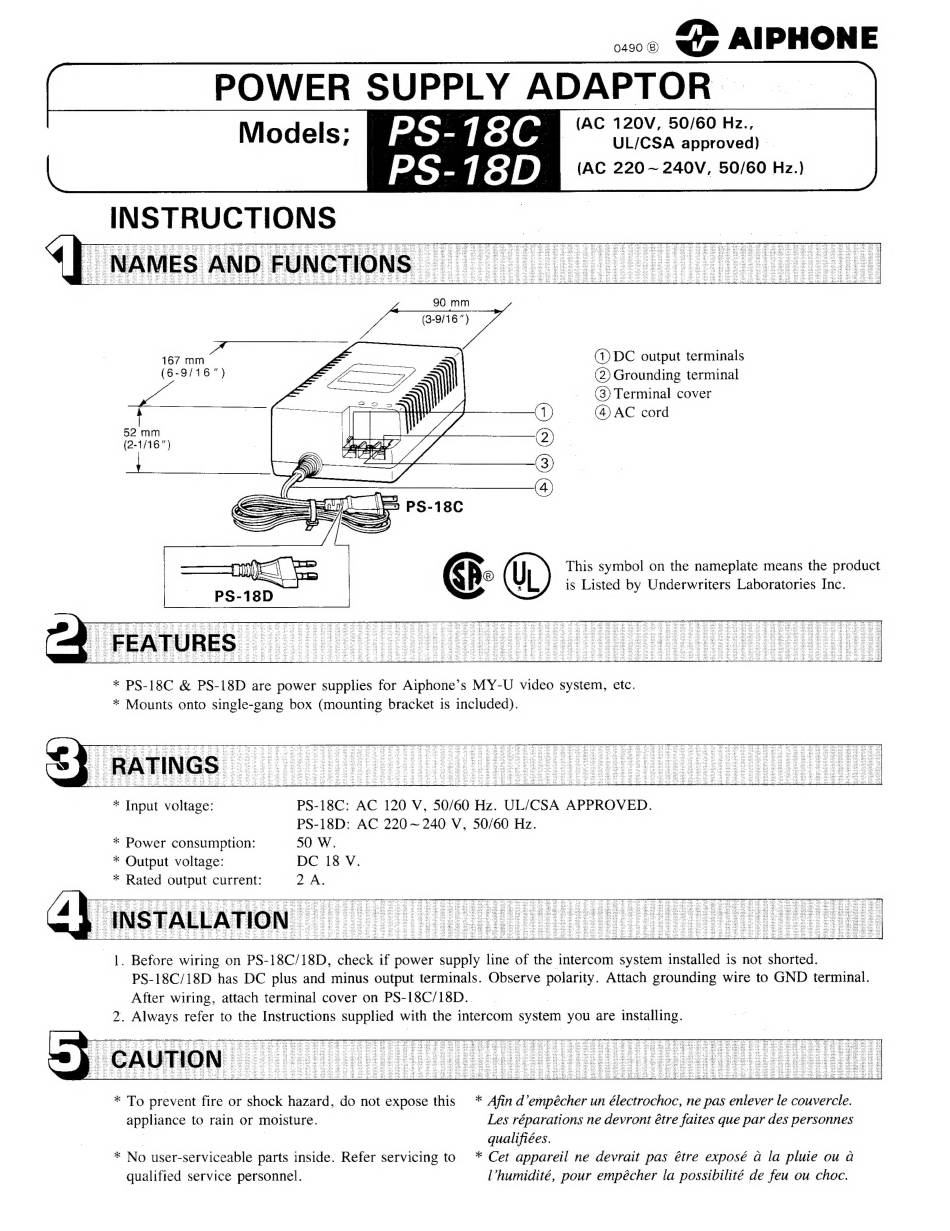

Aiphone PS-18C User Manual

POWER SUPPLY ADAPTOR
(AC 120V, 50/60 Hz.,
UL/CSA approved)
(AC 220 ~ 240V, 50/60 Hz.)
(D) DC output terminals
167 mm
(6-9/16") (2) Grounding terminal
(3) Terminal cover
1 (a) AC cord
2
IE ps-18¢
SP © This symbol on the nameplate means the product
is Listed by Underwriters Laboratories Inc.
* PS-18C & PS-18D are power supplies for Aiphone's MY-U video system, etc.
* Mounts onto single-gang box (mounting bracket is included).
* Input voltage: PS-18C: AC 120 V, 50/60 Hz. UL/CSA APPROVED.
PS-18D: AC 220 ~ 240 V, 50/60 Hz.
* Power consumption: 50 W.
* Output voltage: DC 18 V.
* Rated output current: 2A.
|. Before wiring on PS-18C/18D, check if power supply line of the intercom system installed is not shorted.
PS-18C/18D has DC plus and minus output terminals. Observe polarity. Attach grounding wire to GND terminal.
After wiring, attach terminal cover on PS-18C/18D.
2. Always refer to the Instructions supplied with the intercom system you are installing.
* To prevent fire or shock hazard, do not expose this * Afin d'empécher un électrochoc, ne pas enlever le couvercle.
appliance to rain or moisture. Les réparations ne devront étre faites que par des personnes
| qualifiées.
* No user-serviceable parts inside. Refer servicing to * Cet appareil ne devrait pas être exposé à la pluie ou à
qualified service personnel. l'humidité, pour empêcher la possibilité de feu ou choc.
