Aiphone DAK-2S Quick Manual

Please read and understand all
instructions before installation.
Door
LE-D
1
E
-
* Install bare wire
EL-9S

IMPORTANT!!!

Each master REQUIRES an individual PT-1210N power supply.

OPERATION NOTES:

1. Only one master can be used at a time.
2. If both masters are activated, a feedback will be heard through the system when either
TALK button is pressed.
3. If feedback occurs, press the OFF button on one of the LEM-1DL masters.

INSTALLATION GUIDELINES:

1. Use 2 conductor wire from the door station to the first master, then to the second master.
2. Install the units at the desired locations.
3. Separate PT-1210N power supplies are required for each master station.
4. Install the bare wire leg of the component module directly onto the "1" terminal of the LEM-1DL's.
5. Attach the wire coming form the "1" terminal of the LE-D to the colored wire end of the component modules at both
masters. (The component modules will easily fit within the space available.)
6. Connect the "E" terminals between the door station and master stations.
7. If door release is included, use a separate 2-conductor wire from the "EL" terminals of the masters through an AC
transformer and to the door strike.
8. The EL-9S is designed for a standard wood framed door, and for light and medium usage. If a different type of door is
used, install a strike appropriate for the door.
9. The door release button on the master station is a "Normally Open" contact closure.
Aiphone Communication Systems
1700 130th Ave. N.E.
Bellevue, WA 98005
(425) 455-0510
FAX (425) 455-0071
Dual Adaptor Kit for 2 Station Systems

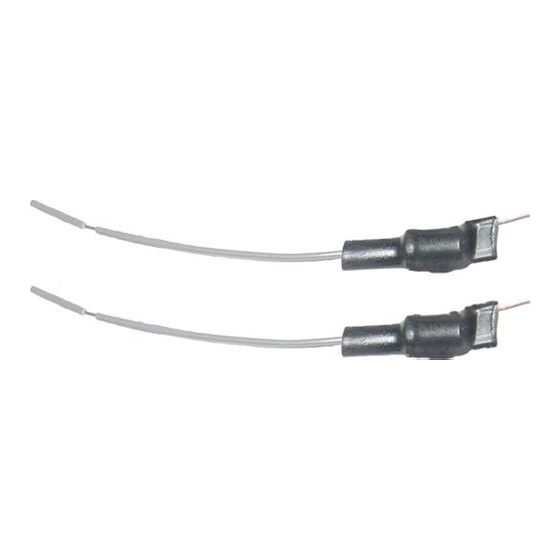

DAK-2S Includes: 2 component modules

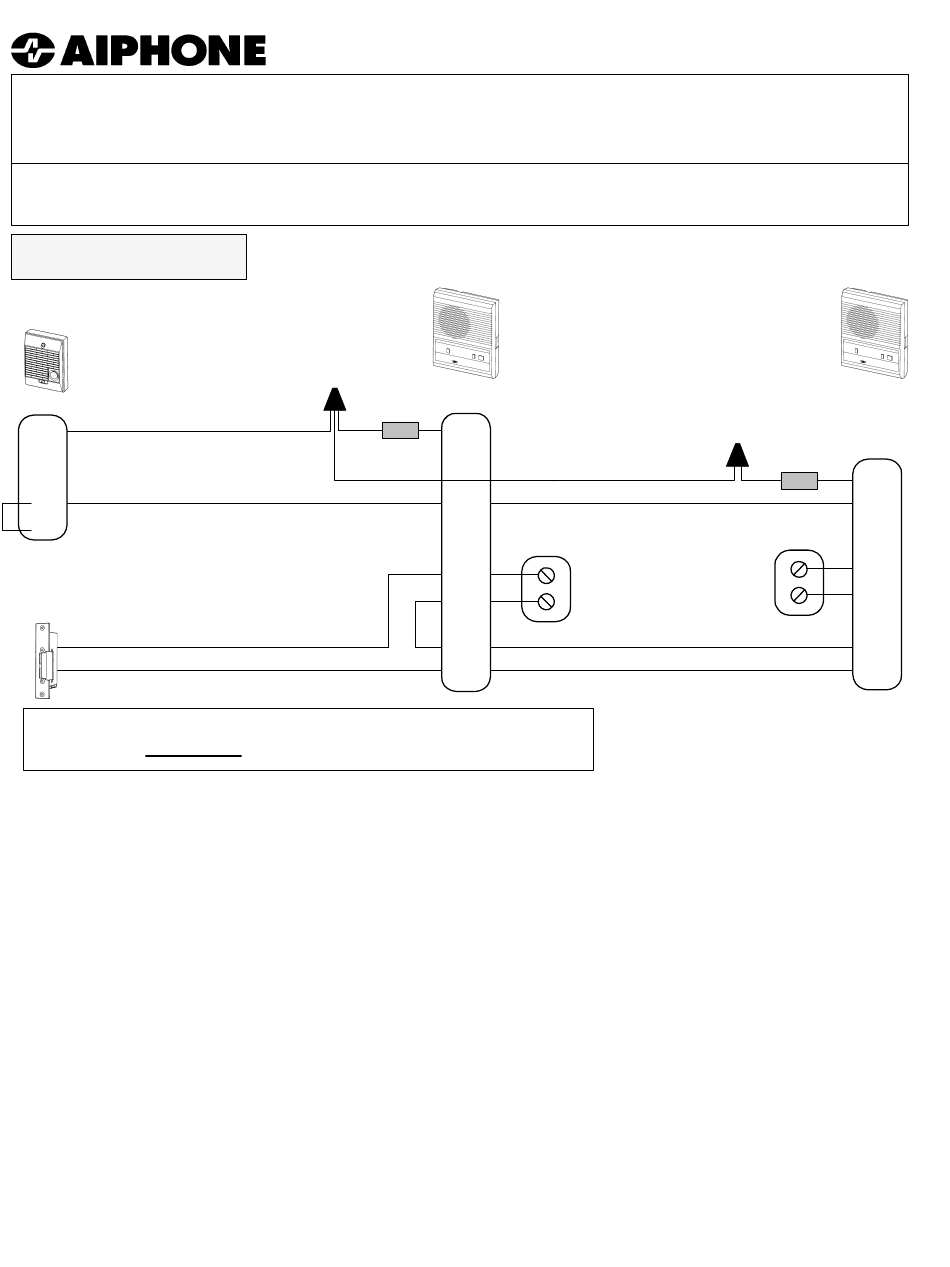

- DAK-2S with LEM-1DL SYSTEM -
Component
Module*
end to "1" terminal
(DAK-2S contains two
component modules)
TOLL FREE TECHNICAL SUPPORT:
E-MAIL: tech-serv@aiphone.com
DAK-2S
Master #1
LEM-1DL
1
E
PT-1210N
+
-
EL
EL
(800) 692-0200
TOLL FREE FAX LINE:
(800) 832-3765
Master #2
LEM-1DL
Component
Module*
1
E
PT-1210N
+
-
EL
EL
DAK-2S Instr.
0301bkjd
