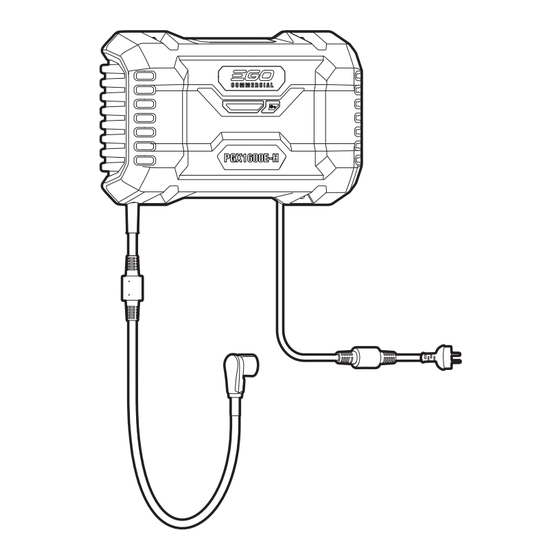

- Page 1 COMMERCIAL OPERATOR'S MANUAL COMMERCIAL CHARGING 1600W HUB MODEL NUMBER PGX1600E-H WARNING: To reduce the risk of injury, the user must read and understand the Operator’s Manual before using this product. Save these instructions for future reference. MNL_EGO_PGX1600E-H_AV01.01_240403...
- Page 2 5. Rubber Block (2) 1. Hub-Status Indicator 2. Power Cord 6. Wall-mount Hole (4) 3.Collar 4. Connector 9. AC Status Indicator POWER BANK* 7. Dock Status Indicator 10. Battery-bay status Indicator (3) DOCK* 8. Battery-bay status Indicator (3)
- Page 3 ≤30 ≤30 ≤30 NOTICE: Only use one hub in a charging system! Using two hubs the system does not work.
- Page 4 ≤30 Rubber Block (2) E-track Clip(2) E-track Rail Rubber Bolt and washer set (2) Bumper(2) 254 mm...
-
Page 5: Safety Symbols
READ ALL INSTRUCTIONS! Regulatory This product complies Compliance with applicable Australian Mark standards. READ OPERATOR’S MANUAL Waste electrical products should not be disposed of with WEEE household waste. Take to an WARNING: To ensure safety and reliability, all authorized recycler. repairs should be performed by a qualified service Alternating Type or a characteristic of... -
Page 6: Electrical Safety
◾ ◾ This appliance can be used by children aged from 8 This hub can work with EGO Dock PGX3000D to years and above and persons with reduced physical, charge the EGO battery packs list below: sensory or mental capabilities or lack of experience... -
Page 7: Extension Cords
The cord is properly wired and in good electrical shock. If damaged, have the hub repaired or replaced condition. by an authorized service technician at an EGO Service ◾ The size is large enough for AC ampere rating of hub Centre. -
Page 8: Recommended Accessories
For the charging sequence of the battery packs in a well-ventilated area (for hubs for battery packs in the same dock/power bank, refer to the operator’s manuals of EGO Dock PGX3000D and EGO Power bank that release gases into the atmosphere during normal PGX1400PB. - Page 9 Hub, Dock & Power Bank Indicators DOCK POWER BANK Battery- Hub Status Dock Status AC Status Battery-bay Hub Status bay Status Indicator Indicator Indicator Status Indicator(s) Indicator(s) Standby (no battery to charge) Solid green Solid green Solid green Normal Flashing green Solid green Flashing green Solid green...
-
Page 10: Mounting The Hub
(Fig. E) damage, weaken or destroy plastic which may result in serious personal injury. EGO E-track mounting kit is required to mount the hub onto an E-Track rail. Disconnect the hub from power outlet. Remove the two rubber blocks shown in Fig. D1. -
Page 11: Protecting The Environment
Use of any other parts may create a hazard or cause product damage. To ensure safety and reliability, all repairs should be performed by a qualified service technician at an EGO Service Centre. When not in use, store the machine in door. PROTECTING THE ENVIRONMENT... -
Page 12: Troubleshooting
1. Hub is too hot. 1. Unplug the hub from power supply and wait until the hub cools down, then reconnect the plug to The hub status the power supply. If it does not work, call EGO indicator glows solid Service Centre. red. - Page 13 Contact EGO Service Centre for the dock The dock is faulty. battery-bay status replacement. indicator flash red. Contact EGO Service Centre for the power bank The power bank is faulty. The power bank replacement. status indicator The power bank’s fan is blocked or Contact EGO Service Centre for service or flashes red.
-
Page 14: Warranty Policy
EGO accessories is 90 days for residential purpose, 30 days for industrial, professional or commercial purpose. These parts are covered for 90/30 days from manufacture defects in normal working conditions. - Page 15 PROFESSIONAL USE (ANY PRODUCT OR MODEL # CONSUMER USE COMMERCIAL, AGRICULTURAL, (PERSONAL, HOUSEHOLD USE) INSTITUTIONAL, OR INCOME-PRODUCING USE) EGO Power+ Outdoor Power Equipment and 5 years 1 year Portable Power Products EGO Power+ Battery Packs and Chargers 3 years 1 year...
