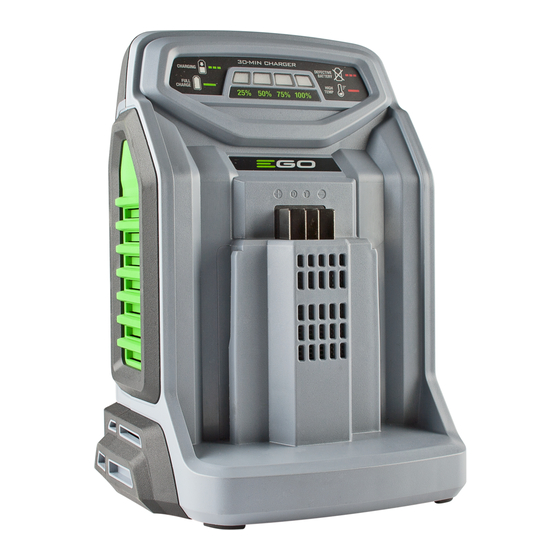

EGO CH5500E Operator's Manual
56 volt rapid charger
Hide thumbs
Also See for CH5500E:
- Operator's manual (65 pages) ,
- Operator's manual (112 pages) ,
- Manual (237 pages)
Table of Contents
Related Manuals for EGO CH5500E
Summary of Contents for EGO CH5500E
- Page 1 OPERATOR’S MANUAL 56 VOLT RAPID CHARGER MODEL NUMBER CH5500E WARNING: To reduce the risk of injury, the user must read and understand the Operator’s Manual before using this product. Save these instructions for future reference.
- Page 2 3. LED Indicators 4. Electrical Contacts 2. Cooling Air Port 1. Mounting Slot 5. Soft Grip 6. Wall Mounting Hole LED 1 LED 2 LED 3 LED 4...
-
Page 3: Safety Symbols
Operator’s Manual, including all safety alert symbols such as “DANGER,” “WARNING,” ◾ Do not operate the EGO charger in explosive and “CAUTION” before using this tool. Failure to follow all environments, such as in the presence of instructions listed below may result in electric shock, fire, flammable liquids, gases, or dust. - Page 4 Maintenance shock. If damaged, have the charger repaired or instructions may create a risk of shock or injury. replaced by an authorized service technician at an EGO SAFETY RULES FOR CHARGER Service Center. ◾...
-
Page 5: Important Safety Instructions
Wait until the cooling fan stops, remove the battery pack from the charger and disconnect the Approximately 45 minutes for charger from the power supply. BA3360 battery pack. Approximately 60 minutes for BA4200 battery pack. 56 VOLT RAPID CHARGER — CH5500E... - Page 6 Shining green continuously Charged 100% nance charging. Battery pack is performing self-maintenance or in Self-main- Intermittently quick flashing in Approx. — sleep mode. Reinstall the tenance green battery pack on the charger to recharge it fully. 56 VOLT RAPID CHARGER — CH5500E...
-
Page 7: General Maintenance
LED1 reliability, all repairs should be performed by a qualified goes out, then reconnect the plug to the power service technician at an EGO Service Center. supply. If LED1 on charger still display defective, the charge may be defective. -
Page 8: Troubleshooting
Charger doesn’t work Battery pack is too hot or Allow the battery pack to reach normal temperature. Charging and LED1 shines red. too cold. will begin when battery pack returns to 3°C-57°C. 56 VOLT RAPID CHARGER — CH5500E... -
Page 9: Service / Warranty
New Zealand 0508 000 EGO (0508 000 346) any time you have questions or warranty claims. SERVICE WARRANTY FOR THREE YEARS from the date of original retail purchase, the EGO Power+ System Battery Pack and Charger are warranted against defects in material or workmanship. Defective product will receive free repair.
