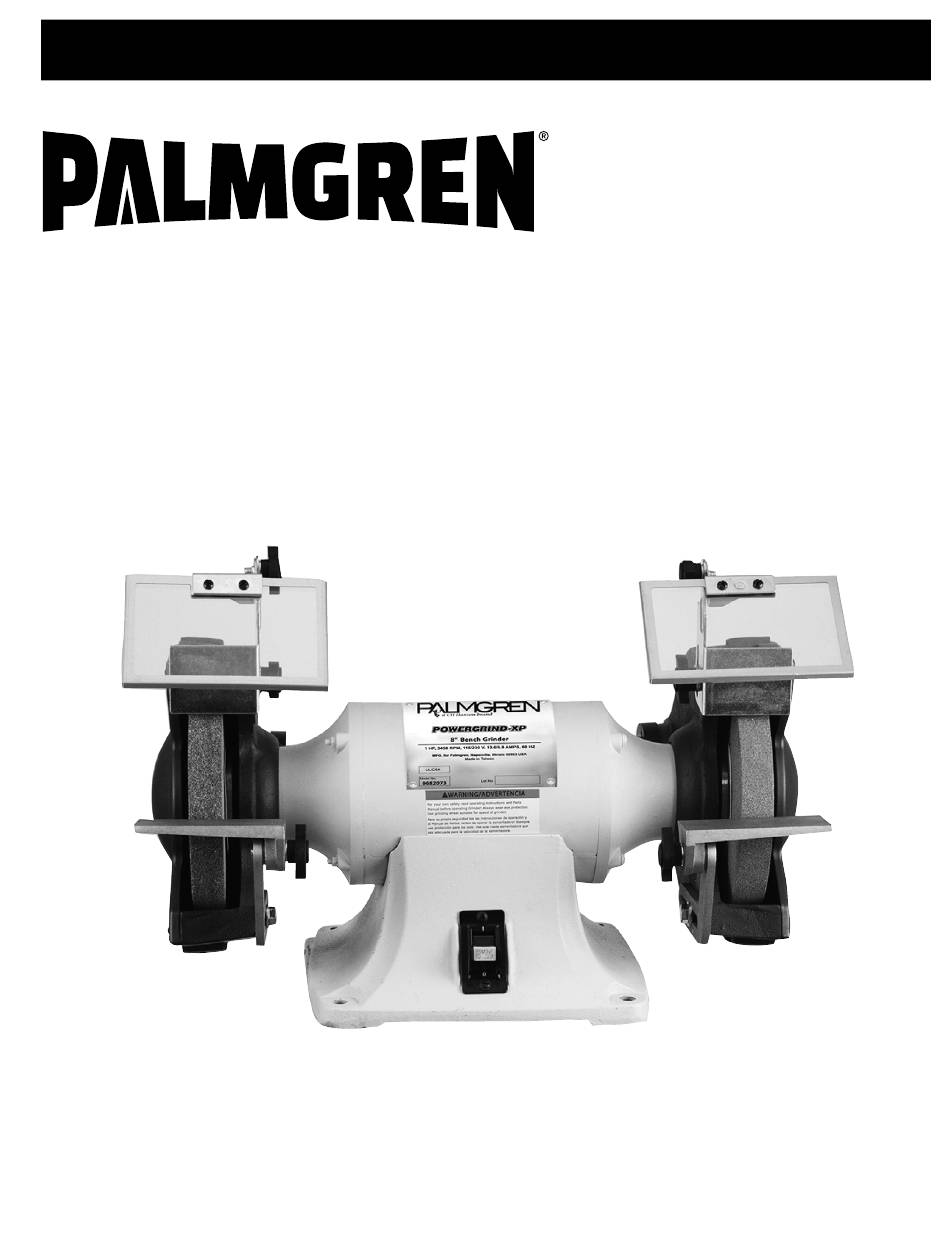

- Page 1 Operating Manual & Parts List 9682072A, 9682073A & 9682075A 6˝, 8˝, & 10˝ Bench Grinders Esmeriladoras de Banco Touret à Meuler Read carefully and follow all safety rules and operating instructions before first use of this product. 965078601-0823...
-
Page 2: Getting Started
Palmgren Operating Manual & Parts List 9682072A, 9682073A & 9682075A • To be certain the grinding wheels have not been damaged in GETTING STARTED shipment, strike the edges slightly with a metal object. A ringing sound indicates a good wheel, but a dull noise may signal a fracture. -
Page 3: Specifications
Palmgren Operating Manual & Parts List 9682072A, 9682073A & 9682075A SAFETY RULES (CONTINUED) SPECIFICATIONS TOOL SHOULD BE MAINTAINED • Always unplug tool prior to inspection. 9682072A 9682073A 9682075A • Consult manual for specific maintaining and adjusting Horsepower 1 ½ procedures. -
Page 4: Installation
Palmgren Operating Manual & Parts List 9682072A, 9682073A & 9682075A ASSEMBLY (CONTINUED) • To mount grinder to wooden bench top, use 1/4 x 1¼˝ wood screws with flat washers beneath heads. Tighten screws until space between grinder base and bench top is 1/8˝ (base should be flush for 9682075A). -
Page 5: Operation
Model 9682075A replacement wheels must have a minimum Not Recommended rated speed of 1800 RPM. • Maximum wheel diameter is 6˝ for 9682072A, 8˝ for 9682073A, ELECTRICAL CONNECTIONS and 10˝ for 9682075A. WARNING: All electrical connections must be performed by a qualified •... -
Page 6: Troubleshooting
Palmgren Operating Manual & Parts List 9682072A, 9682073A & 9682075A TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION Grinder won’t start 1. Blown line fuse or tripped circuit breaker 1. If fuse is blown, replace with fuse of proper size. If breaker tripped, reset it 2. - Page 7 Palmgren Operating Manual & Parts List 9682072A, 9682073A & 9682075A NOTES...
- Page 8 Palmgren Operating Manual & Parts List 9682072A, 9682073A & 9682075A...
- Page 9 Palmgren Operating Manual & Parts List 9682072A, 9682073A & 9682075A...
- Page 10 Palmgren Operating Manual & Parts List 9682072A, 9682073A & 9682075A EN10...
- Page 11 Palmgren Operating Manual & Parts List 9682072A, 9682073A & 9682075A EN11...
- Page 12 Palmgren Operating Manual & Parts List 9682072A, 9682073A & 9682075A EN12...
- Page 13 Palmgren Operating Manual & Parts List 9682072A, 9682073A & 9682075A EN13...
- Page 14 Palmgren Operating Manual & Parts List 9682072A, 9682073A & 9682075A NOTES EN14...
- Page 15 9682072A, 9682073A & 9682075A PALMGREN WARRANTY C.H. Hanson / Palmgren warrants their products to be free of defects in material or workmanship. This warranty does not cover defects due directly or indirectly to misuse, abuse, normal wear and tear, failure to properly maintain the product, heated, ground or otherwise altered, or used for a purpose other than that for which is was intended.
