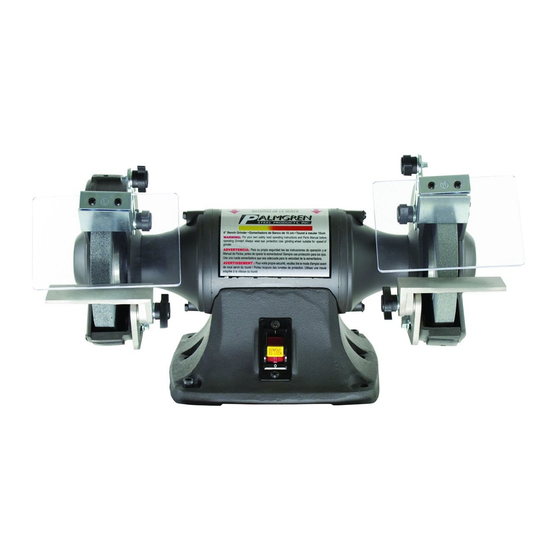

operating manual & parts list 82061B, 82062B, 82071B, 82081B & 82101A
6", 7", 8" & 10"
BENCH GRINDER
Read carefully and follow all safety rules and operating instructions before
first use of this product.
25139.19-0407

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 82061B and is the answer not in the manual?

Questions and answers

Summary of Contents for Palmgren 82061B

  • Page 1 & parts list 82061B, 82062B, 82071B, 82081B & 82101A 6″, 7″, 8″ & 10″ BENCH GRINDER Read carefully and follow all safety rules and operating instructions before first use of this product. 25139.19-0407...
  • Page 2: Specifications

    Rotation (viewed from left side) ......Clockwise Palmgren Bench Grinders are equipped with a totally enclosed ball Wheel diameter .
  • Page 3: Eyeshield Assembly

    • Do not over tighten wheel nut. Replace cracked wheel immedi- ately. Use only flanges supplied with the grinder. Figure 1 – Left Tool Rest and Eyeshield Assembly (82061B) • Adjust distance between wheel and tool rest to maintain ” or •...
  • Page 4: Installation

    Palmgren Operating Manual & Parts List 82061B, 82062B, 82071B, 82081B & 82101A • Mount right tool rest in a similar manner. ASSEMBLY (CONTINUED) EYESHIELD ASSEMBLY ASSEMBLY - 82062B, 82071B, 82081B AND 82101A • Remove ” wing nut (R) and ” flat washer (C) from -16 x 1¼”...
  • Page 5: Electrical Connections

    Palmgren Operating Manual & Parts List 82061B, 82062B, 82071B, 82081B & 82101A INSTALLATION (CONTINUED) EXTENSION CORD LENGTH for Models 82061B, 82062B, 82071B and 82081B • Grounding plug should be plugged directly into a properly Wire Size ...........A.W.G.
  • Page 6: Maintenance

    • Model 82101A: Replacement wheels must have a minimum MAINTENANCE rated speed of 1800 RPM. • Maximum wheel diameter is 6” for 82061B and 82062B, 7” for • As wheels wear, tool rests should be positioned closer to the 82071B, 8” for 82081B, and 10” for 82101A.
  • Page 7: Troubleshooting

    Palmgren Operating Manual & Parts List 82061B, 82062B, 82071B, 82081B & 82101A TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION Grinder won’t start 1. Blown line fuse or tripped circuit breaker 1. If fuse is blown, replace with fuse of proper size. If breaker tripped, reset it 2.
  • Page 16: Two Year Limited Warranty

    This warranty gives you specific legal rights and you may also have other legal rights which may vary from state to state. Responsibility of Original Purchaser (Initial User): • To process warranty claim on this product, DO NOT return it to the retailer. The product must be evaluated by Palmgren. Call (800) 621-6145 for instructions.
