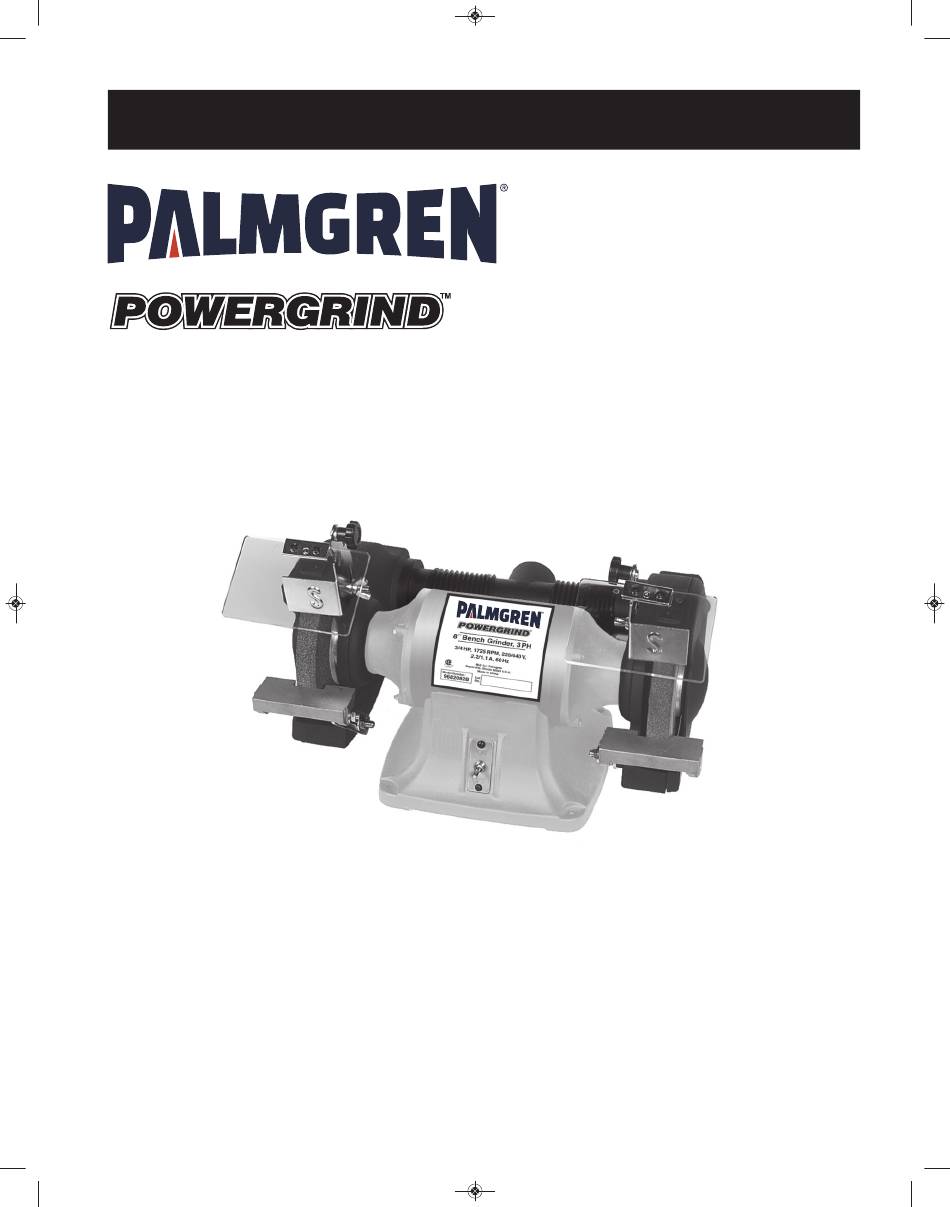

- Page 1 9682082B_9682102B_oipm_En012_9643317.03 11/06/18 Operating Manual & Parts List 9682082B & 9682102B Bench Grinders, 3 Phase 9682082B shown. Read carefully and follow all safety rules and operating instructions before first use of this product. 9643317.03-1118...
- Page 2 Wear proper apparel. Do not wear loose clothing, gloves, neck- ties, rings, bracelets or other jewelry which may get caught in Palmgren Bench Grinders are equipped with a totally enclosed ball moving parts of machine. bearing motor. Armature assembly is dynamically balanced for •...
-
Page 3: Installation
9682082B_9682102B_oipm_En012_9643317.03 11/06/18 Palmgren Operating Manual & Parts List 9682082B and 9682102B SAFETY RULES (CONTINUED) TOOL REST ASSEMBLY • Never stand on tool. Serious injury could occur if tool is tipped over. 1) Place tool rest (D) over tool rest bracket (C) and secure in posi- •... -
Page 4: Operation
9682082B_9682102B_oipm_En012_9643317.03 11/06/18 Palmgren Operating Manual & Parts List 9682082B and 9682102B OPERATION INSTALLATION (CONTINUED) • Many cover plate screws, water pipes and outlet boxes are not properly grounded. To ensure a proper ground, the grounding CAUTION: Always follow proper operating procedures as defined means must be tested by a qualified electrician. -
Page 5: Troubleshooting
9682082B_9682102B_oipm_En012_9643317.03 11/06/18 Palmgren Operating Manual & Parts List 9682082B and 9682102B TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION Grinder won’t start 1. Blown line fuse or tripped circuit breaker 1. If fuse is blown, replace with fuse of proper size. If breaker tripped, reset it 2. - Page 6 9682082B_9682102B_oipm_En012_9643317.03 11/06/18 Palmgren Operating Manual & Parts List 9682082B...
- Page 7 9682082B_9682102B_oipm_En012_9643317.03 11/06/18 Palmgren Operating Manual & Parts List 9682082B...
- Page 8 9682082B_9682102B_oipm_En012_9643317.03 11/06/18 Palmgren Operating Manual & Parts List 9682102B...
- Page 9 9682082B_9682102B_oipm_En012_9643317.03 11/06/18 Palmgren Operating Manual & Parts List 9682102B...
- Page 10 9682082B_9682102B_oipm_En012_9643317.03 11/06/18 Palmgren Operating Manual & Parts List 9682082B and 9682102B NOTES...
- Page 11 9682082B_9682102B_oipm_En012_9643317.03 11/06/18 Palmgren Operating Manual & Parts List 9682082B and 9682102B NOTES...
- Page 12 - 3 YEARS. The obligation of C.H. Hanson / Palmgren is limited solely to the repair or replacement, at our option, at its factory or authorized repair agent of any part that should prove inoperable. Purchaser must lubricate and maintain the product under normal operating conditions at all times.
