Summary of Contents for Palmgren 9682905

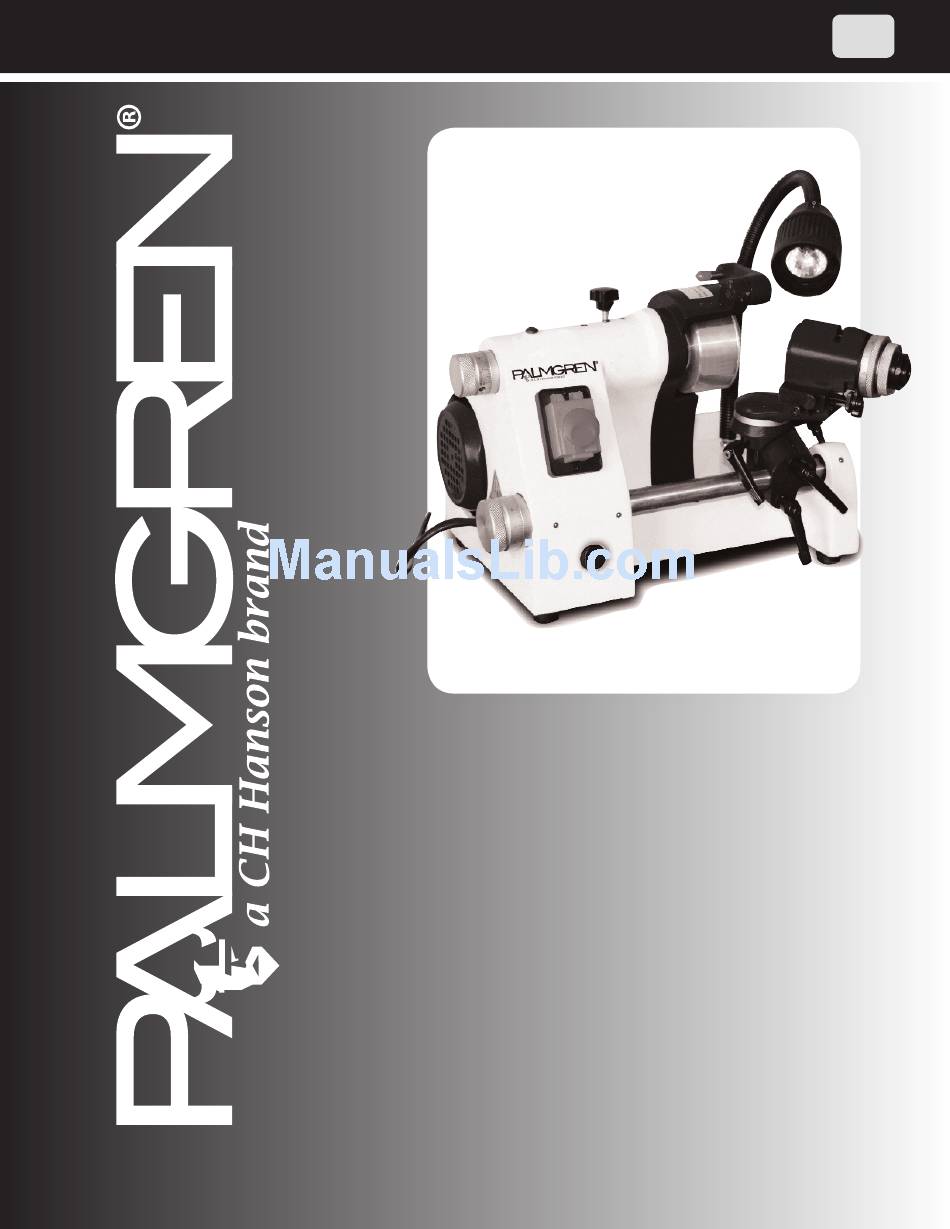

- Page 1 Operating Instructions & Parts Manual Grinder / Sharpener Machine Model 9682905 9640516.01...
- Page 2 DAMAGE! RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. PLEASE REFER TO BACK COVER FOR INFORMATION REGARDING PALMGREN’S WARRANTY AND OTHER IMPORTANT INFORMATION. Model #: ___________________ Serial #: ___________________ Purch. Date: _______________ © 2017 Palmgren / a C.H. Hanson Brand All Rights Reserved...
-
Page 3: Getting Started
GETTING STARTED Preparing for your job • Wear safety glasses complying with United States ANSI Save this manual Z87.1. Everyday glasses have only impact resistant lenses. You will need this manual for the safety warnings and They are not safety glasses. precautions, assembly instructions, operating and maintenance •... - Page 4 GETTING STARTED Accessories and tools included with your Grinder / Sharpener Machine Ref. No Qty. Description Collet type, DIN 6341 – G=S20x2, d=20, D=28, L=137, 35° Sizes – 4mm ; 6mm ; 8mm ; 10mm ; 12mm Corundum cup wheel 100mm x 50mm x 20mm – Diamond cup wheel 100mm x 50mm x 20mm (mounted on the machine when delivered) Spare round belt Socket to mount the cup wheels...
-
Page 5: Specifications
Never leave the machine running while it is unattended. Turn Environmental requirements off the power and stay with the machine until it comes to a The Model 9682905 Grinder / Sharpener machine should be complete, full stop. operated in temperatures of 41˚ to 95˚F and humidity range of •... - Page 6 Replace damaged cords immediately. Damaged cords increase the risk of electric shock. The Model 9682905 Grinding / Sharpener can sharpen v-blade Extension cords mill bits (burins), end mills, twist drill bits and lathe cutters with •...
- Page 7 OPERATION - MODEL 9682905 GRINDER / SHARPENER - FUNCTIONAL PARTS 14. Grinding shaft 13. Tool carrier clamping knob head horizontal 12. Diamond rotation axis dressing tool clamping lever 11. Diamond disc (Extra corundum disc included) 10. Locking bayonet lever 1. Knob to 9.
-
Page 8: Operation - General
The on / off switch The Model 9682905 Grinding / Sharpener can sharpen v-blade mill bits (burins), end mills, drill bits and lathe cutters with the use The on / off switch is located on of accessories that attach to the Grinder / Sharpener machine. - Page 9 2. Loosen the knurled screw on the right side of the of the Tool OPERATION - DRILL BIT SHARPENING Carrier Head. The head will slide off it the tool carrier. Make ACCESSORY certain to retain the wedge key. Before installing any accessories to the machine, make sure the machine is turned 5.
-
Page 10: Troubleshooting Guide
Reverse any of the two electrical leads L1, L2 or L3. Grinding operations yield loose Loose handles tolerances Check and tighten handles “A” and “B” to remove “play” from the settings MAINTENANCE / REPAIR WIRING DIAGRAM - MODEL 9682905 GRINDER / SHARPENER... -
Page 11: Maintenance
MAINTENANCE Make sure the machine is turned off and completely unplugged from its power source before performing any type of maintenance. The type and extent of machine wear will depend on the frequency of use and service conditions. Below are recommendations. - Page 13 REPAIR PARTS LIST FOR MODEL 9682905 - GRINDER / SHARPENER MACHINE Ref. Ref. Description Part No. Qty. Description Part No. Qty. Hand Scale Wheel 9640517.01 Thick Gasket 9640539.01 Screw M6x12 Screw M4x14 Lower Indicating Dial 9640518.01 Cover 9640540.01 Holder 9640519.01...
- Page 15 REPAIR PARTS LIST FOR MODEL 9682905 - GRINDER / SHARPENER MACHINE ACCESSORIES Ref. Ref. Description Part No. Qty. Description Part No. Qty. FIXTURE A FIXTURE C Tool Holder 9640570.01 Guide Plate 9640591.01 Screw Dole 9640571.01 Clamping Rod 9640592.01 Pressure Plate 9640572.01...
- Page 16 - 3 YEARS. The obligation of C.H. Hanson / Palmgren is limited solely to the repair or replacement, at our option, at its factory or authorized repair agent of any part that should prove inoperable.
