Palmgren 9682096A Operating Manual & Parts List

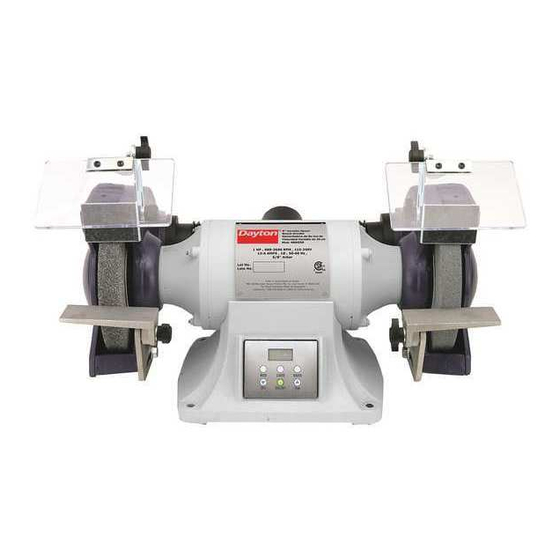

6˝, 8˝ and 10˝ variable speed bench grinders
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

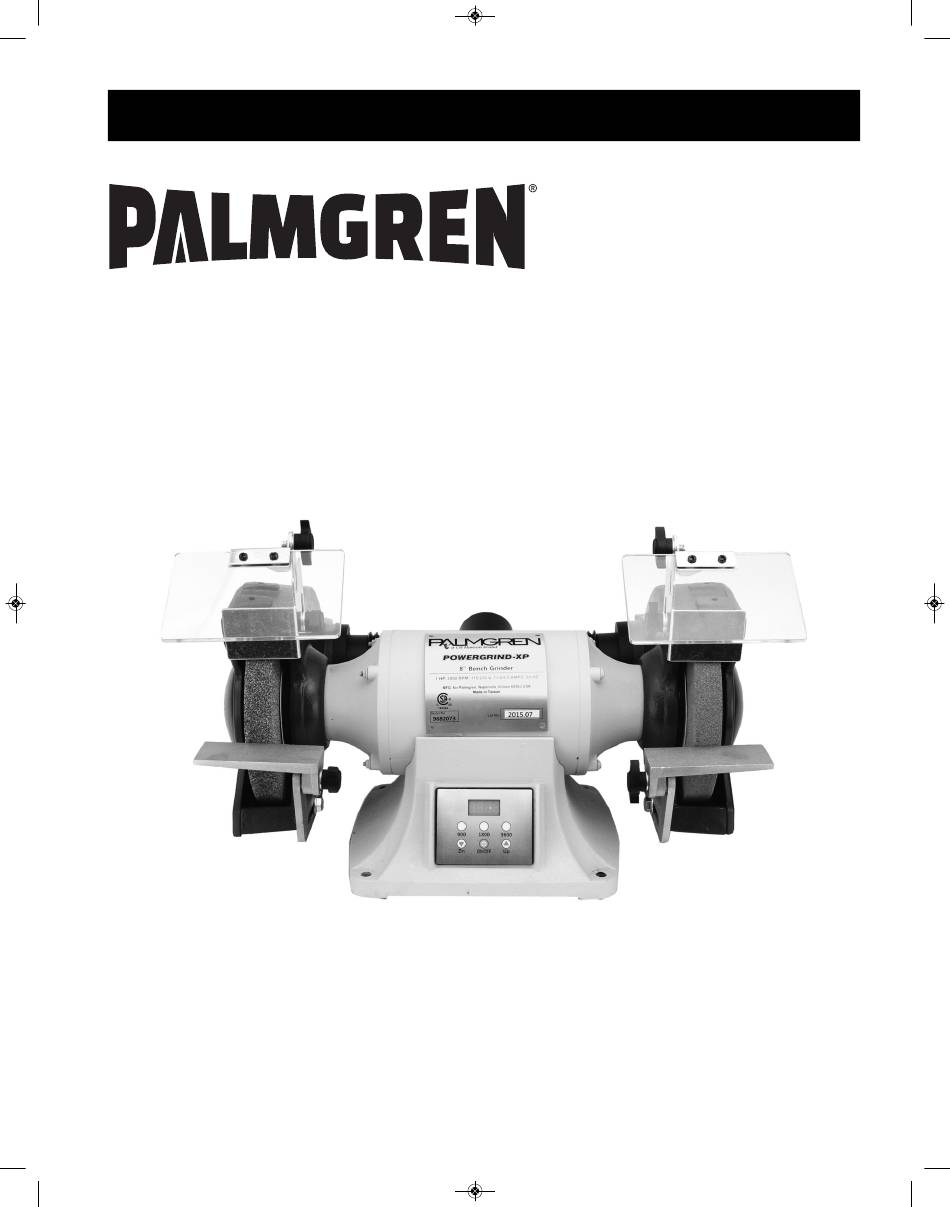

9682096A_9682097A_9682098A_oipm_En022_9642040.02 __ 09-30-2019
.
.
.
Operating Manual & Parts List
9682096A, 9682097A & 9682098A
6˝, 8˝ and 10˝
variable speed
Bench Grinders
Read carefully and follow all safety rules and operating
instructions before first use of this product.
9642040.02-0719

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9682096A and is the answer not in the manual?

Questions and answers

Related Manuals for Palmgren 9682096A

Summary of Contents for Palmgren 9682096A

  • Page 1 9682096A_9682097A_9682098A_oipm_En022_9642040.02 __ 09-30-2019 Operating Manual & Parts List 9682096A, 9682097A & 9682098A 6˝, 8˝ and 10˝ variable speed Bench Grinders Read carefully and follow all safety rules and operating instructions before first use of this product. 9642040.02-0719...
  • Page 2 • Bench Grinder A 3/8˝ × 1/2˝ Locking Knob (2) Palmgren’s variable speed bench grinders with inverter is equipped B 3/8˝ Flat Washer (4) with a totally enclosed ball bearing motor. Armature assembly is dynamically balanced for smooth operation. Motor housing is C 3/8˝...
  • Page 3 9682096A_9682097A_9682098A_oipm_En022_9642040.02 __ 09-30-2019 Palmgren Operating Manual & Parts List 9682096A, 9682097A & 9682098A SAFETY RULES • Check for damaged parts. Check for alignment of moving parts, binding, breakage, mounting and any other condition that may affect a tool’s operation. WARNING: For your own safety, read all of the instructions and •...
  • Page 4 9682096A_9682097A_9682098A_oipm_En022_9642040.02 __ 09-30-2019 Palmgren Operating Manual & Parts List 9682096A, 9682097A & 9682098A ASSEMBLY (CONTINUED) Grounding plug should be plugged directly into a properly in - stalled and grounded 3- prong grounding-type receptacle (See EYESHIELD ASSEMBLY Figure 2). Refer to Figure 1, page 2.
  • Page 5 120 volts. Motor is prewired at the factory for 120 volts. speed of at least 2400 RPM. OPERATION • Maximum wheel diameter is 6˝ for 9682096A, 8˝ for 9682097A and 10˝ for 9682098A. • To loosen nuts holding the wheels, disconnect power and push a wood wedge between the tool rest and the wheel to keep the See Figure 4.
  • Page 6 Turn the unit off and unplug to let the motor cool. Excessive Voltage Low Voltage Check Voltage and current. If within range, press ON/OFF (Reset Button). Motor Overloaded Excessive Input Current If error still exists please contact your Palmgren Distributor or call 1-800-827-3398.
  • Page 7 9682096A_9682097A_9682098A_oipm_En022_9642040.02 __ 09-30-2019 Palmgren Operating Manual & Parts List 9682096A, 9682097A & 9682098A NOTES...
  • Page 8 9682096A_9682097A_9682098A_oipm_En022_9642040.02 __ 09-30-2019 Palmgren Operating Manual & Parts List 9682096A, 9682097A & 9682098A...
  • Page 9 9682096A_9682097A_9682098A_oipm_En022_9642040.02 __ 09-30-2019 Palmgren Operating Manual & Parts List 9682096A, 9682097A & 9682098A...
  • Page 10 9682096A_9682097A_9682098A_oipm_En022_9642040.02 __ 09-30-2019 Palmgren Operating Manual & Parts List 9682096A, 9682097A & 9682098A NOTES...
  • Page 11 9682096A_9682097A_9682098A_oipm_En022_9642040.02 __ 09-30-2019 Palmgren Operating Manual & Parts List 9682096A, 9682097A & 9682098A NOTES...
  • Page 12 - 3 YEARS. The obligation of C.H. Hanson / Palmgren is limited solely to the repair or replacement, at our option, at its factory or authorized repair agent of any part that should prove inoperable.
  • Page 13 Assembly instruction PEDESTAL DUST COLLECTOR Part no. 9686003...

  • Page 14: Table Of Contents

    Table of contents Safety Type plate ..............................4 Safety instructions (warning notes)......................5 1.2.1 Classification of hazards .......................5 1.2.2 Other pictograms...........................5 Intended use .............................6 Reasonably foreseeable misuse.......................7 1.4.1 Avoiding misuse ..........................7 Technical specification Dimensions ...............................9 Delivery, interdepartmental transport, unpacking Delivery..............................14 Interdepartmental transport ........................14 Unpacking...............................14 Example figure of a grinding machine ....................15 Fitting possibility of the GU1 ........................15...
  • Page 15 Preface Dear customer, Thank you very much for purchasing a product made by company. Company accessories for metal working machines offer a maximum of quality, technically company solutions and convince by an outstanding price performance ratio. Continuous enhance-ments and product innovations guarantee state-of-the-art products and safety at any time.

  • Page 16: Safety

    If necessary, relevant measures must be taken to comply with national regulations before com- missioning the machine. Type plate Pedestal Dust Collector W/Auto 1.5 HP , 115V , 60 Hz , 1 Ph MFG.for Palmgren, Naperville, lllinois 60563 USA Made in China Model No. 9686003 Lot No.

  • Page 17: Safety Instructions (Warning Notes)

    Safety instructions (warning notes) 1.2.1 Classification of hazards We classify the safety warnings into different categories. The table below gives an overview of the classification of symbols (ideogram) and the warning signs for each specific danger and its (possible) consequences. Alarm expres- Symbol Definition / consequence...

  • Page 18: Intended Use

    Wear safety shoes! Wear a protective suit! Contact address Intended use WARNING! In the event of improper use, the machine  may be a hazard to personnel,  the machine and other material property of the operating company will be endan- gered, ...

  • Page 19: Reasonably Foreseeable Misuse

    Reasonably foreseeable misuse The installation of chip-type machines for tools with geometrically indeterminate cutting on the machine substructure GU1 must only be done by qualified personnel. Qualified personnel Due to their professional training, knowledge and experience as well as knowledge of relevant regulations, qualified personnel are able to perform the assigned tasks and to independently recognise and avoid any possible dangers.

  • Page 20: Technical Specification

    Technical specification The following information represents the dimensions and indications of weight and the manu- facturer‘s approved machine data. Electrical connection Part no. 9686003 115V ~ 60Hz  1.5 HP Blower engine power Speed of the blower [ rpm ] 22000 Carrying capacity of the machine sub- Max.

  • Page 21: Dimensions

    This information about the noise emission should, however, allow the operator of the machine 企 to more easily evaluate the hazards and risks. CAUTION! Depending on the overall noise exposure and the basic threshold values, machine operators must wear appropriate hearing protection. ＠...
  • Page 23 Suction Flex pipe 440-1000mm Storage compartments Page 11...
  • Page 24 Dust container Page 12...
  • Page 25 Exhaust air filter Filament Feinfilter Filament Fine filter Filterfläche: 0,061 qm Filter surface: 0.061 m Page 13...

  • Page 26: Delivery, Interdepartmental Transport, Unpacking

    Delivery, interdepartmental transport, unpacking INFORMATION The machine substructure with suction device is fully assembled. It is delivered in a transport box. Delivery Check the status of the machine immediately upon receipt and claim possible damages at the last carrier also if the packing is not being damaged. In order to ensure claims towards the freight carrier we recommend you to leave the machines, devices and packing material for the time being in the status at which you have determined the damage or to take photos of this sta- tus.

  • Page 27: Example Figure Of A Grinding Machine

    Example figure of a grinding machine on the machine substructure with suction device. Fitting possibility of the GU1 The machine substructure can be attached to the floor. Page 15...

  • Page 28: Operation

    Operation Description of Functioning of the Extraction System In the machine substructure is situated a fan than generates an underpressure. The underpres- sure occurring sucks in the ambient air. The quantity of air is directed through cyclone separa- tor which collects the fine dust particulates from the suction connections and places it into a collection tank.

  • Page 29: Fire And Explosion Prevention

    Fire and Explosion Prevention From a particle size of 500 μm and below, flammable metal dusts are regarded as explosive. Accumulated flammable dust can lead to explosive atmospheres by swirling up in machine tools and separators. This should be considered especially in the case of light metal dusts, e.g. aluminium and magnesium.

  • Page 30: Maintenance

    Maintenance Inspection and maintenance The type and level of wear depends to a large extent on the individual usage and operating conditions. Any indicated intervals therefore are only valid for the corresponding approved con- ditions. Interval Where? What? How?  Empty the collection tank regularly.

  • Page 31: Advice For Disposal / Options Of Reuse

    Advice for disposal / Options of reuse: Please dispose of your equipment in an environmentally friendly manner, by not placing waste in the environment but in a professional manner. Please do not simply throw away the packaging and later the disused machine, but dispose of both in accordance with the guidelines laid down by your city council/local authority or by an authorised disposal company.
  • Page 33 Spare parts list GU1 Designation Qty. Size Item no. Cyclone 0310711106 Back board 0310711107 Filter 0310711108 Cover 0310711109 Housing 0310711110 Strain relief 0310711111 Cover 0310711112 115V Socket-outlet 03107111132 for 115V GU1 supply Plug 0310711114 O-Ring 0310711115 Manifold 0310711116 flexibel suction tube (option) 0310711117-1 115V Plug cable...
