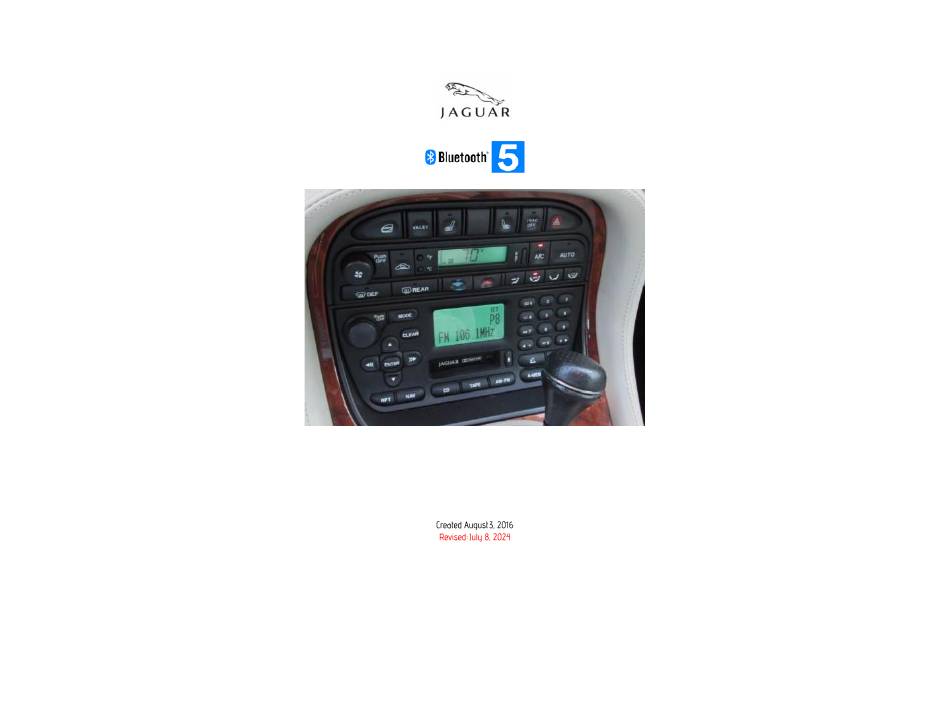

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 A2D-JAG98 MUSIC STREAMING INSTALL GUIDE FOR 1997*-06 XK (X100) AND 1998-03 XJ (X308) WITH CD CHANGER...
-
Page 2: Installation
Introduction Portable audio products are everywhere, reflecting demand from active people all over the world to take their music on the road. The A2D-JAG98 streaming solution for any A2DP enabled Smart device, Steam music apps including turn by Fig. 1 turn directions, audio books, Apple music and more directly into the audio system via the CD changer port. - Page 3 Fig. 3 7. Connect factory male plug to the female connector/socket on adapter Fig. 1B cable (See Fig. 3) (USE EXTREME CAUTION WHEN MAKING THIS CONNECTION) 3. Pull out inner frame. Align triangle markings on both cables, seat plug into socket and firmly 4.
- Page 4 9. Insert Add-a-fuse to vehicles fuse box positions F5 (XJ/R) or F3, F4, F5, F11, F13 (XK/R) (Or any capable or supplying 12V when ignition key is in ACC/ON positions only) Note: If aforementioned fuse position is occupied; remove said fuse and insert to vacant slot on Add-a-fuse circuit.
- Page 5 Pairing Steaming operation Pairing process varies among devices but basic steps are the same. This Turn ignition and radio ON. process is done upon initial install and will not have to be repeated. Press “CD” button. Turn Ignition and radio “ON” Green LED inside module peephole will flash (pairing mode)—some clicking may also be heard (this is normal) Settings, Wireless &...
- Page 6 Optional – Smart remote control Smart remote operation: Optional smart remote control is not required for module to operation; Use smart remote to perform the following functions on any iOS7.0 and higher however this cool gadget allows users to change tracks etc., use remote or Android 4.4 and higher.
- Page 7 Without starting a debate about Wired vs. Wireless; we will answer based our own experience: The A2D-JAG98 a ptX sounded very good in our XJ Alpine Premium systems. 4. Can I install the A2D-JAG98 module at the radio? the A2D-JAG98 module connects to CD changer plug in trunk or hatch.
- Page 8 For additional support email support@discountcarstereo.com © 1995-Jul-24 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
