3 Hardware Installation

1. Turn off the power of the computer system in which the QSC-200/300 is to be installed.
2. Remove the system cover according to the instructions provided by the computer
manufacturer.
3. Make any desired optional jumper setting changes.
4. Install the QSC-200/300 in any empty PCI expansion slot. The board should be secured
by installing the Option Retaining Bracket (ORB) screw.
5. Replace the system cover according to the instructions provided by the computer
manufacturer.
6. Attach and secure the cable connectors to the desired equipment.
7. Turn on the power of the computer system.
The output of the QSC-200/300 is a 37-pin D-connector. A cable is provided to convert
the D-37 into four standard male D-25 connector.
Termination select
Quatech QSC-200/300 Users Manual
J1
J9
port 1
J2
J10
J3
J11
port 2
J4
J12
J5
J13
port 3
J6
J14
J7
J15
port 4
J8
J16

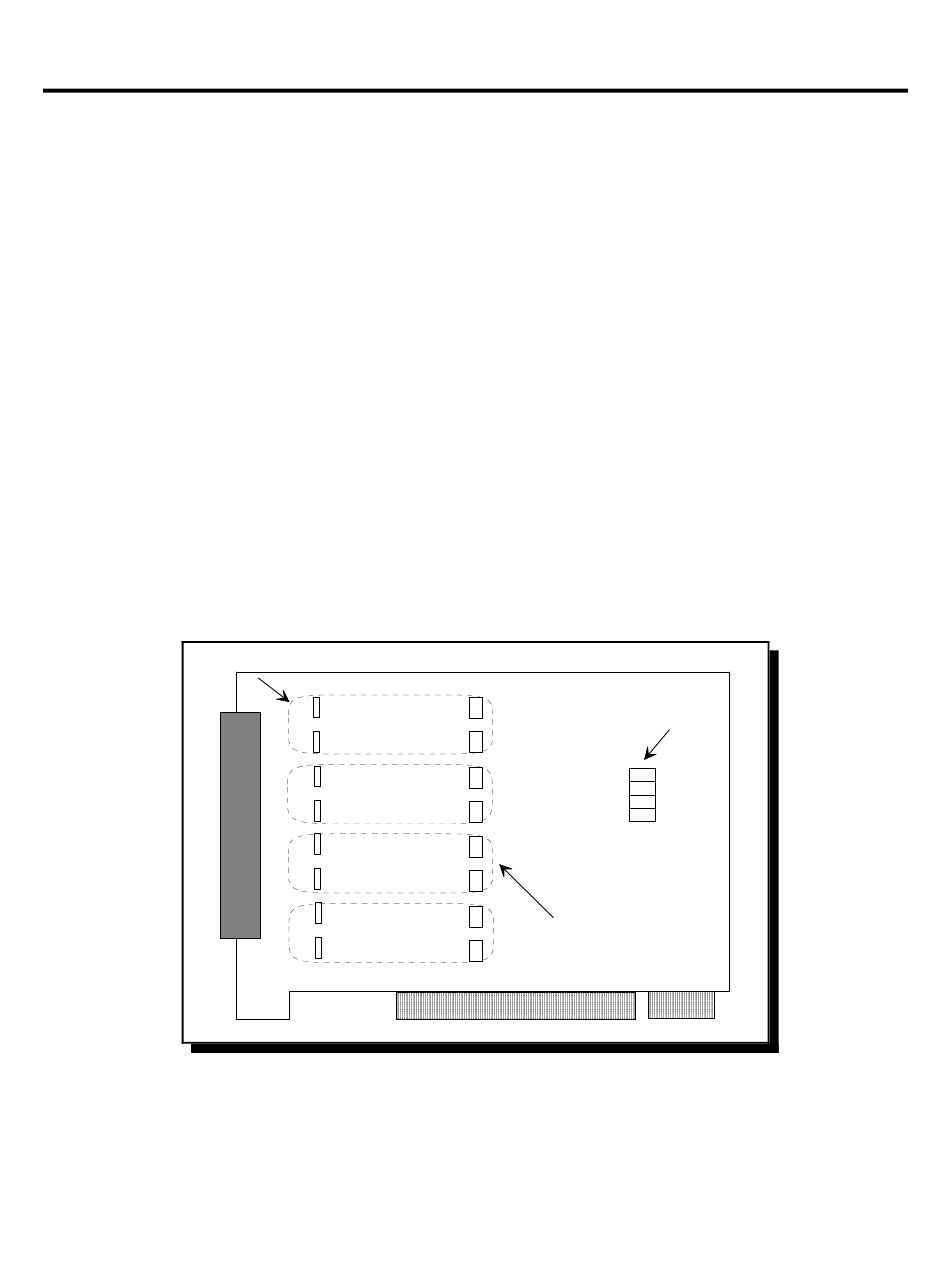

Figure 6 --- Jumper/connector locations
Clock multiplier/
scratchpad select
J17 X2
J18
X4
J19
X8
J20
SPAD
Interface configuration
