Table of Contents

SPECIFICATIONS
Power Source
Power Consumption
CONTENTS
AC110-120V, 220-240V / 50-60Hz
Function "2".....110V/220V, 800W
230V, 900W
120V/240V,1000W
Function "1".....110V/220V, 400W
230V, 450W
120V/240V,500W
EH5287-A3
Air Volume
Air Flow Temperature
Cord Length
Weight
Page
2
3
4
6
© 2003 Matsushita Electric Works (Thailand), Ltd. All
rights
distribution is a violation of law.
Order No. PCD0311A87C3

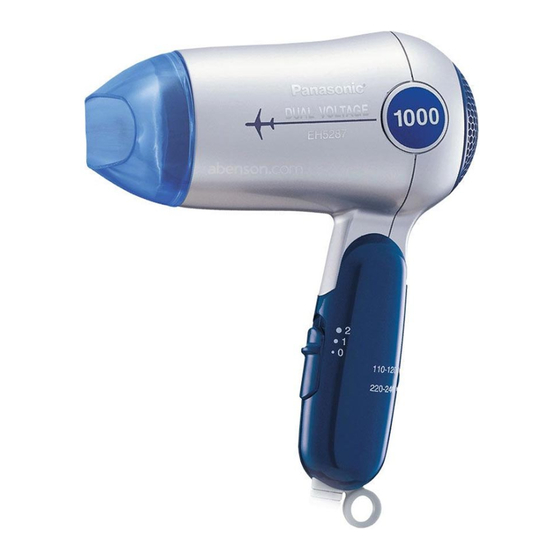

Hair Dryer
0.8m
110-120V, 105°C (2)
220-240V, 105°C (2)
(In case of room temperature 30°C)
reserved.
Unauthorized
3
/min (2)
1.75m
400g
Page
7
8
8
copying
and

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EH5287-A3 and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic EH5287-A3

Summary of Contents for Panasonic EH5287-A3

  • Page 1: Table Of Contents

    Order No. PCD0311A87C3 Hair Dryer EH5287-A3 SPECIFICATIONS Power Source AC110-120V, 220-240V / 50-60Hz Air Volume 0.8m /min (2) Power Consumption Function "2"..110V/220V, 800W Air Flow Temperature 110-120V, 105°C (2) 230V, 900W 220-240V, 105°C (2) 120V/240V,1000W (In case of room temperature 30°C) Function "1"..110V/220V, 400W...

  • Page 2: Schematic Diagram

    EH5287-A3 1 SCHEMATIC DIAGRAM 110-120V/220-240V 110-120V/220-240V 110-120V/220-240V (TAIWAN) (KOREA) (OTHERS) CAPACITOR 0.1µF, 275V NOT USE CAPACITOR (FOR MOTOR) 0.1µF, DC50 V DIODE 600V, 5A D2 (×4) DIODE (BRIDGE) 400V, 2A TEMPERATURE FUSE 147°C, 250V, 12A MOTOR DC 15V MAIN SWITCH AC 125V/13A;...

  • Page 3: Wiring Connection Diagram

    EH5287-A3 2 WIRING CONNECTION DIAGRAM < for Taiwan, Korea > < for Others >...

  • Page 4: Assembly Instructions

    EH5287-A3 3 ASSEMBLY INSTRUCTIONS CAUTION: When soldering lead wires on the main switch & the select voltage switch, location and orientation of lead wire must be as shown in Figure 1. Figure 1 1. Assemble the heater into slots of motor block assembly as shown in Figure 2.
  • Page 5 EH5287-A3 5. Put heater block into front housing by aligning heater base board and air outlet ring. 6. Assemble back housing and front housing, then Install swivel ring into the housing as shown in Figure 6. Figure 6 7. Install handle B into the housing.

  • Page 6: Disassembly Instructions

    EH5287-A3 4 DISASSEMBLY INSTRUCTIONS 1. Remove 2 torque screws from handle by using Torque head driver as shown in Figure 10. Figure 10 2. Remove swivel ring and remove hook of back housing From front housing. ( See Figure 11) Figure 11 3.

  • Page 7: Troubleshooting Guide

    EH5287-A3 5 TROUBLESHOOTING GUIDE NOTE: Refer to WIRING CONNECTION DIAGRAM. < TROUBLE > < CHECK > < REMEDY > Hot air is not emitted Check the continuity of power cord. NO Replace the power cord. at "2" or "1" position.

  • Page 8: Exploded View

    EH5287-A3 6 EXPLODED VIEW 7 REPLACEMENT PARTS LIST NOTES: All parts are supplied from MEW-Thailand. Remarks: *1 = Available individually Ref.No. Part No. Part Name & Descriptions Remarks Per Unit EH5287NZLW NOZZLE (BLUE) EH5287NZHW NOZZLE (GRAY) EH5287HDL1W HANDLE A/B (BLUE)
