Panasonic EH5214 Service Manual

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

This service literature is designed for experienced repair technicians only and is not designed for use by the general public. It does
not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
There are special components used in this equipment which are important for safety.
Schematic Diagrams, Circuit Board Diagrams, Exploded views and Replacement Parts List. It is essential that these critical parts
should be replaced with manufacture's specified parts to prevent shock, fire or other hazards. Do not modify the original design
without permission of manufacturer.

TABLE OF CONTENTS

・Warning ･････････････････････････････ 2
・Specifications ････････････････････････ 2
・Troubleshooting Guide ･･････････････････ 3
・Assembly Instructions ･････････････････ 4
Model No.EH5214
WARNING
IMPORTANT SAFETY NOTICE
Page
・Wiring Diagrams ･･･････････････････････ 5
・Schematic Diagrams ････････････････････ 5
Order No. MEWT0411A89P3
These parts are marked by
©2004 Matsushita Electric Works (Thailand), Ltd.
All rights reserved.
Unauthorized copying and
distribution is a violation of law.

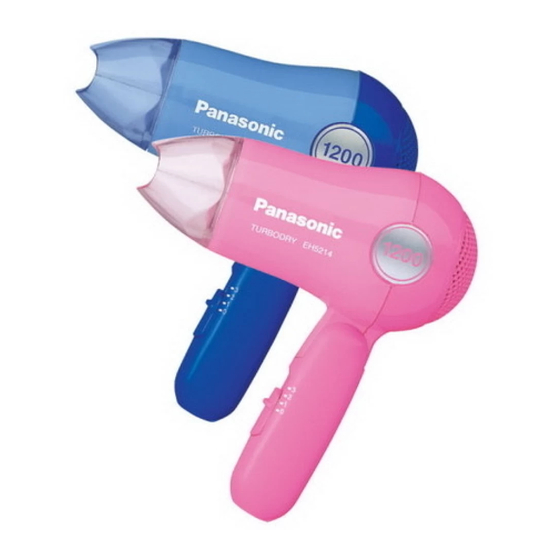

Hair Dryer
ASIA
MIDDLE EAST
!
in the
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EH5214 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic EH5214

Summary of Contents for Panasonic EH5214

  • Page 1: Table Of Contents

    Order No. MEWT0411A89P3 Hair Dryer Model No.EH5214 ASIA MIDDLE EAST WARNING This service literature is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.

  • Page 2: Warning

    EH5214 1. WARNING Caution: - Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40℃) higher. Please use a soldering iron with temperature control and adjust it to 750 ±20°F (400 ± 10℃). In case of using high temperature soldering iron, please be careful not to heat too long.

  • Page 3: Troubleshooting Guide

    EH5214 3. TROUBLESHOOTING GUIDE (Refer to WIRING CONNECTION DIAGRAM) <TROUBLE> <CHECK> <REMEDY> Hot or Cool air is not → Check the conductivity of power cord. NO Replace the power emitted at "1" "2" and cord. → "3" mode. ↓OK Check the conductivity between (1) and (4) of main switch at "1" mode.

  • Page 4: Assembly Instructions

    EH5214 4 ASSEMBLY INSTRUCTIONS 1. Assemble the air outlet grill and the air outlet ring into the housing B as the following Fig.1. 2. Attach the air flow with the heater, and insert into the housing B as the following Fig.1.

  • Page 5: Schematic Diagrams

    EH5214 5. SCHEMATIC DIAGRAM 110V TAIWAN 220V KOREA 220-240V CAPACITOR 0.1µF, 125V 0.22µF, 250V CAPACITOR 0.1µF, 50V DIODE 6A, 1000V 5A, 400V TEMPERATURE FUSE 132°C, 10A, 250V 142°C, 12A, 125V OR 131°C, 15A, 250V MOTOR 3.6V, 350mA MAIN SWITCH AC 125V 13A/250V 6.5A VOLTAGE DROPING RESISTOR 154±6Ω...

  • Page 6: Exploded View & Replacement Parts List

    EH5214 7. EXPLODED VIEW & REPLACEMENT PARTS LIST 7.1 EXPLODED VIEW - 6 -...
  • Page 7 EH5214 REPLACEMENT PARTS LIST Ref. Part No. Part Name & Description Quantity Remarks EH5214HSLW HOUSING AB ASS’Y BLUE EH5214HSPW HOUSING AS ASS’Y PINK EH5214AOW AIR OUTLET GRILL EH5214AORHW AIR OUTLET RING GRAY EH5214HDL1W HANDLE AB ASS’Y BLUE (TAIWAN) EH5214HDL2W HANDLE AB ASS’Y...
