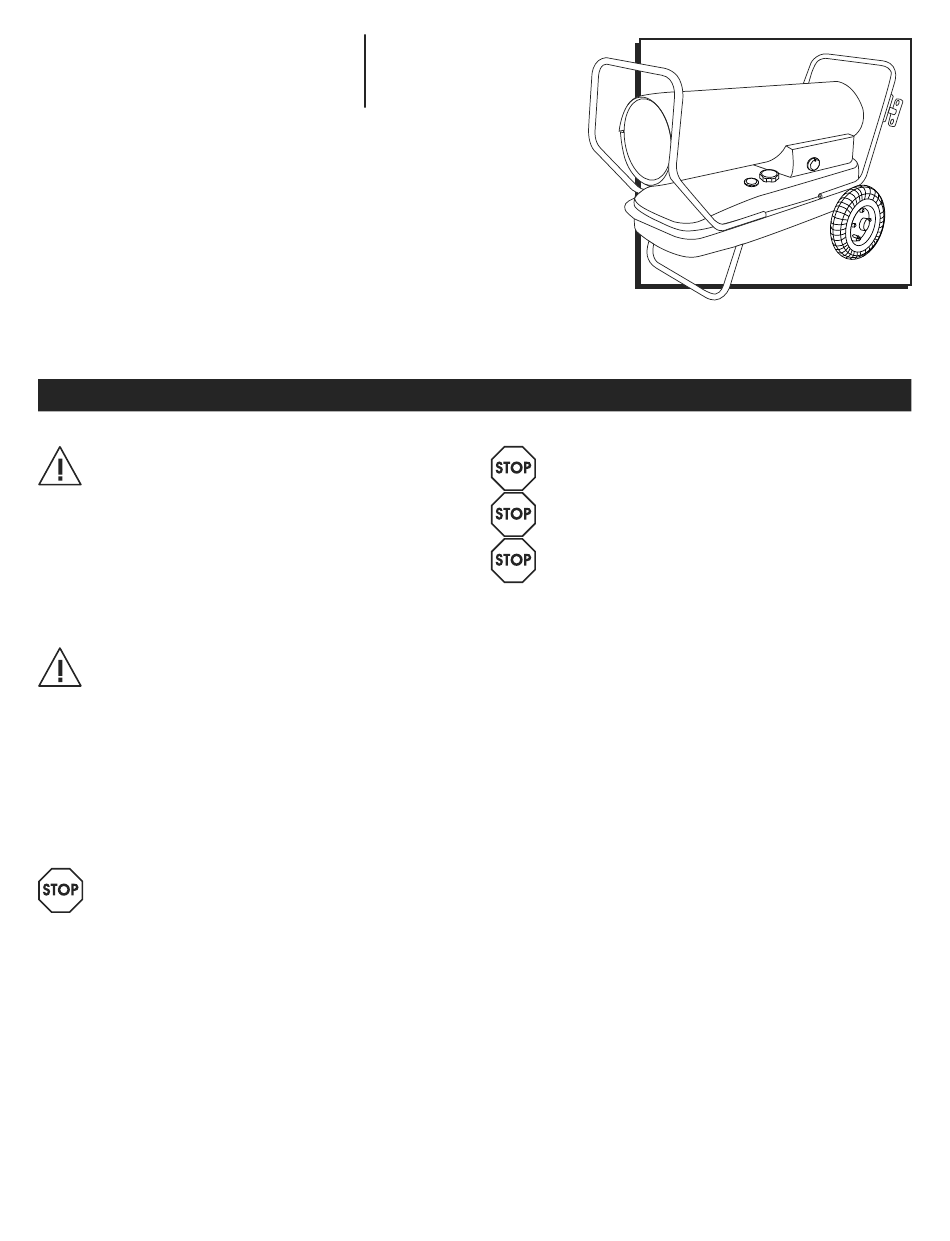

π
H-6513, H-6514
MULTI-FUEL HEATER
DANGER! Read and understand all of these
instructions before assembling, starting or
servicing the heater. Comply with the instructions
and warnings provided with this heater. Failure
to comply can result in fire or explosion that can
cause property loss, bodily injury or loss of life.
Only persons who can follow and understand
these instructions should operate or service this
heater. For additional information, contact Uline
Customer Service at 1-800-295-5510.
DANGER! Not for use in residential living areas or
in enclosed spaces without adequate ventilation.
For outdoor use. Indoor use permitted only for
the temporary heating of adequately ventilated
buildings or structures under construction,
alteration or repair. This is an unvented portable
heater that uses air (oxygen) from within the area
in which it is used. Failure to provide adequate
combustion and ventilation air will result in
asphyxiation, carbon monoxide poisoning, bodily
injury or death. See Ventilation on page 5.
WARNING! Fire, burn, inhalation and explosion
hazard. Keep combustibles such as building
materials, paper or cardboard a safe distance
away from the heater. Never use the heater in
spaces which contain products such as gasoline,
solvents, paint thinners, dust particles, volatile or
airborne combustibles or any unknown chemicals.
Bulk fuel storage should be a minimum of 25'
from heater.
PAGE 1 OF 27
1-800-295-5510
uline.com
SAFETY
WARNING! Do not start the heater when excess oil
has accumulated.
WARNING! Do not start the heater when the
chamber is hot.
WARNING! California residents: This product
contains chemicals, including lead, known to the
state of California to cause birth defects or other
reproductive harm. Wash hands after handling.
Massachusetts residents: Massachusetts state law
prohibits the use of this heater in any building that
is used in whole or in part for human habitation.
Use of this heating device in Massachusetts
requires local fire department permit (M.G.L.C.
148, Section 10A).
New York City residents: The New York City Fire
Code prohibits the storage, handling and use
of kerosene fueled heaters for space heating.
Any person violating that provision may be
punished by a fine up to $10,000 and a term of
imprisonment of up to 6 months.
The installation of this heater shall comply with the
regulations of the authorities having jurisdiction.
Para Español, vea páginas 10-18.
Pour le français, consulter les pages 19-27.
0624 IH-6513
