π

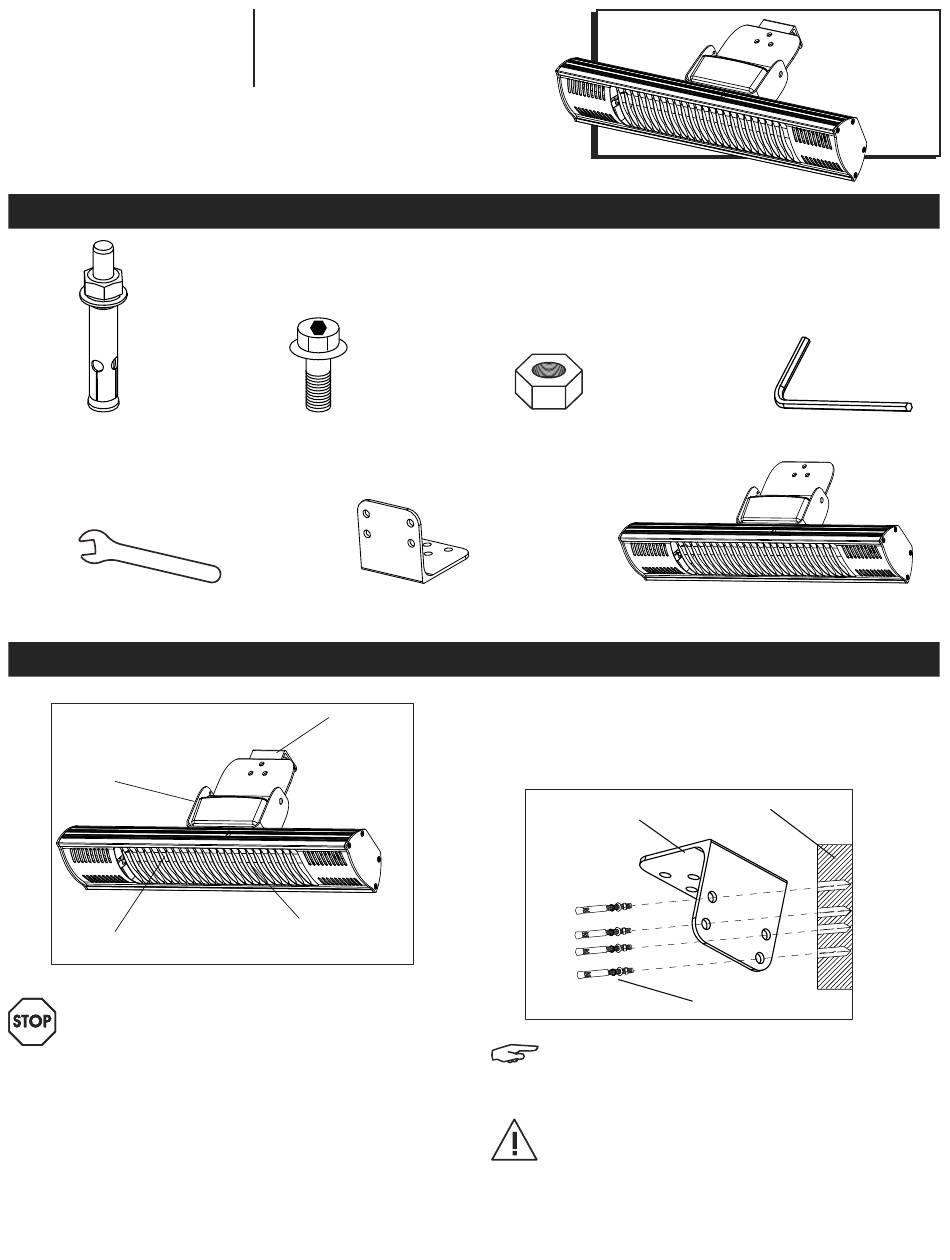

H-5779
INFRARED HEATER
WALL MOUNT
50 mm Wall Mounting
Bolt x 4
Small Wrench
Tilting Support Bracket
Heating Bulb
WARNING! EXPLOSION AND FIRE HAZARD!
Serious injury or death may occur.
• Do not use in locations containing hazardous
atmospheres.
• Do not use inside residences.
• Disconnect from electrical supply before
installing or servicing this heater.
PAGE 1 OF 3
1-800-295-5510
uline.com
10 mm Allen Bolt x 3
Wall Mounting Bracket
ASSEMBLY
Wall Mounting
Bracket
Front Safety Guard
ASSEMBLY DIAGRAM
PARTS
Nut x 3
HANGING THE WALL MOUNT
1. Attach the mounting bracket to a wall stud as shown
below using four wall mounting bolts. (See Figure 1)
Wall Mounting
Bracket
Figure 1
NOTE: Use the back plate of the wall mounting
bracket as a template to pre-drill the holes for
mounting bolts.
CAUTION! The installer must be certain the wall
mounting bracket is attached to a minimum
of a 2 x 4" wall stud that is able to support 25
pounds continuously.
Allen Wrench
Heater Head Assembly
2 x 4''
Stud
Wall Mounting
Bolts
0117 IH-5779
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for U-Line H-5779
Summary of Contents for U-Line H-5779
- Page 1 π H-5779 1-800-295-5510 uline.com INFRARED HEATER WALL MOUNT PARTS Allen Wrench 50 mm Wall Mounting 10 mm Allen Bolt x 3 Nut x 3 Bolt x 4 Small Wrench Wall Mounting Bracket Heater Head Assembly ASSEMBLY HANGING THE WALL MOUNT...
- Page 2 HEATER INSTALLATION ATTACHING HEATER TO WALL MOUNT NOTE: The mounting bracket is designed to support the weight of the heater only. Do not 1. The heater support bracket is attached to the heater hang any object other than the heater from head assembly.
- Page 3 MAINTENANCE CONTINUED STORAGE 3. Complete all cleaning procedures. 4. Wrap cord and heater in plastic shipping bags. SHORT TERM STORAGE 5. Store in a cool, dry place. Disconnect heater from power supply. NOTE: Keep original shipping materials to store NOTE: For heaters used outdoors, do not store heater during off-season.
