Program Audio and Monitor 4 Wiring – Analog/ AES Digital
The DASDEC-III uses RJ45-style connectors for analog and digital audio. The wiring diagram below matches the
common T-568B cabling standard.
There are a number of sources for professionally terminated cables in a variety of lengths and formats. One
excellent source is Studio Hub (https://studiohub.com/adapters/)
There are a number of sources for professionally terminated cables in a variety of lengths and formats. One excellent

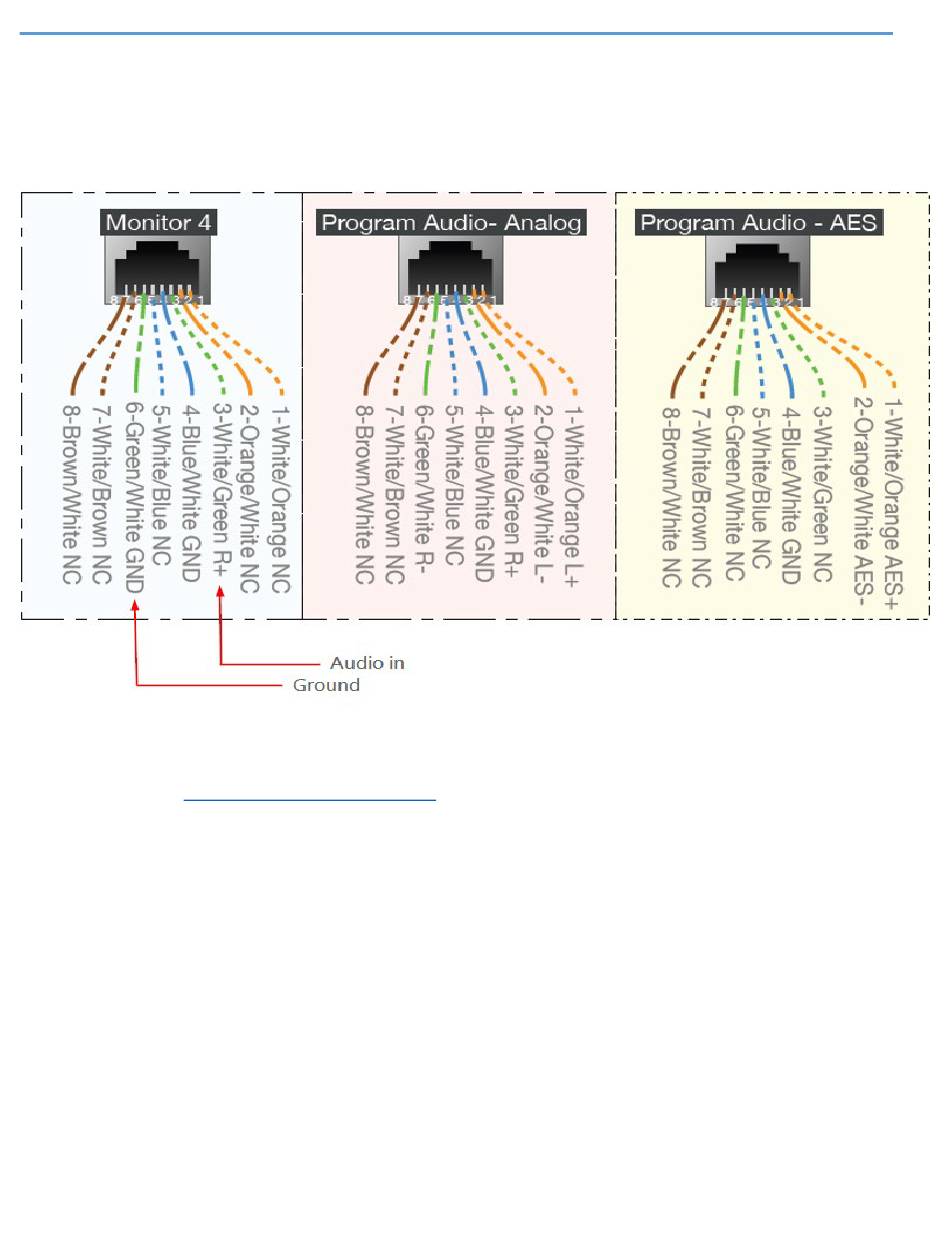

Figure 2. Audio wiring pinouts for analog and digital inputs/outputs
There are a number of sources for professionally terminated cables in a variety of lengths and formats. One excellent
source is Studio Hub (https://studiohub.com/adapters/)
Page
| 9
Rev: 5.1
