DASDEC-III
Quick Start Guide

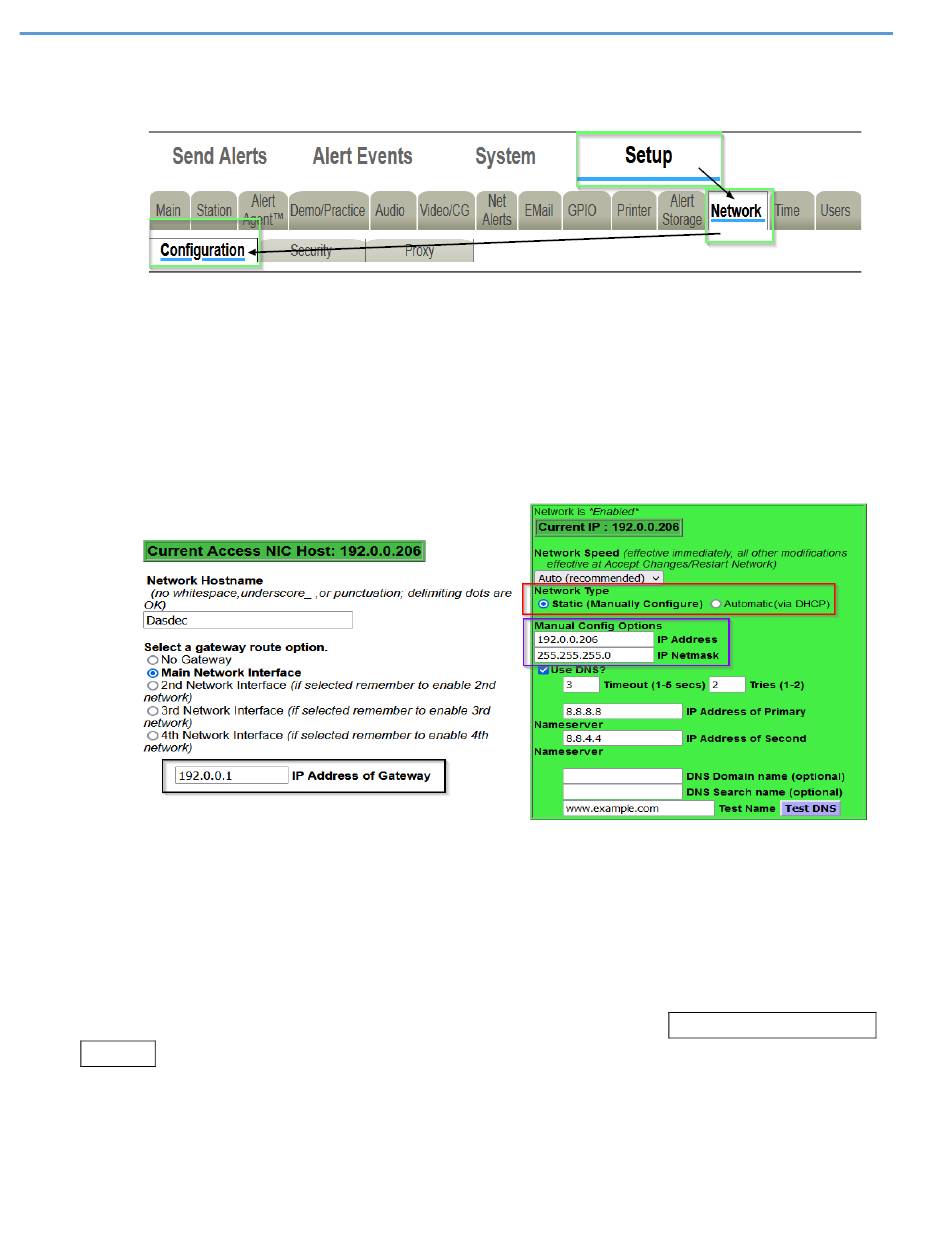

7. An IP address can now be assigned to the DASDEC-III. Navigate using the tabs at the top of the
webpage labeled Setup > Network > Configuration.
8. From here, set the network type to static
internet gateway (shown below in black), and set the desired IP address for the DASDEC-III along with
the proper subnet mask
click the 'Accept Changes/ Restart Network' button at the bottom of the page.
Note: The IP address assigned to the DASDEC-III cannot match the IP address of any other device on your
network, or it will cause a conflict. If possible, confirm with your system administrator what IP address would be
the best for the DASDEC-III to be set to.
9. The DASDEC-III can now be connected to your network. Once the device is connected to your
switch/router, launch a browser on a PC residing on the same network (on which you just placed the
DASDEC-III). Access the login page by typing the newly programmed IP into the browser's address bar.
10. Log back in and navigate to the Setup > Network > Configuration page. Now the DNS IP address can be
added, check the 'Use DNS?' box. This will open additional dialog boxes where you will input your
network's primary and secondary nameservers; once entered, click the Accept Changes/ Restart
Network button. If you do not know or have DNS IP addresses, you can use a public DNS server such as
8.8.8.8 and 8.8.4.4 as an alternative.
Page
| 5
(shown below in
(shown below in
purple). Double-check that your information is correct and
red), set the IP address of your network's
Rev: 5.1
