Summary of Contents for thomann Harley Benton Victory

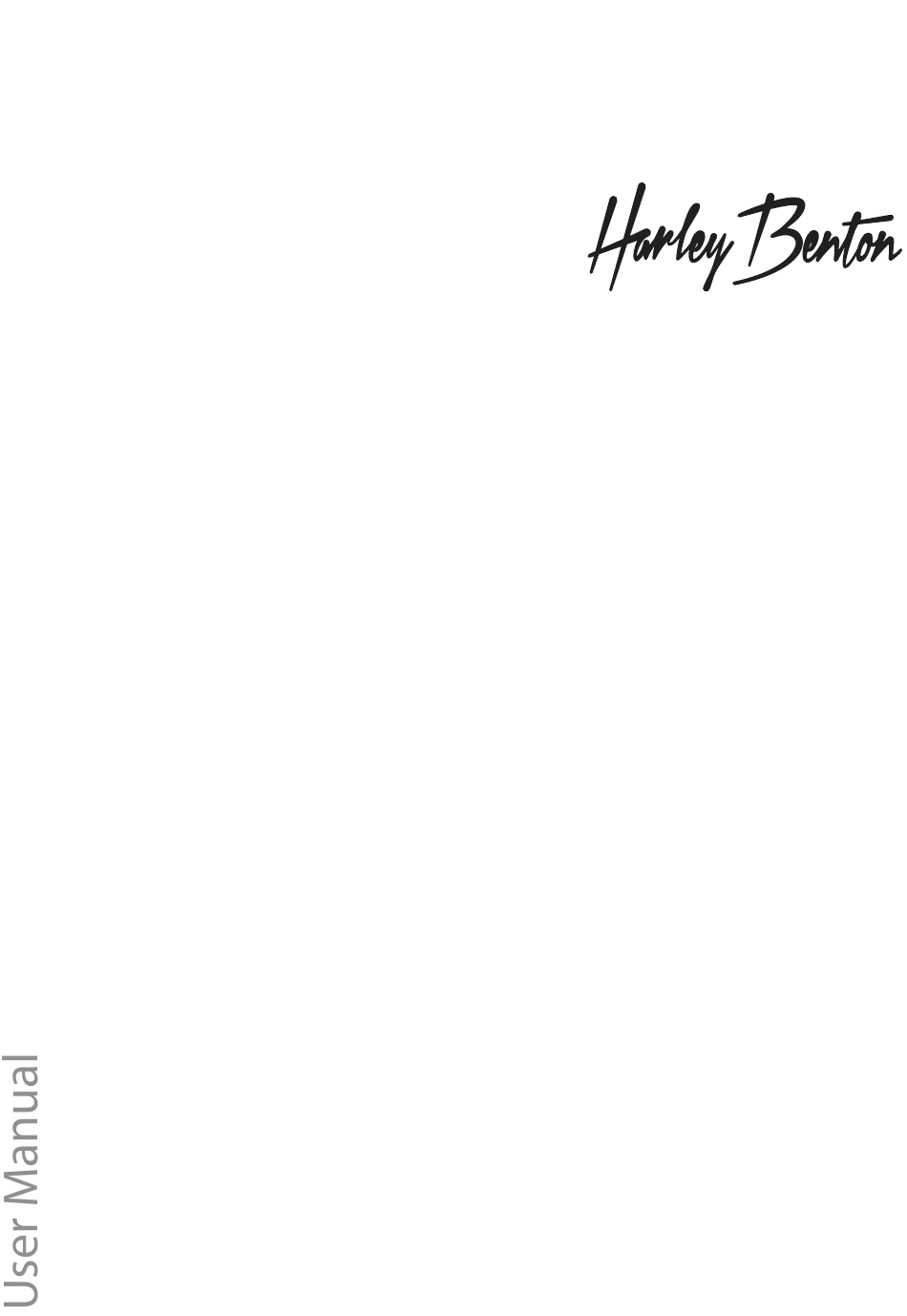

- Page 1 Electric Guitar Kit Victory Electric Guitar Kit...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 17.04.2023, ID: 547712...
-
Page 3: Table Of Contents
Table of contents Table of contents Safety instructions......................... 4 Scope of delivery........................5 Assembly instructions......................6 3.1 Painting body and neck....................6 3.2 Mounting the machine heads..................7 3.3 Mounting the guitar neck.................... 9 3.4 Wiring pots, pick-ups and switch................10 3.5 Mounting the bridge.................... -
Page 4: Safety Instructions
Safety instructions Safety instructions DANGER! Risk of injury and choking hazard for children! Children can suffocate on packaging material and small parts. Children can injure themselves when handling the product. Never allow children to play with the packaging material and the product. -
Page 5: Scope Of Delivery
Scope of delivery Scope of delivery Thank you for buying this guitar assembly kit. All wooden parts, hardware and elec‐ trical components are contained in this package. The picture below shows the individual items included in the delivery. The assembly is described in detail in the following sections. Electric Guitar Kit Victory Electric Guitar Kit... -
Page 6: Assembly Instructions
Assembly instructions Assembly instructions Useful tools and materials Provide the following tools and materials for the assembly of the guitar: Phillips screwdriver Rubber mallet Ring wrench Pliers Varnish and accessories Needle files Sandpaper Body and neck should by all means be painted before assembly. When applying spray lacquer or paint, you must wear a dust mask. -
Page 7: Mounting The Machine Heads
Assembly instructions Neck finish The guitar neck is sealed with a thin layer of matt lacquer before delivery and is ready to use. If you still want to treat the neck with coloured or clear lacquer, proceed as follows. Carefully mask off the fingerboard and all frets before painting. Make sure that all sur‐ faces are free of dust and dirt. - Page 8 Assembly instructions Turn the neck and fasten all the machine heads finger-tight to the front of the head‐ stock with the washers and nuts provided. Tighten the nuts on the front with an appropriate spanner, then tighten the screws on the back firmly to fasten the tuners. Electric Guitar Kit Victory Electric Guitar Kit...
-
Page 9: Mounting The Guitar Neck
Assembly instructions 3.3 Mounting the guitar neck Place the body on a suitable work surface. Use a soft pad in order to avoid damage to the surface. Insert the neck into the neck cutout. If necessary, use a sharp chisel or sandpaper to adjust it. -
Page 10: Wiring Pots, Pick-Ups And Switch
Assembly instructions 3.4 Wiring pots, pick-ups and switch The wiring of the pick-ups, the pots, the jack socket, and the switch is made via plug connectors. Put the cable harness with the pots, the jack socket, and the switch into the back recess as shown in the following picture. - Page 11 Assembly instructions Thread the neck pick-up cable (yellow) as shown in the picture through the cable channel into the recess for the bridge pick-up and from there further through the cable channel into the back recess for the pots. Thread the bridge pick-up cable (red) as shown in the picture through the cable channel into the back recess for the pots.
- Page 12 Assembly instructions Connect the switch, the pots, and the pick-ups as shown in the picture to the cable harness plug connectors in the back recess. Ensure that the pick-ups sit in the centre of the front recesses and are aligned with the pre-drilled screw holes.
- Page 13 Assembly instructions Put the supplied nuts and washers onto the switch, the pots, and the jack socket on the front and tighten the nuts with an appropriate spanner. Then screw the plastic plate to cover the recess for the pots with the supplied screws in the pre-drilled holes on the back of the body.
-
Page 14: Mounting The Bridge
Assembly instructions 3.5 Mounting the bridge Place the body on a suitable working surface. Use a soft pad in order to avoid damage to the surface. Use a rubber mallet to drive the bolt fasteners for the bridge into the body as shown. Make sure there is sufficient contact between the stripped end of the grounding cable and the bridge bolt. -
Page 15: Mounting Pot Knobs And Strap Pins
Assembly instructions Put the bridge onto the mounting bolts. The bridge is still loose and is only fixed when stringing the guitar. 3.6 Mounting pot knobs and strap pins Push the pot knobs on the shaft of each potentiometer. Electric Guitar Kit Victory Electric Guitar Kit... - Page 16 Assembly instructions Screw the strap pins with the supplied screws into the pre-drilled holes in the body as shown. Electric Guitar Kit Victory Electric Guitar Kit...
-
Page 17: Mounting Tailpiece
Assembly instructions 3.7 Mounting tailpiece Place the body on a suitable work surface. Use a soft pad in order to avoid damage to the surface. Use a rubber mallet to drive the tailpieces all the way into the back recesses in the body as shown. -
Page 18: Adapt Strings, Neck Relief, String Action And Pick-Ups
Assembly instructions 3.8 Adapt strings, neck relief, string action and pick-ups Stringing Fitting strings to the guitar is achieved by threading them through the tailpiece from the rear to the front via the bridge and the corresponding saddle. Wrap the end of the string a few times around the peg and first hand-tighten each string. - Page 19 Assembly instructions Adjusting the neck relief The neck is equipped with a steel truss rod that can be used to adjust the relief to your preferences. After tuning the strings, check the relief by pressing on the low E string at the first and twelfth fret.
- Page 20 Assembly instructions Screw the cover for the truss bar onto the header headstock. Electric Guitar Kit Victory Electric Guitar Kit...
- Page 21 Assembly instructions Adjusting the position of the strings Once the neck has the desired relief, you can use the screws for each saddle to adjust the string position to suit your taste. Here, too, the lower the strings, the easier they are to fret, but they will buzz more easily when the guitar is played.
-
Page 22: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
