- Page 1 D-SEED Effects Pedal...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 01.09.2022, ID: 318119 (V3)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................5 1.1 Further information........................... 6 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 7 Safety instructions............................. 8 Features............................... 10 Installation and starting up........................ 11 Connections and operating elements................... 12 Operation..............................14 Technical specifications........................ - Page 4 D-SEED Effects Pedal...
-
Page 5: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. D-SEED... -
Page 6: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 7: Symbols And Signal Words
General information Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. -
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for sound processing of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating conditions is con‐ sidered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 9 Safety instructions NOTICE! External power supply The device is powered by an external power supply. Before connecting the external power supply, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly the user.
-
Page 10: Features
Features Features Tap Tempo function Two preset channels Delay up to 6 seconds Sound settings: COPY, ANALOG, MODULATION, REVERSE D-SEED Effects Pedal... -
Page 11: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -

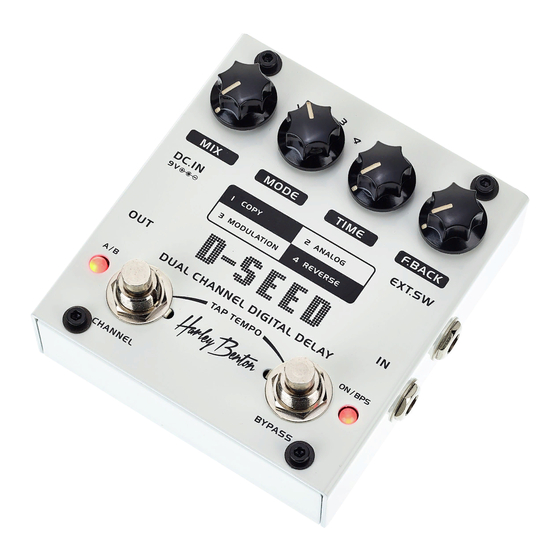

Page 12: Connections And Operating Elements
Connections and operating elements Connections and operating elements ö & MODE TIME f.BACK DC.IN EXT.SW 1 COPY 2 ANALOG 3 MODULATION 4 REVERSE D-S E E D DUAL CHANNEL DIGITAL DELAY TAP TEMPO ON/BPS BYPASS D-SEED Effects Pedal... - Page 13 Connections and operating elements 1 [MIX] | rotary control to adjust the effects ratio to the overall volume 2 [MODE] | rotary control to select the sound setting 3 [TIME] | rotary control to adjust the delay 4 [f.BACK] | rotary control to adjust the feedback 5 [EXT.SW] | jack socket for an external foot switch to switch between channel A and B (not included) 6 [IN] | 1/4"...
-
Page 14: Operation
Operation Operation Power on Once power is applied, the unit is in bypass mode. The [BYPASS] foot switch allows you to switch between bypass and normal operation. Sound settings Use the [MODE] rotary control to select the desired sound setting: [1 COPY]: Reproduces your instrument's original sounds without any colouring. - Page 15 Operation TAP TEMPO function The TAP TEMPO function allows you to set two different delay times. First enable the desired preset memory using the [CHANNEL] foot switch (LED off = preset A, LED on = preset B). Simul‐ taneously press the [CHANNEL] and the [BYPASS] foot switches at the desired time interval twice in succession (e.g.
-
Page 16: Technical Specifications
Technical specifications Technical specifications Input connections Power supply Socket for power adapter Instrument 1/4" jack socket External foot switch 1/4" jack socket Output connections 1/4" jack socket Delay time max. 6 s Current consumption 75 mA Power supply External power adapter, 100 - 240 V 50/60 Hz Power adapter Secondary current... - Page 17 Technical specifications Further information Battery operation Analogue Tap function includes power supply no, optionally available (item no. 409939) D-SEED Effects Pedal...
-
Page 18: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... -
Page 19: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 20 Notes D-SEED Effects Pedal...
- Page 21 Notes D-SEED Effects Pedal...
- Page 22 Notes D-SEED Effects Pedal...
- Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
