Page 1: Connessione Elettrica E Controllo Funzionale

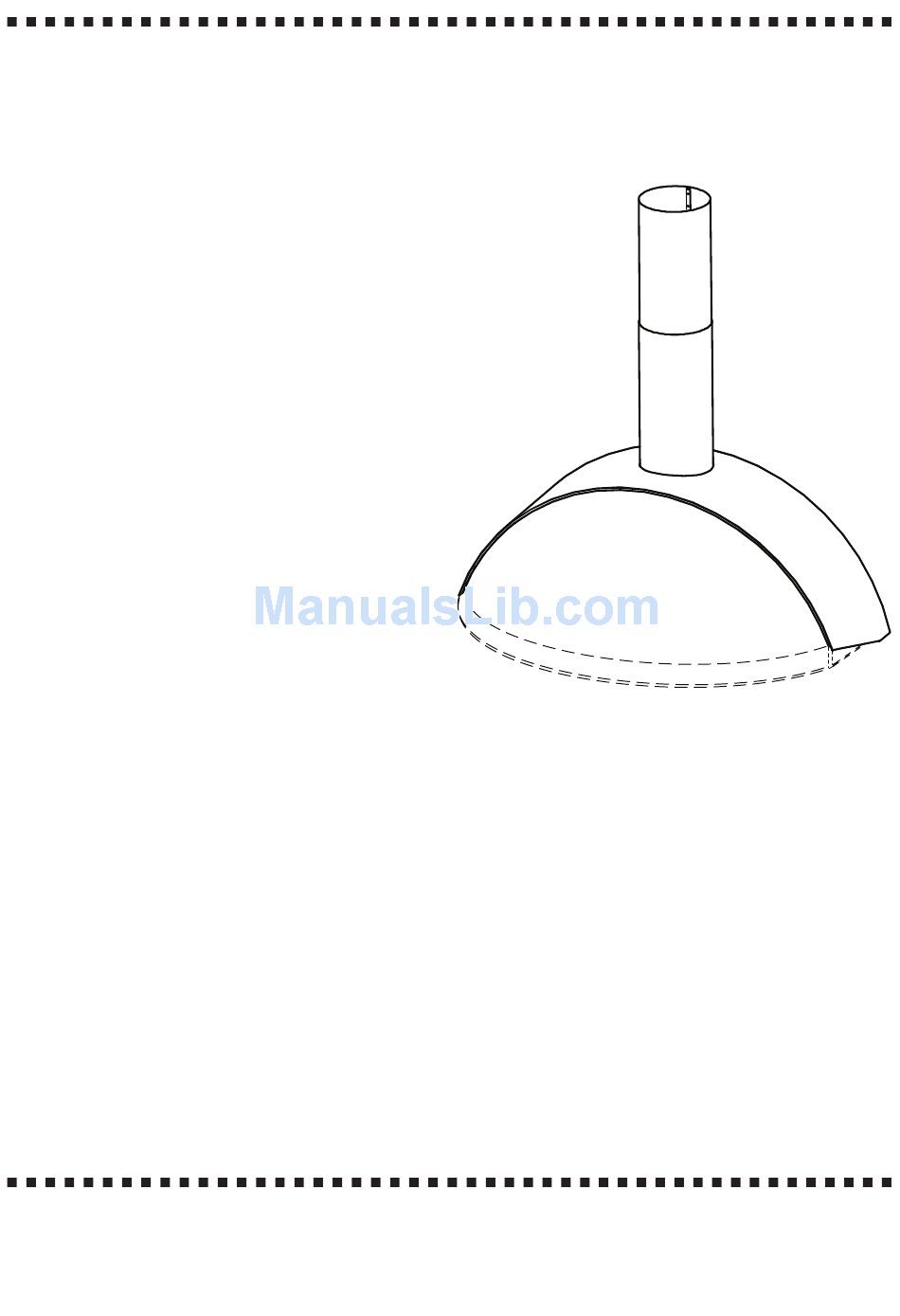

Libretto Istruzioni Instructions Booklet Mode d’emploi Bedienungsanleitung Gebruiksaanwijzing Mega... -
Page 2: Table Of Contents
Contenuti - Contenents - Sommaire - Inhalt - Inhoud Generalità ........................General Information ....................Generalites ........................Allgemeines ......................... Algemeen ........................Componenti ........................ Components ........................ Composants ......................... Bauelemente ........................ Componenten ......................Avvertenze per la Sicurezza ..................Safety Warnings ......................Conseils concernant la Securite .................. -
Page 3: Illuminazione
Contenuti - Contenents - Sommaire - Inhalt - Inhoud Montaggio del camino telescopico................Mounting the telescopic chimney stack ..............Montage de la cheminée télescopique ..............Montage des teleskopierbaren Kamins ..............Montage uitschuifbare schouw ................Avvertenze per la Sicurezza ..................Safety Warnings ...................... -
Page 4: General Information
Part 1 - INSTALLATION INSTRUCTIONS 1 - GENERAL INFORMATION This canopy hood is designed to be fixed to any rigid vertical surface, over a gas or electric hotplate and can be used either in the extraction mode (ducted to the outside) or in the recirculation mode (internal recycling). -
Page 5: Installation
4.1 - Mounting the support bracket. Backing. Refer to (figs. 2a-b): 1 - On the wall draw a vertical line to the ceiling, in the centre of the area where the hood is to be mounted. This enables vertical alignment of the various parts. -
Page 6: Electrical Connection And Functional Check
4.5 - Mounting the telescopic chimney stack 1 - Fixing the telescopic chimney stack a) The upper stack S must be fixed to the ceiling or to the shelf that delimits the upper part of the kitchen units, as follows: a) The chimney stack fitting R must be separated from the inside ring F by cutting the four joining tabs (fig. -
Page 7: Safety Warnings
BUTTON L = Turns the lighting system on and off; BUTTON V1 = Turns the on and off at low speed. This is ideal to obtain a particularly silent but continuous flow of air when the level of cooking fumes is low;... -
Page 8: Illumination
Remove the metal terminals T. The glass will stay hooked to tabs Z. b) Slide the glass to one side until the opposite end is free (arrow 1), then pull gently down (arrow 2), then slide in the opposite direction (arrow 3) until the glass is freed. Replace the bulb or neon tube and replace the glass, reversing the removal sequence.
