Summary of Contents for JUNO JDK5535-EF

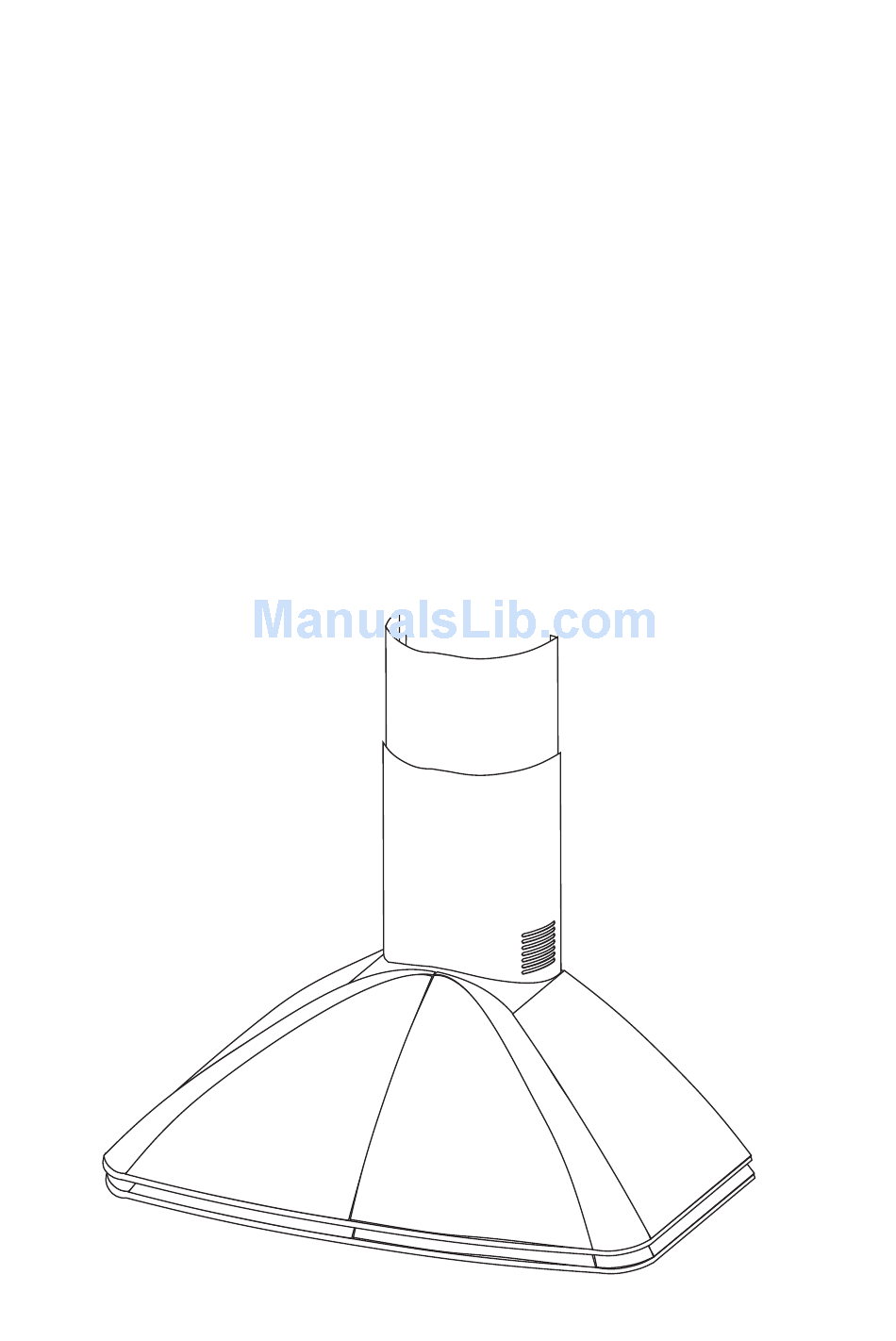

- Page 1 Istruzioni per l’uso Operating Instructions Mode d’emploi Bedienungsanleitung Gebruiksaanwijzing Manual de instrucciones...
-
Page 2: Part 1 A - Installation Instructions
3.9 - If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then this must be of the room sealed or balanced flue type. If other types of flue or appliance are fitted ensure that there is an adequate supply of air into the room. - Page 3 4 - Pilot drill all the hole positions as marked on the wall using an 8 mm drill and fix the wall brackets 1-2 using the rawl plugs and screws supplied.
-
Page 4: Operation
3.2 part 2 2 - Recirculation fitting a - The filtered air is returned to the room through the two side grilles on the U-shaped lower section I, which are either formed in the metal itself. b - Fix the metal plug T onto the bottom half-pipe I using the two screws provided (Fig. 5). -
Page 5: Maintenance
2 - Replacement To remove the charcoal filters place on hand on one filter at a time and turn it toward the front part. The charcoal filter can now be removed (Fig. 9). Always ensure to replace both filters at the same time. - Page 11 Dir. 89/336/CEE 73/23/CEE 4324491 02 - 021029...
