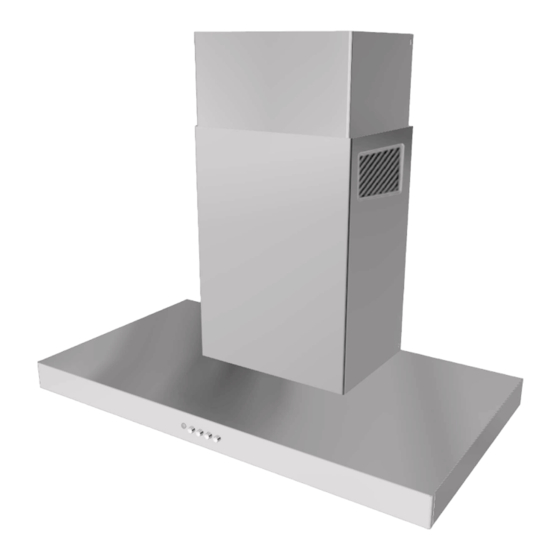

JUNO JDK8830A Installation, Use And Maintenance Manual

Hide thumbs Also See for JDK8830A:
Table of Contents

Advertisement

Quick Links

Download this manual
MANUALE DI INSTALLAZIONE, USO E MANUTENZIONE
INSTALLATION, USE AND MAINTENANCE HANDBOOK
MANUEL D'INSTRUCTIONS POUR L'INSTALLATION, L'EMPLOI ET L'ENTRETIEN
HANDBUCH FÜR INSTALLATION, BEDIENUNG UND WARTUNG
INSTRUCTIES VOOR MONTAGE, GEBRUIK EN ONDERHOUD
MANUAL DE INSTRUCCIONES, USO Y MANTENIMIENTO
MANUAL DE INSTRUÇÕES, UTILIZAÇÃO E MANUTENÇÃO
All manuals and user guides at all-guides.com
I
GB
F
D
NL
E
P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JDK8830A and is the answer not in the manual?

Questions and answers

Related Manuals for JUNO JDK8830A

Summary of Contents for JUNO JDK8830A

  • Page 1 All manuals and user guides at all-guides.com MANUALE DI INSTALLAZIONE, USO E MANUTENZIONE INSTALLATION, USE AND MAINTENANCE HANDBOOK MANUEL D’INSTRUCTIONS POUR L’INSTALLATION, L’EMPLOI ET L’ENTRETIEN HANDBUCH FÜR INSTALLATION, BEDIENUNG UND WARTUNG INSTRUCTIES VOOR MONTAGE, GEBRUIK EN ONDERHOUD MANUAL DE INSTRUCCIONES, USO Y MANTENIMIENTO MANUAL DE INSTRUÇÕES, UTILIZAÇÃO E MANUTENÇÃO...
  • Page 2 All manuals and user guides at all-guides.com Contenuti - Contenents - Sommaire - Inhalt - Inhoud - Contenido - Conteúdo Generalità ..........• Montaggio del corpo cappa General Information ........• Fixing the canopy hood Generalites ..........• Montage du corps de hotte Allgemeines ..........
  • Page 3 All manuals and user guides at all-guides.com Contenuti - Contenents - Sommaire - Inhalt - Inhoud - Contenido - Conteúdo Avvertenze per la Sicurezza ....• Pulizia Safety Warnings ........• Cleaning Conseils concernant la Securite ..... • Nettoyage Sicherheitshinweise ........ •...

  • Page 4: Part 1 - Installation Instructions

    All manuals and user guides at all-guides.com Part 1 - INSTALLATION INSTRUCTIONS 1 - GENERAL INFORMATION This canopy hood is designed to be fixed to any rigid vertical surface, over a gas or electric hotplate and can be used either in the extraction mode (ducted to the outside) or in the recirculation mode (internal recycling).

  • Page 5: Part 2 - Use And Maintenance Instructions

    All manuals and user guides at all-guides.com Part 2 - USE AND MAINTENANCE INSTRUCTIONS 3.6 - Never do flambé cooking under this cooker hood. 3.7 - Never leave frying pans unattended during use as overheated fats and oils may catch fire.

  • Page 6: Electrical Connection And Working Test

    All manuals and user guides at all-guides.com Part 2 - USE AND MAINTENANCE INSTRUCTIONS d) Mark the centres for the keyhole bracket fixing screws. 4 - Pilot drill all the hole positions as marked on the wall using an 8 mm drill and fix the wall brackets 1-2 using the rawl plugs and screws supplied.
  • Page 7 All manuals and user guides at all-guides.com Part 2 - USE AND MAINTENANCE INSTRUCTIONS d) If the hood is provided with the charcoal filters fitted, the filters should be removed (see paragraph 3.3 2 part 2 2 - Recirculation fitting (fig. 6) a) The filtered air is returned to the room through the two side grilles on U-shaped lower section I as a plastic insert.

  • Page 8: Operation

    All manuals and user guides at all-guides.com Part 2 - USE AND MAINTENANCE INSTRUCTIONS 1 - Safety warnings It is most important that all the warnings shown in paragraph 3 of the Installation Instructions are strictly observed. Moreover, pay special attention to the following warnings during the use and maintenance of the cooker hood: 1.1 - The grease filters and the charcoal filter should be cleaned or replaced as recommended by the manufacturer or more frequently if the hood is used consistently...

  • Page 9: Active Carbon Filter

    All manuals and user guides at all-guides.com Part 2 - USE AND MAINTENANCE INSTRUCTIONS 2 - Replacement Remove the filters one at a time, pushing the handle towards the rear of the hood (fig. 10). When replacing, ensure that the handle faces outwards. ATTENTION - THERE COULD BE A POSSIBLE FIRE HAZARD IF THE FILTERS ARE NOT REPLACED ACCORDING TO THESE INSTRUCTIONS.
  • Page 10 All manuals and user guides at all-guides.com A18_02...
  • Page 11 All manuals and user guides at all-guides.com A18_03 A18_04 A18_06...
  • Page 12 All manuals and user guides at all-guides.com A18_07 V1 V2 V3 A18_07 0 - 1 0 - 1...
  • Page 13 All manuals and user guides at all-guides.com A18_08 A18_09 A18_10...
  • Page 14 All manuals and user guides at all-guides.com A18_11...
  • Page 15 All manuals and user guides at all-guides.com 4329393 01 - 230200...
