HOMCOM 820-399V00 Manual page 6

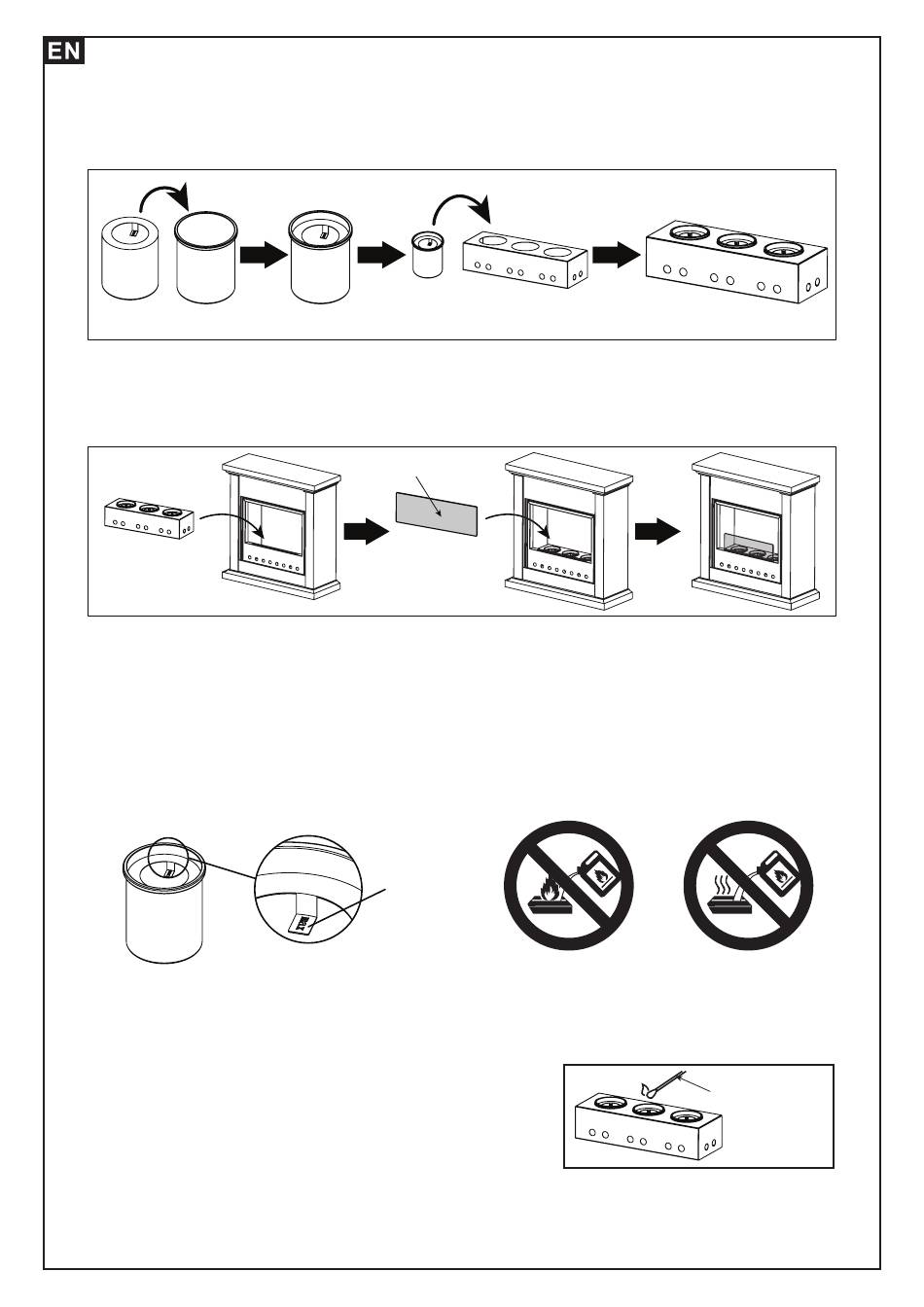

7. Follow the steps below to install the other parts provided.
(1). Place the burner pot in the fire bowl body carefully, make the burner pot
levelered (see Figure 4). The fire bowl can hold three burner pots at one time.
(2). Place the fire bowl at the bottom center of the fireplace body, then insert the
glass shield into the groove carefully and tenderly, make sure it stands straight
upward (see Figure 5).
Safe way to (re-) fill the appliance
-Use a funnel for filling the appliance or use a dispenser bottle to fill the appliance.
-Do not fill the burner pot to a level above the "max" indicator (see Figure 6).
-If spillage occurs during the filling process, remove the spillage immediately and
always before lighting. Use an appropriate absorbent tissue.
-Never refill when light on.
-Before refilling the appliance after extinguishing the fire, make sure to wait for at
least 15 minutes to cool down completely.
Figure 6
Safe way to re-light the fire
After filling: ignite the appliance with a suitable
lighter (e.g. long match, long-end candle, extended
butane lighter, etc.), (see Figure 7), make sure that:
-The extinguish cover is removed from the burner
pot.
-Igniting must be done at safe distance and at least
14 cm from the burning opening.
-The fire can be witnessed during this process.
DO NOT IGNITE THE APPLIANCE AT A DISTANCE CLOSER THAN 14 CM.
Figure 4
glass shield
Figure 5
max
Do not fill fuel into
the open flame
5
Do not fill fuel into
the hot burner
lighter
Figure 7
