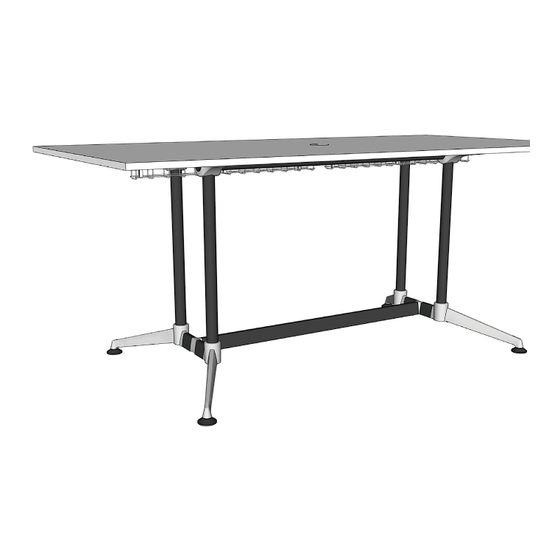

- Page 1 Modulus Twin Pole Single Span Table Installation Guide TOOLS REQUIRED: Powered screwdriver. www.workspace48.com...
- Page 2 Modulus Twin Pole Single Span Table INSTALLATION GUIDE Slide the large foot and T tube connector into the collar, place the 150° gasket on Using 2 T tubes, connect the assembled corner feet to the bottom T connector, top, and fully tighten the 2 M8x16mm bolts into the collar. (Repeat with all 150°...
- Page 3 Modulus Twin Pole Single Span Table INSTALLATION GUIDE Place a feet tube on top of each collar, and the upper wrist assembly on top of Place the assembled leg sets together using the bottom rail, and fully tighten the the feet tubes. Fully tighten the M10x30mm bolts through the upper wrists, and M8x16mm bolts to lock all legs together.
- Page 4 Modulus Twin Pole Single Span Table INSTALLATION GUIDE Tighten all small grub screws located on the bottom of each upper wrist. Snap the plastic support brackets onto the centre of each top rail. The frame assembly is now complete. Fully tighten all M5x30mm screws through each upper wrist into the work surface.
- Page 5 Modulus Twin Pole Single Span Table INSTALLATION GUIDE Attach cable baskets to the underside of work surface using the instructions supplied. www.workspace48.com...
