Summary of Contents for Fagor IFA-80 AL - ANNEXE 410
-

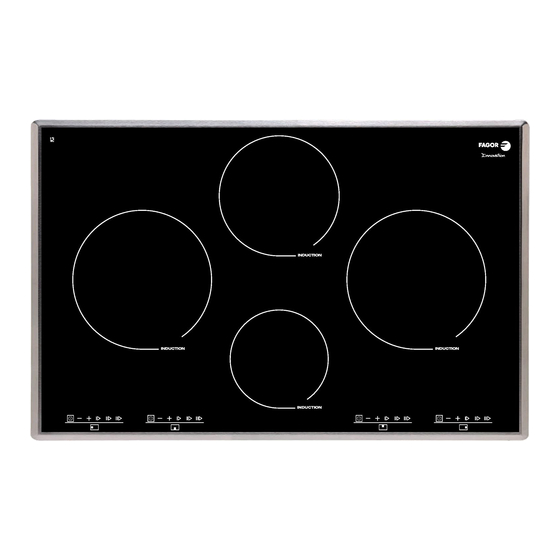

Page 1: Induction Cooktop
CARE & INSTRUCTIONS MANUAL INDUCTION COOKTOP • IFA-80 AL Note: To avoid accident and damage, please read these instructions carefully before operating the appliance. -
Page 2: Cooktop Surface
Cooktop Surface INSTALLER: Please leave this manual with the unit for the owner. OWNER: Please keep this manual for future reference. IMPORTANT: Local codes vary. Installation, electrical connections and grounding must comply with all applicable codes. Save this manual for the local electrical inspector’s use. -
Page 3: Table Of Contents
Your safety and ease of use are important to us. In this manual we have provided a number of safety warnings as well as numerous tips and hints for using the unit. Warnings and tips are marked with the following symbols:... -
Page 4: Important Safety Instructions
3 - Do Not Leave Children Alone - Children should not be left alone or unattended in an area where the appliance is in use. They should never be allowed to sit or stand on any part of the appliance. 4 - Wear Proper Apparel - Loose-fitting garments or hanging sleeves should never be worn while using the appliance. - Page 5 Contact a qualified technician immediately. 16 - Clean Cooktop With Caution - If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn. Some cleaners can produce noxious fumes if applied to a hot surface.
-
Page 6: Installation
If your counter is produced from porous materials which tends to swell if in contact with humidity and water, use proper sealants on the edge which would prevent any penetration of humidity and water. -
Page 7: Installation Requirements
If the unit is not going to be installed for some time, you should keep it in its original packaging and store it in a dry and safe place. -
Page 8: Electrical Requirements
An approved connector must be used for connect- ing the conduit to the junction box. A three wire, 2 poles, 240 V, 60 Hz service with minimum 30 A cir- cuit protector must be provided. The red and the black wire from the unit are to be connected to the service (”hot”) wires, and the green wire is to be... -
Page 9: Installation Instructions
The unit must be installed so that it can be pulled out without difficulty from the cut-out for servicing or cleaning. Your cooktop must always have adequate circulation. Make sure that the air intake and its exhaust are not obstructed. -
Page 10: Before First Use
If a crack appears in the glass surface, disconnect the unit immediately to avoid any risk of electric shock. If the unit is connected directly to supply inside a junction box, then disconnect its breaker or remove the fuses manually. -
Page 11: Features And Benefits Of Cooking By Induction
Induction cooking elements are sensitive to the cookware type being used : • if there is no cookware placed on the burner, or if the cookware is not of induction grade, there will be no power emitted by the burner. -
Page 12: Operation Of The Cooktop
For simultaneous cooking, is recommended the use of cooking zones located on opposite sides of the hob. Cook on the same side of a cooking zone at maximum power results in an automatic limitation of the other cooking zone on that side, which is indicated... -
Page 13: Cookware For Your Induction Unit
Never leave an empty piece of cookware on an induction heating element for more then a few seconds. If a cookware is left on an element at full power, the temperature of the dish may increase rapidly and the safeties will not engage. -
Page 14: Heating Zones, Burner Sizes & Cookware
If the display flashes, your cookware cannot be used with induction cooking. You can also use a magnet to test the cookware: If a magnet "sticks" to the bottom of the cookware, it is compatible with induction. 4.4 HEATING ZONES, BURNER SIZES & COOKWARE... -
Page 15: Power Sharing
Do not connect any appliances to the plugs above or near to the induction cooktop; connection cable insulation can melt if in contact with heat, and this may result in an injury and property damage. Your cooktop must never be used as a storage space or surface for piling up of any material. -
Page 16: Care And Cleaning
5 CARE AND CLEANING Cleaning of an induction cooktop is easy. Read and follow these recommendations: WHAT TO DO CLEANING AGENTS TYPE OF STAINS/SPOTS Soak the area to be cleaned with Cleaning sponges & mild Minor soapy water; then wipe it clean. -
Page 17: Troubleshooting
If any crack on the glass top is noticed or the glass is broken DO NOT USE THE UNIT. Disconnect the electrical supply to the unit by tripping the breaker off (if the unit is hard-wired to the supply or just unplug the unit (if there is a plug on the supply cable). -
Page 18: Customer Service
7 CUSTOMER SERVICE Write the model and serial number on the lines below, you’ll need them in the event of a service call. The serial and model numbers are located under the cooktop, on the metal frame. Model: __________________________________ Serial: ___________________________________... -
Page 19: Product Warranty
Some states do not allow the exclusion or limitation of incidental or consequential damages so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. - Page 20 FAGOR AMERICA, INC. PO BOX 94 LYNDHURST, NJ 07071 Toll Free: 1.800.207.0806 Email: infoappliances@fagoramerica.com www.fagoramerica.com The manufacturer reserves the right to modify the items described in this manual.
