Summary of Contents for Topp Music Gear X Series X 8A

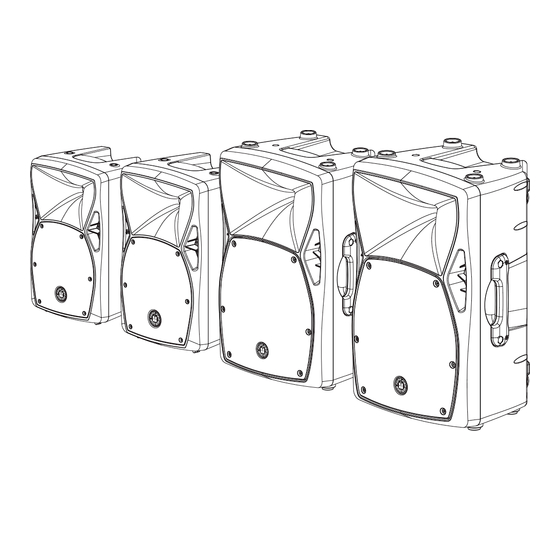

- Page 1 X 8A / 10A / 12A / 15A / X 12A-MP / X 15A-MP NF04316-1.0...
-
Page 3: Table Of Contents
INTRODUCTION HOOKUP DIAGRAMS INSTALLATION TIPS QUICK START RIGGING PANEL DESCRIPTION FREQUENCY RESPONSE DIAGRAM WIRE CONNECTIONS TECHNICAL SPECIFICATIONS WARRANTY * X 12A, X 12A-MP, X 15A, X 15A-MP are Active Speakers for professional use , they can be used in following electromagnetic environment: commercial and light industrial, urban outdoors. - Page 4 X 12A / X 12A-MP X 15A / X 15A-MP...
-
Page 5: Hookup Diagrams
Hookup Diagrams Two speaker in stereo operation X 8A MAIN OUT R MAIN OUT L LINE IN LINE IN MIXER Multiple speakers with the same stereo source MIXER X 10A MAIN OUT LEFT MAIN OUT RIGHT LINK TO LINK TO LINK NEXT SPEAKER LINK... -
Page 6: Installation Tips
Installation Tips 1- Speakers should be placed in a position that allows for unobstructed sound projection. In many instances is beneficial for speakers to be elevated on tripod stands to achieve maximum dispersion and reach. 2- Use professional advice or service when hanging and installing speakers. Please take precautions to secure them to prevent them from falling and hurting someone. -
Page 7: Quick Start
Quick Start Make all initial connections with all the equipments powered off, and ensure that all the main volume controls are turned completely down. X 12A / X 12A-MP 1). Connect one side of the signal cable at your audio mixer into output left / right (with Stereo- Jack or XLR) and the other side of the cable into the line input Stereo-Jack) of your active speaker cabinet. -
Page 8: Rigging
Rigging The X series speaker cabinet also provides the suspension points for installation. (M10 1.5PH LENGTH: 30mm). X 8A For further details, please refer to the right illustration(OPTIONAL FUNCTIONAL) Eye bolt Suspension Point X 10A The floor use is as a function of a monitor when the angle is 45... -
Page 9: Panel Description
Panel Description X 8A-MP / X 10A-MP / X 12A-MP / X 15A-MP AMP INTERFACE (1) BI-POLAR MAIN POWER SWITCH (2) AC POWER SOCKET WITH MAIN FUSE (3) LINE/MIC INPUT ON COMBO CONNECTOR (X 8A /10A ONLY LNE IN ) (4) MIX OUT ON XLR CONNECTOR (X 8A /10A ONLY LINK) (5) "INPUT SENSITIVITY"... - Page 10 Panel Description USB PLAYER (a) Insert USB player (b) Display the status of USB playing (c) Press this key to start playing or Press this key to pause (d) Play the last song or decrease the volume after pressing 2 seconds (e) Play the next song or increase the volume after pressing 2 seconds REPEAT MODE In the opening or playing state, press this key to select the four circling modes in order:...
- Page 11 X 8A X 10A...
- Page 12 X 12A / X 12A-MP X 15A / X 15A-MP...
-
Page 14: Frequency Response Diagram
Technical Specifications Model Active X 8A 2-Way Active Vented Speaker System Type 8" Woofer, 1.5"voice coil Transducer Low Transducer Driver 1" Ferrite Twitter, 1" Voice Coil Horn Coverage H XV 90 H x 60 V Frequency Response 68Hz-20KHz (-6dB) Crossover Frequency 2000Hz 113dB Max. - Page 15 Technical Specifications Model Active X 12A / X 12A-MP System Type 2-Way Active Vented Speaker 12" Woofer, 2" Voice Coil Transducer Low 1" Neodymium Driver, 1" Voice Coil Transducer High Horn Coverage H XV 90 H x 60 V Frequency Response 60Hz-20KHz (-6dB) Crossover Frequency 2100Hz...
