PROFESSIONAL SPEAKER SYSTEM
FORZA 15P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Forza 15P and is the answer not in the manual?

Questions and answers

Related Manuals for Topp Music Gear Forza 15P

Summary of Contents for Topp Music Gear Forza 15P

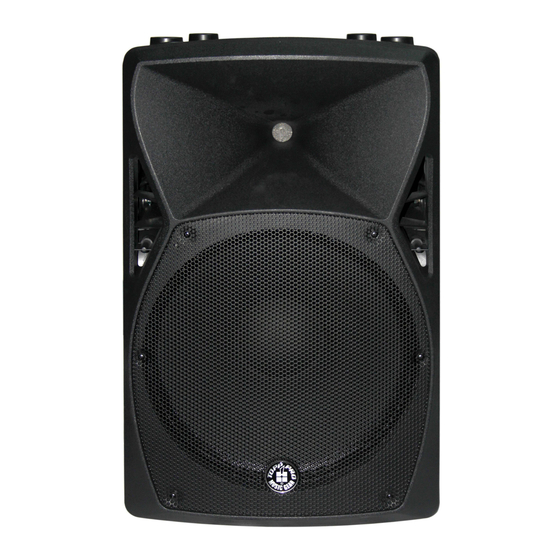

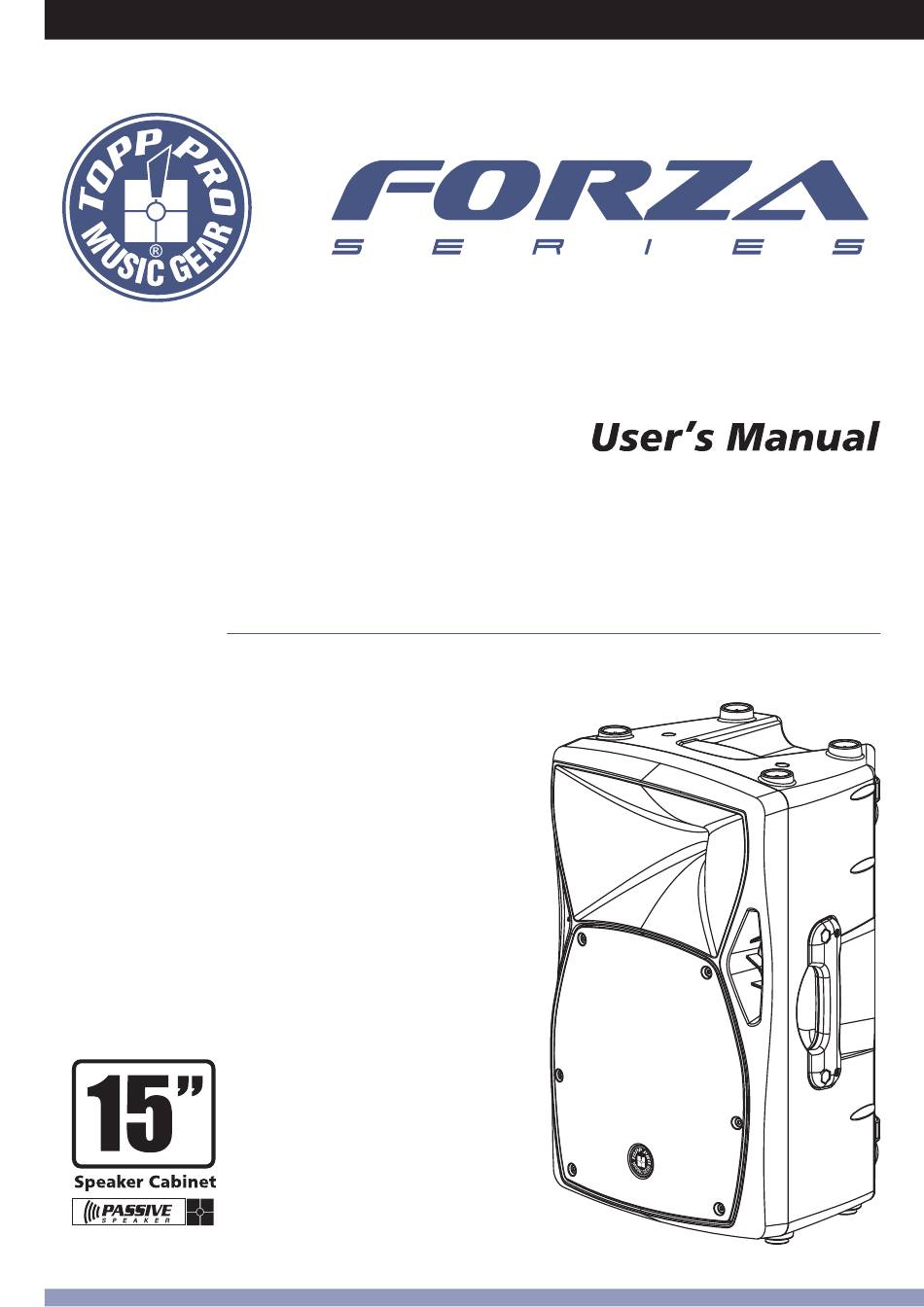

  • Page 1 PROFESSIONAL SPEAKER SYSTEM FORZA 15P...

  • Page 3: Table Of Contents

    1. Introduction 2. Installation Tips 3. Usefull Data 4. Hookup Diagrams 5. Rigging 6. Connecting Plate 7. Frequency Response Diagram 8. Wire Connections 9. Technical Specifications 10. Guarantee 11. Notes...

  • Page 4: Introduction

    The FORZA 15P, can be used for all types of applications including, but not limited to, churches, conference centers and discos. The woofer and driver combination provides excellent performance rivaling those cabinets costing much more.

  • Page 5: Hookup Diagrams

    5). Use PFL function to get the proper input level for the mixer, and adjust the main mix level control to manipulate the output level. 6). After using, turn off your stereo power amplifier first, then the mixer. FORZA 15P FORZA 15P SPEAKER CABLE...

  • Page 6: Rigging

    Rigging The FORZA series speaker cabinet also provides the suspension points for installation. (M10 x 1.5PH LENGTH: 30mm). For further details, please refer to the right illustration. Eye bolt Suspension Point...

  • Page 7: Connecting Plate

    Connecting Plate...

  • Page 8: Frequency Response Diagram

    Frequency Response Diagram FORZA 15P...

  • Page 9: Wire Connections

    The speaker connections are made via the rear panel 1/4" and/or Speakon® connectors for easy interface with industry standard cables. Standard, unshielded speaker wire (avail-able at your local pro audio or music store), with either 1/4" phone or Speakon connectors and wire gauge of 12-14 AWG is recommended.

  • Page 10: Technical Specifications

    Model Passive FORZA 15P 2-Way Vented Passive Speaker Cabinet System Type 800 Watts Program Power 1600 Watts Peak Power Max SPL(1M/1W) 129dB Max Frequency Response 55~20kHz (-6dB) Crossover 2.6kHz PTC Protection for HF Protection Nominal Impedance 8 Ohms 15" Woofer, 3" voice coil...

  • Page 11: Guarantee

    Guarantee...
  • Page 13 FORZA 15P...
  • Page 17 FORZA 15P FORZA 15P...
  • Page 20 FORZA 15P...
  • Page 22 FORZA 15P 800 Watts 1600 Watts 129dB 2.6kHz 1.35 632 x 386 x 366 mm 18.3kg/40.3(Ibs)
  • Page 24 NF04966-1.0...
