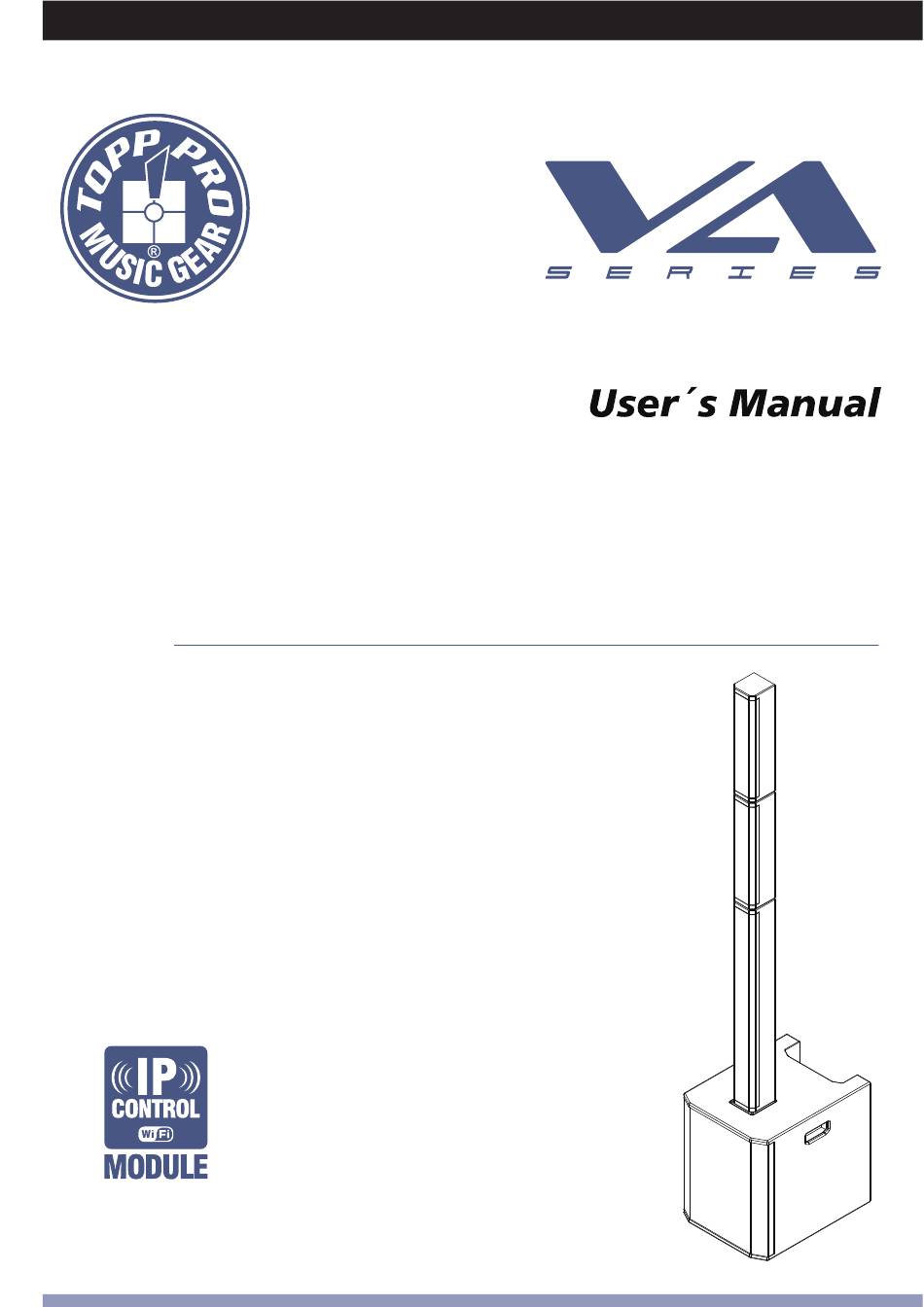

- Page 1 VA42BM / VA42TP / VA-WP VA12SA...
- Page 2 Important Safety Instructions...
-
Page 3: Table Of Contents
Table of Contents 1. INTRODUCTION 2. FEATURES 3. USEFULL DATA 4. QUICK START 5. CONNECT MANNER 6. BACK PANEL DESCRIPTION 7. CONNECTION PLATE SYSTEM 8. FREQUENCY RESPONSE DIAGRAM 9. WIRE CONNECTIONS 10. TECHNICAL SPECIFICATIONS 11. GUARANTEE 12. NOTES... -
Page 4: Introduction
Introduction Thank you for choosing TOPP PRO. The new TOPP PRO MUSIC GEAR cabinets have been designed to provide a cost effective high grade solution while maintainig high quality cabinet construction and optimum components. Our Professional Audio Products are designed and tested by a highly qualified engineering team with more than 20 years of experience. -
Page 5: Quick Start
Quick Start When mounting a speaker onto any stand, always ensure that the stand is on a flat, level sur-face, with the legs fully extended. Be sure to check that the maximum load weight for the stands is greater than the weight of the ARRAY SYSTEMS loudspeaker. Never use a stand with a maximum load weight lower than the speaker. -
Page 6: Connect Manner
Connect Manner Insert the 4 PCS of fixed legs of VA-WP into the fixed seat of SUB, It means the assembly and connection of signal cable completed, details as below picture#1. Snap the slot-terminal holder of VA42BM into the upper protruding holder of VA-WP, and then push VA42BM into slots along the opposite direction of grill. -
Page 7: Back Panel Description
BACK PANEL DESCRIPTION 1) AC POWER SOCKET WITH MAIN FUSE. 2) ON-OFF MAIN POWER SWITCH. 3) MP3 PLAY 4) CONVECTION FAN 5) IP CONTROL 6) THRU OUTPUT ON XLR CONNECTOR This is a male XLR-type connector that produces exactly the same signal that is connected to the main input jack or a mix of input1 and input2. -
Page 8: Connection Plate System
CONNECTION PLATE SYSTEM Make your initial connections with all the equipment powered off, and ensure that all the main volume controls are turned completely down. 1) Connect one side of the signal cable at your audio mixer into output left / right (with Stereo-Jack or XLR) and the other side of the cable into the line input (Stereo-Jack) of your active speaker cabinet. - Page 9 CONNECTION PLATE SYSTEM Make your initial connections with all the equipment powered off, and ensure that all the main volume controls are turned completely down. Two Active Subwoofers & Two Passive Satellite Speakers 1) Connect one side of the signal cable to the output of your mixer (left / right) with a TRS or XLR connector and the other side of the cable to the line input (combo) in the active subwoofer (with a TRS to XLR connector).
-
Page 10: Frequency Response Diagram
FREQUENCY RESPONSE DIAGRAM VA SYSTEM... -
Page 11: Wire Connections
WIRE CONNECTIONS... -
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS Passive Speaker VA42BM System Type 3.5" Passive Speaker System Output Power 120W Continuous, 240W Program, 480W Peak Sensitivity (1W/1M) 95dB Maximum SPL @ 1m 122dB Max.(calauated) Frequency Response(-6dB) 160Hz-20kHz Impedance 8 ohms Transducer Low 4 x 3.5'' Woofer , 1.0'' (25.4mm) Voice Coil Crossover Frequency 500Hz Dispersion(-6dB) - Page 13 TECHNICAL SPECIFICATIONS Active Subwoofer VA12SA System Type 12" Active Subwoofer Speaker Cabinet Frequency Response(-6dB) 40 Hz – 500 Hz Total Amplifier Power 1000 W Continuous/2000W Program/4000W Peak Class D @ 4 Ohms Amplifier, Subwoofer 500 W Continuous/1000W Program/2000W Peak Class D @ 4 Ohms 500 W Continuous/1000W Program/2000W Peak Class D @ 4 Ohms Amplifier, Satellite DSP Presets...
-
Page 14: Guarantee
GUARANTEE... -
Page 15: Notes
NF05206-1.0...
