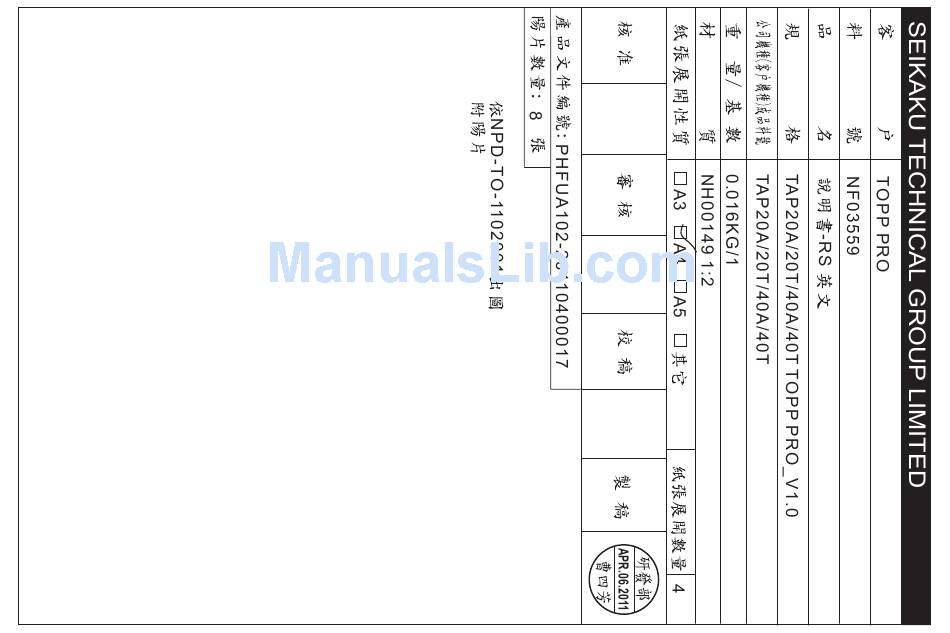

- Page 2 OUTDO O RS INDO O RS SPEAKER TAP20A/20T/40A/40T OUTDO O RS INDO O RS SPEAKER N F03559-1.0...
- Page 3 OUTDO O RS & INDO O RS OUTDO O RS & INDO O RS SPEAKER SPEAKER...
-
Page 4: Table Of Contents
OUTDO O RS & INDO O RS OUTDO O RS & INDO O RS SPEAKER SPEAKER Guarantee 1. INTRODUCTION ..............4 2. USEFUL TIPS..............4 3. USEFUL DATA ..............4 4. CONTROL ELEMENTS............5 5. CONNECTION DIAGRAM............6 6. INSTALLATION DESCRIPTION..........8 7. BLOCK DIAGRAM.............10 8. -
Page 5: Technical Specification
OUTDO O RS & INDO O RS OUTDO O RS & INDO O RS SPEAKER SPEAKER Introduction Technical Specification TAP20A/20T/40A/40T are designed for indoor and outdoor installation and Model TAP20T TAP20A public address system. They provide quality performance and alternative System Type... - Page 6 TAP40T from 5W minimum to 40W maximum for two different constant voltages 70V or 100V. In Off position the speaker system is disconnected TAP40T from the Line. For TAP40T, the bypass TAP20A is activated in 6 Ohms position. STEREO BALANCED +110 INPUT INPUT...
-
Page 7: Connection Diagram
Connection Diagram Frequency Response Diagram LEVEL DISTRIBUTION SYSTEM FOR TAP20T Level distribution system only controls "T" model. TAP20T have built-in transformer TAP20A of 70/100V , can connect many speakers to one channel, and only need one +110 amplifier. The amplifier output terminal "com/-''stands for negative polar, terminal... -
Page 8: Block Diagram
OUTDO O RS & INDO O RS OUTDO O RS & INDO O RS SPEAKER SPEAKER Block Diagram Connection Diagram LEVEL DISTRIBUTION SYSTEM FOR TAP40T Level distribution system only controls "T" model. TAP40T have built in transformer of 70/100V , can connect many speakers to one channel , and only need one amplifier. amplifier output terminal "com/-'' stands for negative polar, terminal "70V/100V/ +"... -
Page 9: Installation Description
Installation procedure of the bracket(bracket CS-2 is for TAP20A/20T, CS-3 for TAP40A/40T) is very simple & convenient, the appearance is pleasing to the eye.
