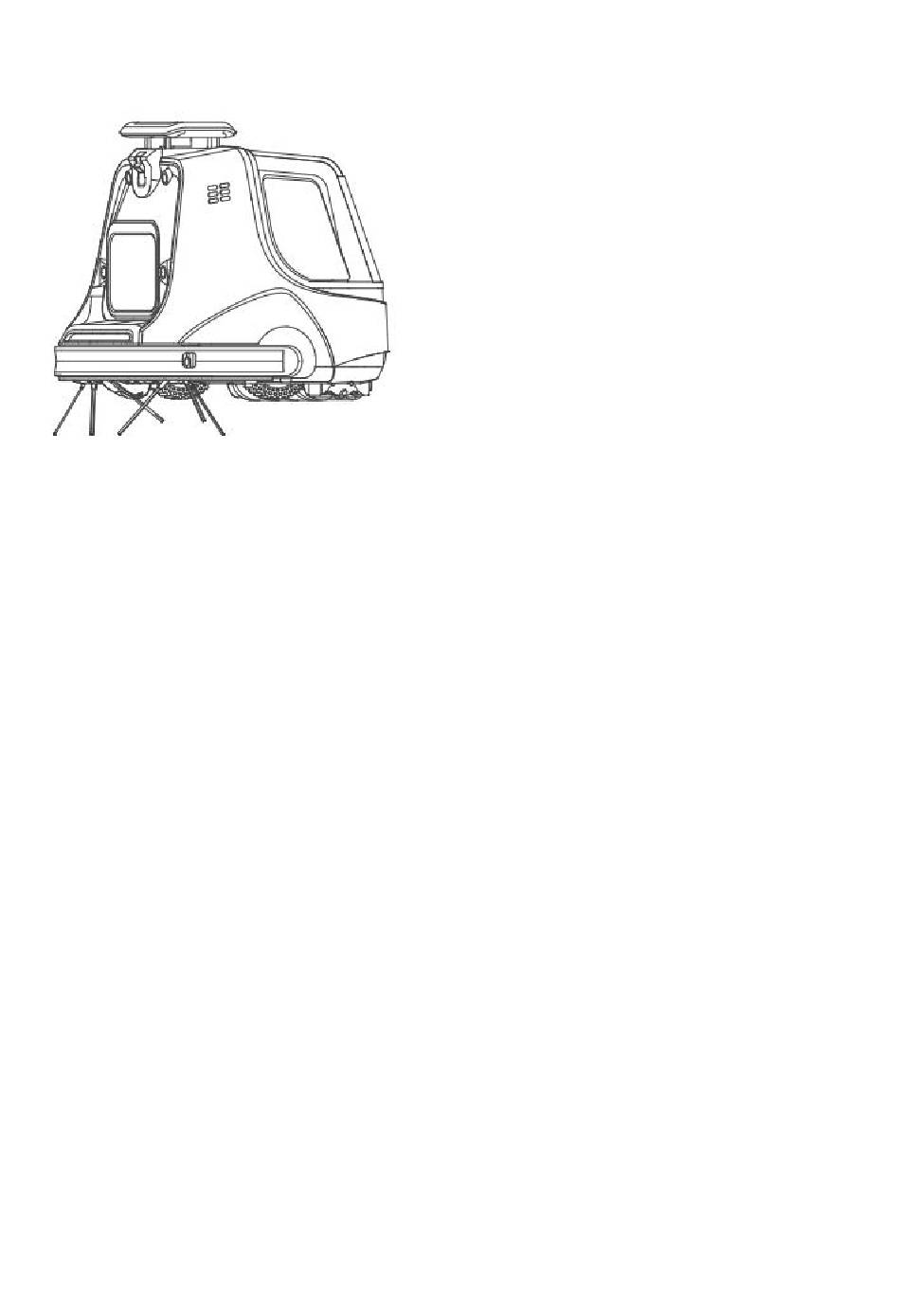

- Page 1 Commercial Robot Vacuum Cleaner User Manual...
-
Page 2: Table Of Contents
Contents 1. Safety Instructions........................3 2. Product Parts..............................5 2. 1 Main Body ............................5 2.2 Parts List..............................7 3. Product Operation............................8 3.1 Preparation Before Using........................8 3.2 Charging Mode.............................8 3.3 Charging............................... 9 3.4 Switch..............................10 3.5 Pause..............................10 3.6 Mode Selection...........................11 4. APP Download and Usage Instructions...................... 11 4.1 Registered Account.......................... -
Page 3: Safety Instructions
1. Safety Instructions Before using the electrical appliance, basic precautions should always be followed. READ ALL INSTRUCITONS BEFORE USING THIS APPLIANCE. PLEASE SAVE THESE INSTRUCTIONS. About Safety This device is not suitable to be used by children under 8 years old and people with physical or emotional disabilities. If to use, please operate the device under the supervision of the guardian. - Page 4 18. Prohibit using the damaged charging base. 19. Use the power cord carefully to avoid damage. Do not use the power cord to drag and pull the product or its charging base. Do not allow the product to run on the power cord and keep the power cord away from heat source. 20.
-
Page 5: Product Parts
2. Main Product And Parts 2.1 Main Body Switch Display Anti Bump Strip Side Brush Side Brush Roller Brush... - Page 6 2.1 Main Body QR Code Charging Pins Dustbin Filter Screen Battery Charging Pins...
-
Page 7: Parts List
2.2 Parts List Number Describe Quantity Host (With Two Batteries) Charging Station Power Adapter Suction Port Parts User Manual Left And Right Brush Left*1/Right*1 HEPA Filter Front Roller Fluff Assembly Parts... -
Page 8: Product Operation
3. Product Operation 3.1 Preparation Before Using Take the robot out from pack box and take the dustbin out, lifts the dustbin, presses the dustbin switch, and tears off the sticker on cover. Put the dustbin back on the host. ... -
Page 9: Charging
Press the host switch button. Tips:After finished cleaning, it is recommended not to turn off the robot; keep the robot in charging station so that it can better perform in next time. 3.3 Charging Auto charge Press the recharge button on the robot panel or APP, the device will automatically search for the charging base to charge. -
Page 10: Switch
3.4 Switch/Pause Switch Make sure the power is on Press the button on robot&APP to start cleaning. Tips: If the robot is in sleep mode, press again to wake up the robot to enter function selection mode, press the button again then the machine will start working automatically. 3.5 Pause Press the button on robot&APP to pause cleaning. -
Page 11: Mode Selection
3.6 Mode Selection Mode selection Energy Saving Press the energy saving button on the robot Standard Mode Press the standard button on the robot Strong Mode Press the power button on the robot Press the MAX button on the robot Customize Press the customize button to customize the side brush, roller brush, volume, suction value... -
Page 12: Way Connecting Robot Towifi
2.Registered email account (read 3.Click to add the robot and agree with User Registration Agreement). 4.2 Way Connecting Robot to WIFI Reminder: Connect your mobile phone to an available WIFI network. Make sure the phone is connected to an available WIFI network indoors and has a good signal. 1.Turn on the power of the device, and the 2.Click the function button to enter the setting device enters the standby state. - Page 13 3.Click to use AP network configuration 4.Click OK, the device will prompt "WIFI connecting" 5.The robot prompts: the network is being configured Note: Do not configure the network while the device is in charging.
- Page 14 6.Fill in the WIFI password and click next 7. Click Settings to jump to the phone settings page, 8. The connection is successful, the binding click WIFI settings and select the wireless network is completed from host: adh-xxx Tips: If the connection fails, please restart the device and follow the steps to configure the network again.
-
Page 15: Unbinding Robot
4.3 Unbinding Robot On the device list page of APP, press and hold the device you want to unbind and swipe to the left. An unbind button will appear on the right side of the device. Click the Unbind button to unbind the device. ... -
Page 16: Control Robot
4.4 Control Robot Click to select the device you want to control in the device list to enter the device control page. -
Page 17: Maintenance
5. Maintenance Tips: Note: When cleaning and maintaining the device and accessories, please turn off the device and unplug the power supply of the charging station. 5.1 Side Brush Maintenance Remove the side brush and wipe with a clean cleaning cloth. 5.2 Roller Brush Maintenance Remove the dustbin, lift out the roller brush box, hold the two buttons with your hands, pull out the plug, and use the clean tool to cut the hair wrapped around the roller brush. -
Page 18: Dust Bin And Filters Maintenance
5.3 Dust Bin and Filters Maintenance Please clean the dustbin in time after each use. ① Remove the dustbin, press the button on the dustbin, after the bottom cover of dustbin pops up ② automatically, empty the dust inside. Remove the filter from the dustbin, wash the filter with clean water, and make sure it is completely dry ③... -
Page 19: Filter Screen Cleaning
5.4 Filter Screen Cleaning Remove the high-performance filter, wash with clean water, and place in a cool, ventilated place to dry, do not squeezing the high-performance filter. 5.5 Cliff Sensors and Charging Pins Cleaning Gently wipe the sensor and battery connector with a cleaning tool, as shown in the picture: Tips:Clean the charging pins in time when there is dust on the cover. -
Page 20: Replace The Accessories Regularly
Tips: When the device not use for a long time, please take out the battery and keep it properly. If the battery leaks, please remove the battery and wipe the battery. This device uses a long-life battery and does not need to be replaced frequently. If you need to ... -
Page 21: Technical Parameter
Technical Parameter Product name Commercial Robot Model X1000 Vacuum Cleaner Nominal voltage（V） DC 25.2V Motor power(W) 250W Charging voltage（V） Charging time ＜360min Battery capacity（mAh） 4450mAh Product size (mm) 376x372x365mm Maximum vacuum(kPa) 20kPa Net weight (Kg) 11.3 Working times(Min) 240Min Dust cup capacity(L)
