Summary of Contents for Ilife H50

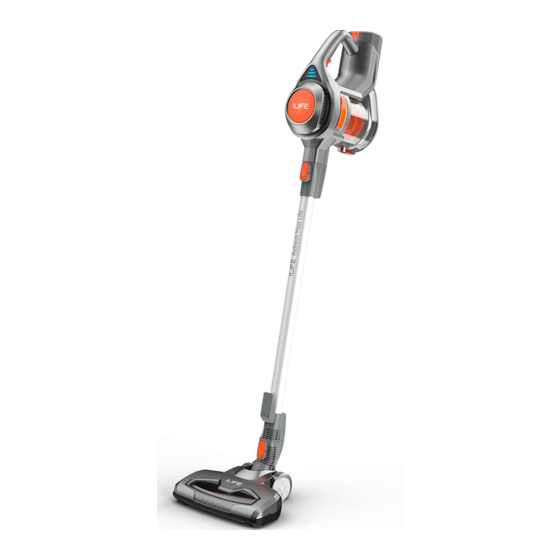

- Page 1 Cordless Stick Vacuum Cleaner User Manual English For more details, please Русский visit www.iliferobot.com...
- Page 3 Thank you for choosing ILIFE H50 Cordless stick vacuum cleaner ! You’ve joined millions of people to get the cleaning done in high efficiency. This manual helps you to keep your vacuum cleaner performing at its best. Please take a few moments to read through it.
-
Page 4: Table Of Contents
Contents 1. Important Safety Instructions ............1 2. Important Tips .....................5 2.1 Charge the Battery ..................5 2.2 Assembly and Storage .................6 3. Product Parts List ..................7 4. Product Parts Schematic ..............8 5. Product Parameters ................11 6. Product Introduction ................12 6.1 Aluminum-alloy Tube Installation ............12 6.2 Motorized Floor Head Installation ............12 6.3 2 in 1 Suction Nozzle Installation ............13 6.4 Operating .......................13... -
Page 5: Important Safety Instructions
Important Safety Instructions SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be followed. This appliance can be used by children aged from 8 year and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 6 Important Safety Instructions Do not use the appliance to pick up flammable liquid, matches, cigarette ends, hot ashes or any hot, burning or smoking objects. The hose should be checked regularly and must not be used if damaged. Take care when equipping accessories with rotating parts as this could cause entrapment.
- Page 7 Important Safety Instructions BATTERY SAFETY If the battery pack becomes exhausted quickly after fully charged, it should be removed from the product to avoid leakage. In the event of the battery pack leaking, do not allow any liquid to come into contact with the skin or eyes. If the contact has been made, wash the affected area with copious amounts of water and seek medical advice.
- Page 8 Important Safety Instructions WARNING Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. 1. Prevent unintentional starting. Ensure the switch is in the off position before connecting to the battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.
-
Page 9: Important Tips
Important Tips Charge the Battery 2 ways to charge the battery Charge the battery after putting it to the appliance. (We recommend this charging way since the LED Indicator on the appliance show charging status.) Charge the battery directly. For more details, please visit www.iliferobot.com... -
Page 10: Assembly And Storage
Important Tips Assembly and Storage 3 steps to assemble the stick vacuum cleaner: 1. Connect the motorized floor head to the end of aluminum alloy tube. 2. Connect the main body to the top of aluminum alloy tube. 3. Make sure there is no looseness at the connections and finish assembling. For more details, please visit www.iliferobot.com... -
Page 11: Product Parts List
Product Parts List 2 Ways to Store Hang on the wall mounting Attach the main body to the stick to bracket. stand on the floor. What’s in the box? Please check off all the accessories are in the package box. Name Quantity Main Body... -
Page 12: Product Parts Schematic
Product Parts Schematic Handle Battery Indicator Main Body Spare Bristle Roller Brush Release Button 2 in 1 Suction Nozzle Aluminum Alloy Tube Cleaning Brush Wall Mounting Bracket Motorized Floor Head For more details, please visit www.iliferobot.com... - Page 13 Product Parts Schematic Charging Jack Air Vent Switch Dustcup Dustcup Lid Release Button Battery Power Adapter For more details, please visit www.iliferobot.com...
- Page 14 Product Parts Schematic Hook for Main Body Release Button Rotating Wheel Detachable Fluff Brush Motorized Floor Head Built-in LED For more details, please visit www.iliferobot.com...
-
Page 15: Product Parameters
Product Parameters Color Gray Dimension 125*25*23.5 cm Net weight 2.4 kg Gross weight 4.3 kg Rated voltage 22.2V Vacuum cleaner Rated power 130W Dust cup capacity 1.2L Vacuum Min ~ 7Kpa Max ~ 10Kpa Usage time 20min ~ 40min Noise ≤78dB. -
Page 16: Product Introduction
Product Introduction Aluminum-alloy Tube Installation Push the aluminum-alloy tube end into the suction port of the main body in the horizontal direction. Make sure there is no looseness. The hearing of “click” indicates a successful installation. (as picture shows) To detach the aluminum-alloy tube, press the release button and pull the tube out. -
Page 17: In 1 Suction Nozzle Installation
Product Introduction 2 in 1 Suction Nozzle Installation Attach this tool to the end of aluminum-alloy tube or main body of vacuum cleaner directly, so you can handle most of the cleaning tasks in house and cars. Operating Step 1. Preparation Please make sure the battery power is sufficient before using it. -
Page 18: Maintenance
Maintenance Product Maintenance It’s suggested to do some maintenance to max its performance as well as prolong its service life. Main Body Maintenance (Handheld Part) Please stop the appliance before cleaning it. Scrub the appliance with water or neutral detergent. Make sure the cloth is wrung before the scrubbing and prevent the water from flowing into the inner machine. - Page 19 Maintenance Tips: 6 steps to clean the filter kit 1. Press the release button to open the dustcup lid. 2. Rotate the filter cover anti-clockwise and take it out downwards, with the filter element. 3. Take the filter element out of the filter cover. 4.
-
Page 20: Signal Hints
Maintenance Detachable Fluff Brush Cleaning Find the buckle on the left side of the floor head and open it up. Take out the fluff brush and remove the cords and hairs on it with scissors or the gifting cleaning brush in the package. Motorized Floor Head Cleaning It is recommended to clean once after every 4 to 5 times the use of the floor head. -
Page 21: Trouble & Resolution
Trouble & Resolution Common Failure Analysis and Treatment Symptom Possible Cause Solution Vacuum cleanner 1. Low battery 1.Charge the battery doesn’t work 2. The main body's air 2.Clean up the suction inlet vent is blocked Product suction 1. The dustcup and filter 1. -
Page 22: Problem Self-Checking Q&A
Problem Self-Checking Q&A Stop working Floor head Weak Suction Charging issues suddenly malfunction “Check if the product “Thermostat “Check if the “Check if the product is assembled protection triggered product is is assembled correctly. (please by motor assembled correctly. (Please assemble the overheating (cool correctly. - Page 23 Problem Self-checking Q&A Stop working Floor head Weak Suction Charging issues suddenly malfunction “Is the battery “Is the battery “The floor head turns “Hot when charging power enough? power enough? but the LED doesn’t the battery? (suction may be Please start it after work? LED lights but (recharge it after influenced by the...
-
Page 24: Disposal Information
Disposal Information Disposal The battery used with this device must not be disposed of in household waste. The device and the battery must be disposed of properly. The housing of the battery must never be opened, and must be disposed of as a whole. This product is subject to the provisions of European Directive 2019/19/EC. - Page 26 ILIFE Customer Service Email: support@iliferobot.com...
