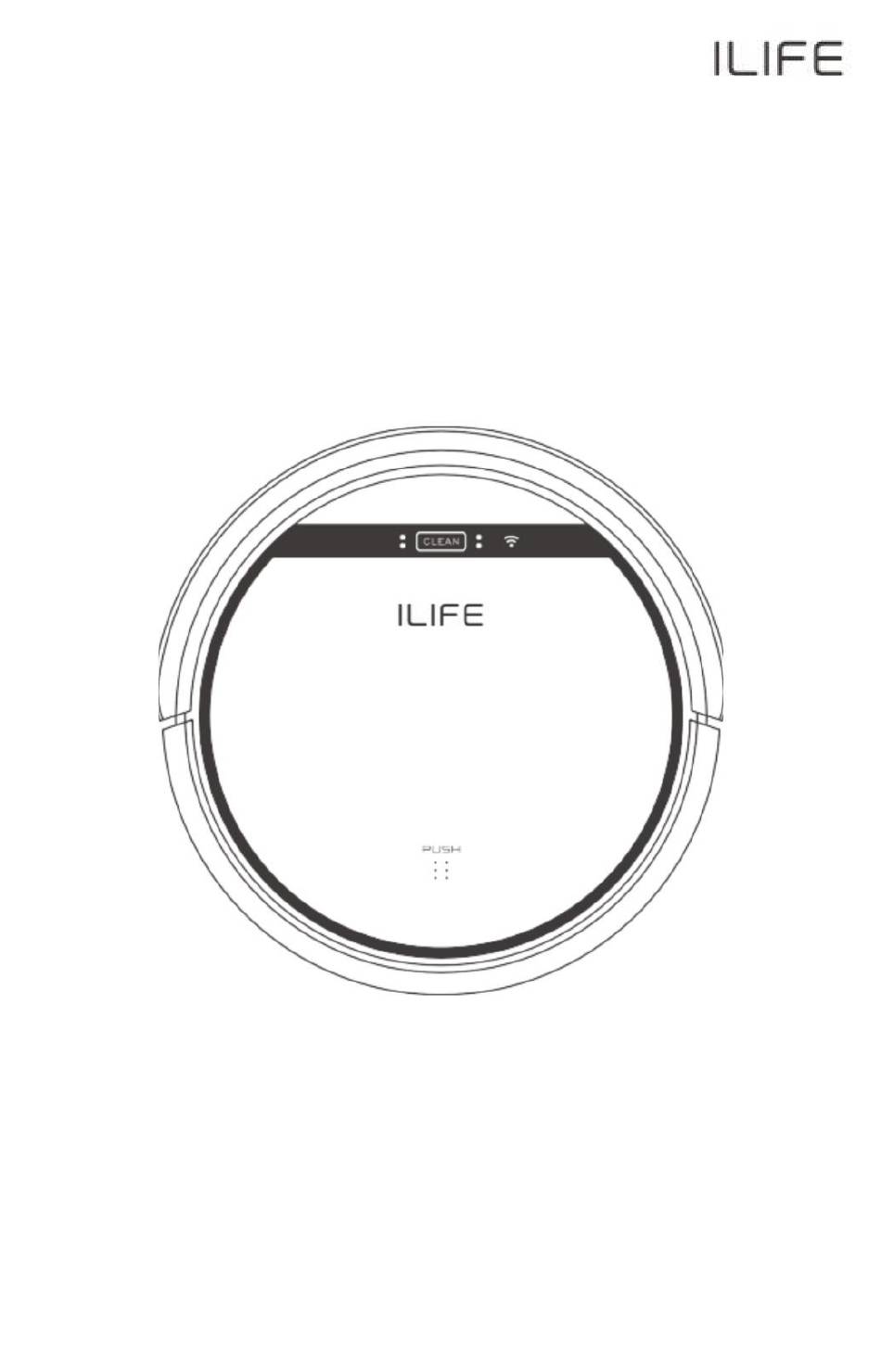

- Page 1 User Manual Robotic vacuum Cleaner Model: V5x ‘ www.iliferobot.com...
- Page 2 Empty V5x's dustbi n and clean its filter after every use. • Filter could not be washed by water. • Replace new Filter when you notice V5x vacuum gets weaker and pick • up less than before. Put charging dock against the wall and remove obstacles about •...
- Page 3 If the robot is not used for long time, please turn off the power switch • Note: Warning: The product contains electronic parts. DO NOT submerge V5x or spray it with water, clean with a dry cloth only. For More detailed information, please visit: wwww.iliferobot.com...
-
Page 4: Table Of Contents
Table of Contents Safety Instruction…………………………………………………………………………4 Product Composition…………………………………………………………………. 5 List of Accessories……………………………………………………………………… 5 Robot Anatomy…………………………………………………………………………. 6 Dustbin……………………………………………………………………………………….7 Charging Dock…………………………………………………………………………….7 Remote Control………………………………………………………………………….7 CLEAN Button Status………………………………………………………………….8 How to us……………………………………………………………………………………9 Remote Control Operation…………………………………………………………9 Getting Started………………………………………………………………………….10 Start/Pause/Sleep………………………………………………………………………11 Schedule…………………………………………………………………………………….12 Cleaning Mode………………………………………………………………………….13 App Download……………………………………………………………………………14 Maintenance………………………………………………………………………………15 Cleaning Side Brushes……………………………………………………………….15 Cleaning Dustbin and Filter………………………………………………………15 Cleaning Cliff Sensors And Auto Charging Pins…………………………15 Nose Wheel Clean Up………………………………………………………………16... -
Page 5: Safety Instruction
Safety Instructions Before using the robot, please read and follow the below safety instructions and precautions. Read through this user manu al carefully before using the robot. • Retain this user manu al. • Any operation that is not describe d in this user manu al •... - Page 6 11. Before using the robot, remove all fragile objects (textile, glass, lighting, etc.) and other objects that could get caught in the brushes or suction opening (cords, clothing, papers, drapes, blind, etc.) on the floor. 12.Do not place the robot where it could easily fall off (tables, chairs, etc.).
-
Page 7: Product Composition
Product Composition List of Accessories Q'ty Serial Number Description Main Body (battery included) Charging Dock Remote Control (battery not included) Power Adapter Water Tank Mop Cloth Cleaning Tool User Manual Extra Side Brushes High Performances Filter For More detailed information, please visit: wwww.iliferobot.com... -
Page 8: Robot Anatomy
• Product Composition Robot Anatomy Bumper Wi-Fi indicator CLEAN Button Middle Cover Nose Wheel Charging Pin Left Side Brush Right Side Brush Suck Passage Battery Cover Left Wheel Right Wheel Bottom Cover Middle Cover Dustbin/Water Tank Power Switch For More detailed information, please visit: wwww.iliferobot.com... -
Page 9: Dustbin
Product Composition Dustbin Primary Filter Dustbin High Performan ce Filter Filter Frame Charging Dock Signal Light Charging Port Power Supply Socket Charging Port Remote... -
Page 10: Clean Button Status
Product Composition CLEAN button status Robot Status Light status Charging The lower and upper indicators flash quickly. Charging finished All indicators are on. In selected mode The lower and upper indicators fade in and out. When robot in error The lower and upper indicators flash gradually. -
Page 11: How To Us
How to Use Remote control operating 1.“ “Starting up/Pause To start cleaning in selected mode. • To stop current cleaning cycle. • To change from sleep mode to selected mode. • Direction Buttons “ ” Button To increase minute and hour setting in schedule or clock •... - Page 12 “ ” Clock To enter clock mode when robot is in selected mode. • To confirm time setting. • “ " Home To return robot to charging dock. " ” Edge To clean along the edge of the walls. " ”...
-
Page 13: Getting Started
How to Use 1. Getting started 1>. Place charging dock on the floor and plug-in adapter. Signal light on charging dock will turn solid. Note: Put charging dock against a wall and remove obstacles about 1 meter on both sides and about 2meters in front. - Page 14 Extending battery life: A. Before first use, charge the robot overnight. When charging finishes, all lights will turn on. B. Always place the robot on the charging dock that is connected to power. C. If the robot will not be used for a long time, fully recharge it and turn off the power switch before storing it in a cool, dry place.
-
Page 15: Start/Pause/Sleep
How to Use 2. Start/Pause/Sleep Sleep mode: robot is not working, light at CLEAN button is off and power switch is on. Selected mode: robot is not working, blue light at CLEAN button fades in and out. Cleaning mode: robot is working, blue light at CLEAN button turns solid. -
Page 16: Schedule
How to Use 3.Schedule You can schedule to let the robot start cleaning from a certain time. Note: Remember to set the clock time and schedule once replace the remote-control battery. Once the clock time is set, any schedul i ng you have set will make robot work on the scheduled time. -
Page 17: Cleaning Mode
How to Use 4. Cleaning mode 1>. Auto cleaning The robot will clean a room automatically and adjust its cleaning according to the situation. Note: Press CLEAN button on robot or remote control to start Auto Cleaning. 2>. Spot cleaning Press Spot on the remote towards the robot when the robot is working. -
Page 18: Maintenance
Maintenance 1. Cleaning side brushes Clean the side brushes when it gets dirty and replace if it's are damaged. Note: Before replacing side brushes, check and match "L" "R" marks on both and bottom of robot. 2. Cleaning dustbin and filter Clean and empty dustbi n after each use, steps are as shown in below figures. -
Page 19: Nose Wheel Clean Up
Maintenance 4. Nose wheel clean up When there is foreign matter in nose wheel, it will affect the cleaning performance, please clean it follow the way below: Pull the wheel up vertically and clean it. Please note whether the gasket is off. It should be noted that whether the gasket is installed well after clean the nose wheel. -
Page 20: Trouble Shooting
Trouble shooting 1. Error code sheet When the robot meets with some routine troubles, it will remind you by beep. • Short tone Tone Cause Solution Wheels or side brushes check wheels or side brushes no work Cliff sensor or bumper Clean cliff sensor and sensor failure shake bumper slightly,... -
Page 21: Error Appearance
Error Likely Cause Solution appearance Remove hair and debris from side wheels. Circle Side wheels are jammed While reinstalling, push the wheels in around a and out to make sure they can rotate small area freely. Restart robot in another spot. Keep Cliff sensor is dirty Check cliff sensor lens. -
Page 22: Product Specifications
2. Error appearance Product Specifications Classification Item Detail Diameter 300mm Mechanical Height 81mm Specifications 2.24kg Weight 14.4V/22W Voltage/Power Electrical Li-ion Battery type Specifications Dustbin capacity 0.3L Auto Charging / Charging type Manual Charging Cleaning mode Auto, Spot, Edge, Daily Schedule Cleaning Charging time 4350 mins... -
Page 23: Annex Operation Manual
Annex-operation manual... - Page 24 For More detailed information, please visit: wwww.iliferobot.com...
