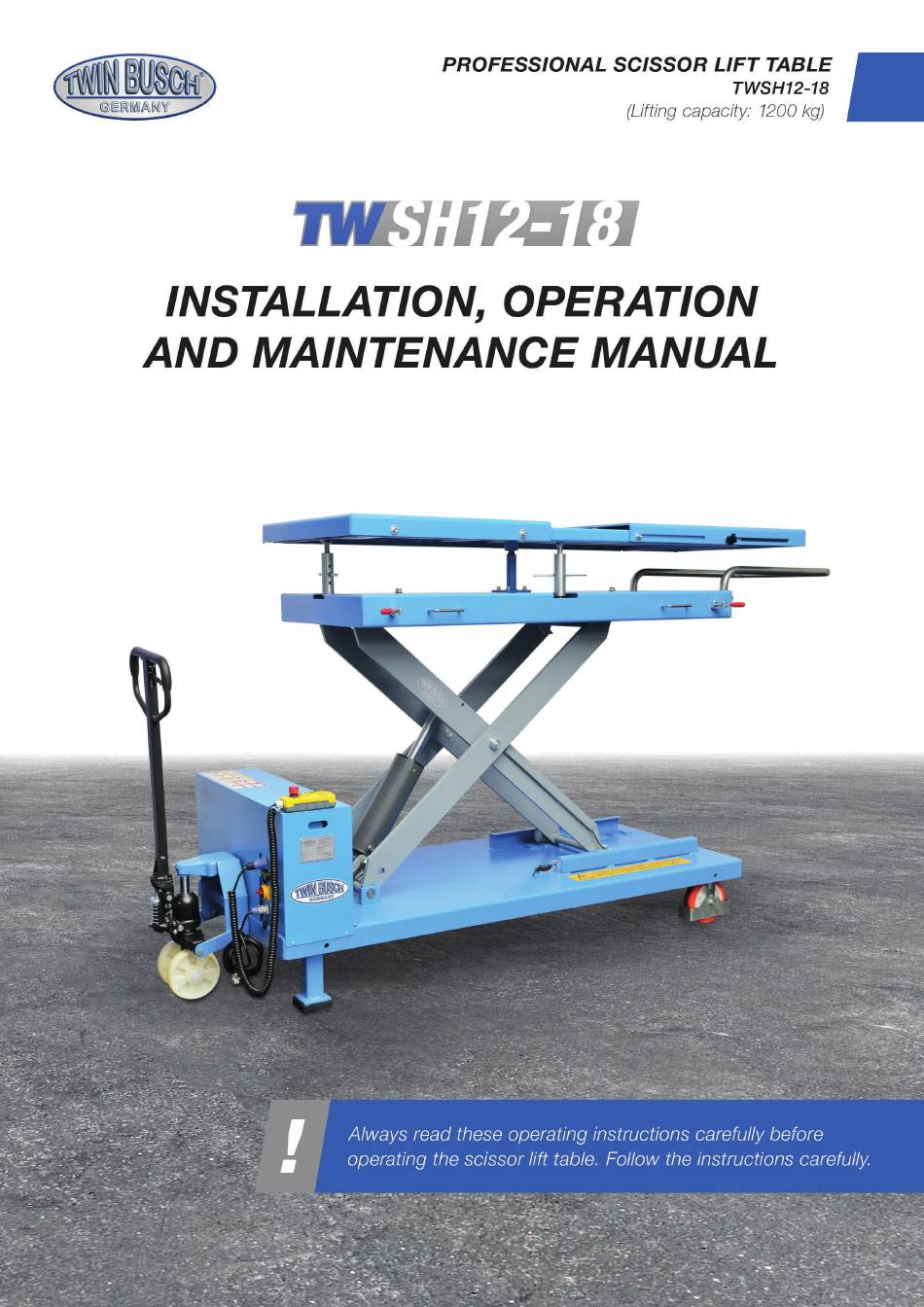

Manual Scissor lift table TWSH12-18 Table of contents General..............................1 Identification of the instructions for use ....................2 Technical data ............................2 Modification of the product ......................... 2 Safety-related information ........................2 5.1 Safety instructions ............................3 5.2 Warnings and symbols ..........................4 Conformity with the product ........................
Page 3
Manual Scissor lift table TWSH12-18 Further attachment: ⋅ EU Declaration of Conformity Important information: ASSEMBLY You can find the assembly video for this lift on YouTube: https://youtu.be/oFKhd5MqqEY or scan the QR code. TWSH12-18_Scissor_lift_table_Manual_uk_00_20240703.pdf Version: -00, 03.07.2024...
Page 4
24/7 Service Center: Our 24/7 Self-Service Center is a mobile website designed for self-diagnosis of issues with your Twin Busch lift. Here, we provide an extensive video collection covering a wide range of relevant topics for your Twin Busch lift, from fine-tuning and maintenance to component replacement.
Manual Scissor lift table TWSH12-18 1. General Professional scissor lift table , 1200 kg, with 230 V electro-hydraulic drive and 2-fold lifting speed, cable remote control, inclination platform with extension, suitable for daily professional workshop use. (Optional 8 adapter plates and 8 pick-ups are available). The professional scissor lift table can be moved as easily as a pallet truck.
Improper use also invalidates the CE certification and the validity of the certificate. If you require any changes, please contact your dealer or the expert staff at Twin Busch GmbH beforehand. 5. Safety-related information Read the operating instructions carefully before operating the scissor lift table. Keep the instructions for future reference.
Manual Scissor lift table TWSH12-18 Only lift within the rated load. Do not attempt to lift with excessive weight 5.1 Safety instructions ⋅ Recommended for indoor use only. ⋅ Read and understand the safety instructions before operating the scissor lift table.
Manual Scissor lift table TWSH12-18 5.2 Warnings and symbols All warnings are clearly visible to ensure that the user uses the appliance in a safe and appropriate manner. The warning signs must be kept clean and replaced if they are damaged or missing. Please read the signs carefully and memorise their meaning for future use.
Manual Scissor lift table TWSH12-18 6. Conformity with the product The scissor lift table TWSH12-18 is CE-certified and compliant with the Machinery Directive 2006/42/EC fulfilling the standards EN 1570-1:2011 + A1:2014 (look at: EU Declaration of Conformity, at the end of the user manual).
Manual Scissor lift table TWSH12-18 8.3 Assembly instructions 1) Remove the packaging film. Read and understand the operating instructions before proceeding. 2) Prepare two wooden slats with a thickness of more than 100 mm and a length of more than 700 mm.
Page 12
Manual Scissor lift table TWSH12-18 A Hex socket cylinder head screw M6x12 B Steel ball C Flat washer D14 D Locking nut M10 E Hex socket button head screw M10x25 1 Lifting axle 2 Connection of lifting axle and mounting plate...
Page 13
Manual Scissor lift table TWSH12-18 6) Connect the lifting axle to the mounting plate with 2 fitting screws, washers and nuts. (E) 7) Now carefully tighten the screw on the lifting pin. 8) Remove the heavy-duty castors and supports from the transport frame.
Manual Scissor lift table TWSH12-18 12) Now connect the power supply to the operating element with the plug connectors on the lift table and establish the power supply. 13) Fill the oil tank with hydraulic oil. Only use clean and fresh oil! The scissor lift table must be fully lowered before changing or topping up the hydraulic oil.
Manual Scissor lift table TWSH12-18 9. Commissioning 9.1 Safety precautions a) If the safety devices are defective or show abnormalities, the scissor lift table must not be put into operation under any circumstances! b) Check that all connections of the hydraulic lines are tight and functional. If there are no leaks, the lifting process can be started.
Manual Scissor lift table TWSH12-18 9.3 Lifting and lowering process flow chart Lifting process Lowering process Start Start Press the "DOWN" button Press the "UP" button The lifting The lifting platform lowers platform lifts 9.4 Operating instructions 9.4.1 Lifting process 1.
Page 17
Manual Scissor lift table TWSH12-18 Description Function Hand-held control unit Control raising and lowering movement The lower platform can be horizontally moved within 40mm by releasing the grips. When there is a slight deviation to align the fixture, release the grip and the lower...
10. Troubleshooting Attention: Do not hesitate to contact the expert staff at Twin Busch GmbH if you are unable to rectify a fault yourself. We will be happy to help you solve the problem. In this case, please document the fault and send us pictures and a precise description of the fault so that we can identify and rectify the cause as quickly as possible.
Manual Scissor lift table TWSH12-18 11. Maintenance Regular maintenance of your lift will ensure a long and safe service life. Suggestions for maintenance intervals and the activities to be carried out are listed below. How often you service your lift depends on the ambient conditions, the degree of soiling and, of course, the stress and load on the lift.
If the lift malfunctions, simple faults may be the cause. If the cause of the fault cannot be found, please contact the expert Twin Busch GmbH team. Never attempt to carry out repairs yourself, especially on safety equipment or electrical system components.
Manual Scissor lift table TWSH12-18 13.2 Foundation requirements and working area Requirements for the concrete: - Concrete C20/25 according to DIN 1045-2 (previous designation: DIN 1045 concrete B25). - The floor must be level and have a flatness of less than 5 mm/m.
Page 34
Manual Scissor lift table TWSH12-18 420560050 Sliding block MS12AC-A2-B4 410562291 Middle shaft of the support bracket MS12AC-A2-B5 410562301 Downside shaft of the cylinder MS12AC-A2-B7 410562311 Upside shaft of the cylinder MS12AC-A2-B8 612059205B Mechanical safety block MS12AC-A2-B9 614059206B Connecting rod of the lock assembly...
Page 39
