Summary of Contents for twin busch TWSH10-18
-
Page 2: Table Of Contents

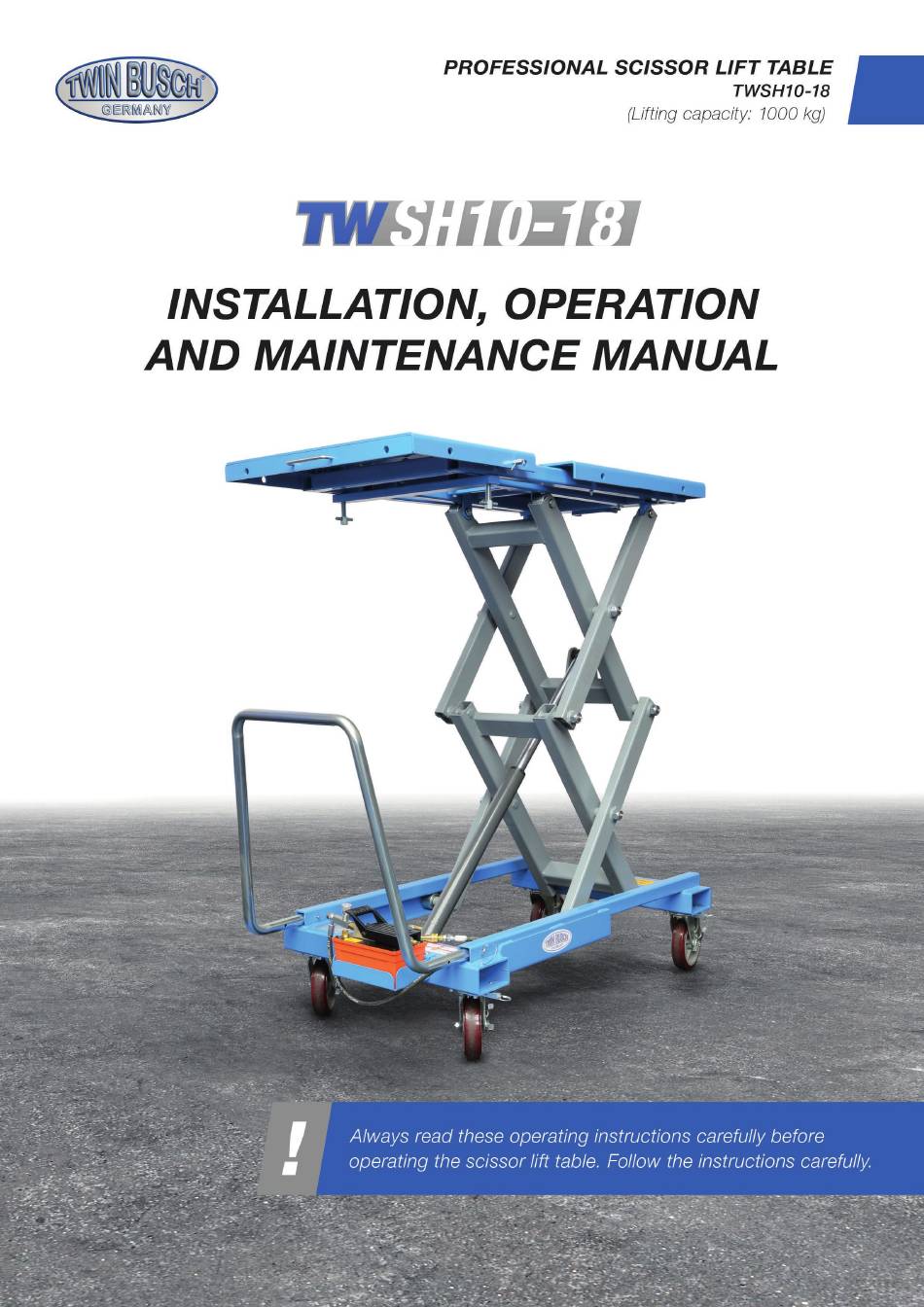

Manual Scissor lift table TWSH10-18 Table of contents General..............................1 Identification of the instructions for use ....................1 Technical data ............................2 Modification of the product ......................... 2 Safety-related information ........................2 5.1 Safety instructions ............................3 5.2 Warnings and symbols ..........................4 Conformity with the product ........................ - Page 3 Manual Scissor lift table TWSH10-18 Important information: ASSEMBLY You can find the assembly video for this lift on YouTube: https://youtu.be/gX7dlGzo4dc or scan the QR code. PRODUCT PRESENTATION You can find the product presentation video for this lift on YouTube: https://youtu.be/dq9JI2kVa50 or scan the QR code.
- Page 4 24/7 Service Center: Our 24/7 Self-Service Center is a mobile website designed for self-diagnosis of issues with your Twin Busch lift. Here, we provide an extensive video collection covering a wide range of relevant topics for your Twin Busch lift, from fine-tuning and maintenance to component replacement.
-
Page 5: General
Manual Scissor lift table TWSH10-18 1. General Professional scissor lift table 1000 kg, with pneumatic-hydraulic -drive and 5-fold lifting and lowering speed, platform with extension and inclination angle adjustable in longitudinal direction as well as optionally available 8 adapter plates and 8 pick-ups, is suitable for daily professional workshop use. The professional scissor lift table can be moved as easily as a pallet truck. -
Page 6: Technical Data
Improper use also invalidates the CE certification and the validity of the certificate. If you require any changes, please contact your dealer or the expert staff at Twin Busch GmbH beforehand. 5. Safety-related information Read the operating instructions carefully before operating the scissor lift table. Keep the instructions for future reference. -
Page 7: Safety Instructions
Manual Scissor lift table TWSH10-18 5.1 Safety instructions ⋅ Recommended for indoor use only. ⋅ Read and understand the safety instructions before operating the scissor lift table. ⋅ Only use the scissor lift table if the foundation is stable and can bear the load. -
Page 8: Warnings And Symbols
Manual Scissor lift table TWSH10-18 5.2 Warnings and symbols All warnings are clearly visible to ensure that the user uses the appliance in a safe and appropriate manner. The warning signs must be kept clean and replaced if they are damaged or missing. Please read the signs carefully and memorise their meaning for future use. -
Page 9: Conformity With The Product
6. Conformity with the product The scissor lift table TWSH10-18 is CE-certified and is compliant with the Machinery Directive 2006/42/EC and fulfilling the standards EN 1570-1:2011 + A1:2014 (look at: EU Declaration of Conformity, at the end of the user manual). -
Page 10: Assembly Of The Scissor Lift Table
Manual Scissor lift table TWSH10-18 8. Assembly of the scissor lift table 8.1 Before installation Tools and equipment required: ⋅ Allen key (8 mm) ⋅ Lifting tool (e.g. forklift truck) ⋅ Hydraulic oil HM 46 Soil conditions Only use this scissor lift table on a surface that is stable, level, dry, non-slippery and capable of bearing the load. -
Page 11: Assembly Instructions
Manual Scissor lift table TWSH10-18 8.3 Assembly instructions 1) Remove the packaging film. Look out for loosely packed parts. Read and understand the operating instructions before proceeding. 2) Loosen the fastening screws of the transport frame (8 mm Allen key). -
Page 12: Checkpoints According To The Structure
Manual Scissor lift table TWSH10-18 6) Use the direction pin attached to the castor to transfer the direction of movement. 7) Remove the foot pump from its holder and place it in a suitable location with sufficient distance between the lifting platform and the operator. -
Page 13: Commissioning
Manual Scissor lift table TWSH10-18 9. Commissioning 9.1 Safety precautions a) If the safety devices are defective or show abnormalities, the scissor lift table must not be put into operation under any circumstances! b) Check that all connections of the hydraulic lines are tight and functional. If there are no leaks, the lifting process can be started. -
Page 14: Lifting And Lowering Process Flow Chart
Manual Scissor lift table TWSH10-18 9.3 Lifting and lowering process flow chart Lifting process Lowering process Start Start Release brake on foot rollers Locking the castors Press the "RELEASE" side of Press the "PUMP" side of the foot the foot pedal... -
Page 15: Troubleshooting
10. Troubleshooting Attention: Do not hesitate to contact the expert staff at Twin Busch GmbH if you are unable to rectify a fault yourself. We will be happy to help you solve the problem. In this case, please document the fault and send us pictures and a precise description of the fault so that we can identify and rectify the cause as quickly as possible. -
Page 16: Maintenance
Manual Scissor lift table TWSH10-18 11. Maintenance Regular maintenance of your lift will ensure a long and safe service life. Suggestions for maintenance intervals and the activities to be carried out are listed below. How often you service your lift depends on the ambient conditions, the degree of soiling and, of course, the stress and load on the lift. -
Page 17: Behavior In The Event Of An Incident
If the lift malfunctions, simple faults may be the cause. If the cause of the fault cannot be found, please contact the expert Twin Busch GmbH team. Never attempt to carry out repairs yourself, especially on safety equipment or electrical system components. -
Page 18: Foundation Requirements And Working Area
Manual Scissor lift table TWSH10-18 13.2 Foundation requirements and working area Requirements for the concrete: - Concrete C20/25 according to DIN 1045-2 (previous designation: DIN 1045 concrete B25). - The floor must be level and have a flatness of less than 5 mm/m. -
Page 19: Hydraulic System
Manual Scissor lift table TWSH10-18 13.3 Hydraulic system 1. Air supply 2. Pneumatic hydraulic pump 3. Throttle valve 4. Composite hose fitting 5. Oil cylinder Code Description Specification Quantity 310101015 Quick straight air hose fitting KLC8-02 615028024 Pneumatic pump BQ-DA5,P=30MPa... -
Page 20: Exploded Mechanical Drawings And Parts List
Manual Scissor lift table TWSH10-18 13.4 Exploded mechanical drawings and parts list Code Description Specification Quantity 204301009 Circlip D25-GB894_1 204301011 Circlip D30-GB894_1 615062107 Base frame assembly MS10-A01 615062108 Support arm assembly MS10-A02 615062109 Platform assembly MS10-A03 410562191 DOWN Shaft of the cylinder... - Page 21 Manual Scissor lift table TWSH10-18 Code Description Specification Quantity 208109015 Brake 208109015 206105002 Single steel ball pin BLPF8_55 204201005 Spring washer D10-GB93 204101006 Flat washer D10-GB95 310101010 Straight fitting G1_4-G1_4 330305004 Throttle valve DVG-R-DN8 G1/4-1A 202109041 Hex socket cylinder head screw...
- Page 22 Manual Scissor lift table TWSH10-18 Code Description Specification Quantity 205101096 Bushing 2520_SF-1 205101012 Bushing 2530_SF-1 204301009 Circlip D25-GB894_1 203103011 Hex tightening nut M24-GB889 208106001 Straight oil cup M8X1-GB7940 614059103 Support arm A MS10-A02-B01 614059104 Support arm B MS10-A02-B02 614059105 Support arm C...
- Page 23 Manual Scissor lift table TWSH10-18 Code Description Specification Quantity 204101009 Flat washer D16-GB95 204101011 Flat washer D20-GB95 203103007 Hex tightening nut M10-GB889 202208007 Hex socket cylinder head shoulder screw M10X25-GB5281 201102072 Hexa head full swivel screw M10X80-GB5783 203101009 Hex nut...
- Page 24 Manual Scissor lift table TWSH10-18 Code Description Specification Quantity 614059112 Platform A MS10-A03-B03 614059110 Base frame assembly of the platform MS10-A03-B04 410562673 Hinge MS10-A03-B05 410562683 Guiding tube MS10-A03-B06 410562211 Guiding rod MS10-A03-B07 410562221 Spacing sheath MS10-A03-B08 410562231 Guiding eccentric wheel...
- Page 25 Conversions and major repairs Kind Date / Name...
- Page 26 Notes...
